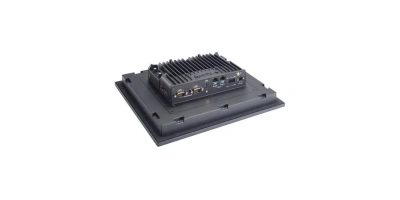

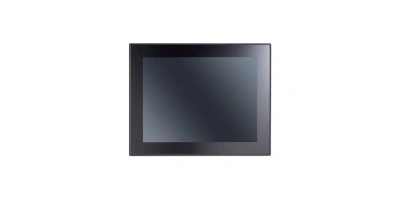

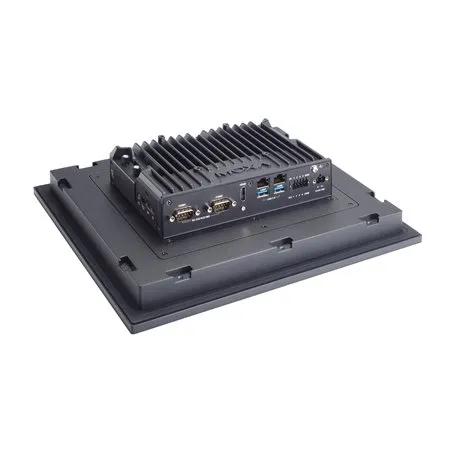

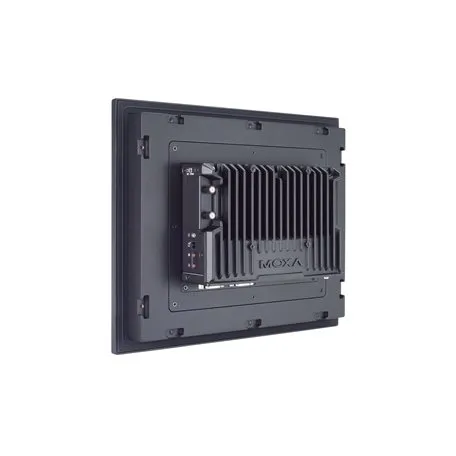

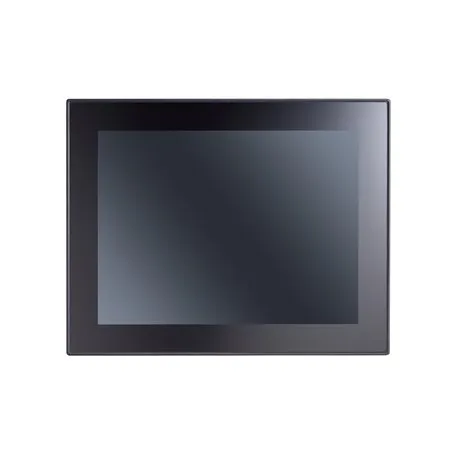

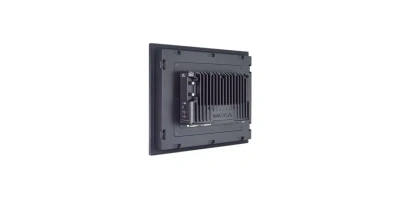

MPC-3120-E4-LB-T: 12.1-inch panel computer with Intel Atom® x6425E quad-core 2.0 GHz processor, 8 GB RAM, 400-nit multi-touch PCAP LCD, 2 LAN, 2 serial, 2 USB 3.0, 12/24 VDC power input, IP66 front panel, -30 to 60°C operating temperature

CPU

E2 models: Intel Atom® Elkhart Lake dual-core x6211E 1.30 GHz E4 models: Intel Atom® Elkhart Lake quad-core x6425E 2.0 GHz

Graphics Controller

Intel® HD Graphics

System Memory Pre-installed

8 GB DDR4 2400 MHz (32 GB max)

System Memory Slot

SODIMM DDR4 2400 slots x 1

Supported OS

Windows 10 IoT Enterprise LTSC 2021 Windows 11 Professional (64-bit) Debian 11 (kernel 5.10)

Ubuntu 22.04 LTS (kernel 5.1x) RHEL 9 (kernel 5.14)

Storage Slot

CFast slot x 1

SD slots x 1, SD 3.0 interface (SDHC/SDXC)

Ethernet Ports

Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2

Serial Ports

RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)

USB 3.0

USB 3.0 hosts x 2, type-A connectors

Digital Input

DIs x 4 (with isolation protection)

Digital Output

DOs x 4 (with isolation protection)

System

Power x 1

LAN

2 per port (10/100/1000 Mbps)

Panel Size

12.1 in (viewable image)

Aspect Ratio

4:3

Active Display Area

245.76 (H) x 184.32 (V) mm

Contrast Ratio

1000:1 (typ.)

Light Intensity (Brightness)

MPC-3120-E2/E4-T: 1000 nits

MPC-3120-E2/E4-LB-T: 400 nits

Max. No. of Colors

262k, 16.7M (8-bit/color)

Panel Type

AAS

Pixel Pitch (RGB)

0.240 (H) x 0.240 (V) mm

Pixels

1024 x 768

Response Time

25 ms

Viewing Angles

178°/178°

Touch Type

Projective Capacitive touchscreen (PCAP)

Touch Support Points

4 points

Glove Support

Yes

Baudrate

50 bps to 115.2 kbps

Data Bits

5, 6, 7, 8

Flow Control

RTS/CTS, XON/XOFF, Automatic Data Direction Control (ADDC) for RS-485, RTS Toggle (RS-232 only)

Parity

None, Even, Odd, Space, Mark

Stop Bits

1, 1.5, 2

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

Data+, Data-, GND

RS-485-4w

Tx+, Tx-, Rx+, Rx-, GND

Input Voltage

12/24 VDC

Power Consumption

48 W

(max, including full USB loading)

Housing

Metal

IP Rating

IP66, front IP20, rear

Dimensions

315 x 220 x 75.7 mm (12.40 x 8.66 x 2.98 in)

Weight

2,900 g (6.39 lb)

Operating Temperature

-30 to 60°C (-22 to 140°F)

Storage Temperature (package included)

-40 to 70°C (-40 to 158°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

EMC

EN 55032/35

EMI

CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV

IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m

IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV

IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV

Environmental Testing

IEC 60068-2-1, DNV-CG-0339

IEC 60068-2-1, IEC 60945

IEC 60068-2-2, DNV-CG-0339

IEC 60068-2-2, IEC 60945

IEC 60068-2-30, DNV-CG-0339

Hazardous Locations

ATEX Zone 2 Class I Division 2 IECEx Zone 2

Maritime

DNV-CG-0339, IEC 60945, IACS E10

Safety

IEC 62368-1

UL 62368-1

Shock

IEC 60068-2-27

Vibration

IEC 60068-2-6, DNV-CG-0339, IEC 60945

IEC 60068-2-64, DNV-CG-0339

Green Product

RoHS, CRoHS, WEEE

Model Name

Panel

CPU

RAM

Touchscreen

LAN

Serial

DI/DO

Power Input

IP Rating

Operating Temp.

MPC-3120-E2-T

12.1" (4:3)

1000 nits

Intel

Atom®

x6211E

8 GB

PCAP

2

2

4/4

12/24 VDC

IP66 (front),

IP20 (rear)

-30 to 60°C

MPC-3120-E2-LB-T

12.1" (4:3)

400 nits

Intel

Atom®

x6211E

8 GB

PCAP

2

2

4/4

12/24 VDC

IP66 (front),

IP20 (rear)

-30 to 60°C

MPC-3120-E4-T

12.1" (4:3)

1000 nits

Intel

Atom®

x6425E

8 GB

PCAP

2

2

4/4

12/24 VDC

IP66 (front),

IP20 (rear)

-30 to 60°C

MPC-3120-E4-LB-T

12.1" (4:3)

400 nits

Intel

Atom®

x6425E

8 GB

PCAP

2

2

4/4

12/24 VDC

IP66 (front),

IP20 (rear)

-30 to 60°C
