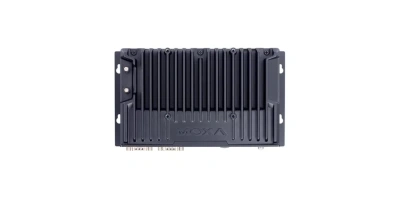

BXP-A101-E2-T: Box computer with Intel Atom® x6211E processor, 2 LAN ports, 2 serial ports, 4 DIs, 4 DOs, 2 USB 3.0 ports, 1 HDMI port, 1 CFast slot, 1 SD slot, 12/24 VDC power input, -30 to 70°C operating temperature

CPU

BXP-A101-E2-T: Intel Atom® x6211E processor (dual-core, 1.5 M cache, 1.30 GHz) BXP-A101-E4-T: Intel Atom® x6425E processor (quad-core, 1.5 M cache, 2.00 GHz)

System Memory Slot

SODIMM DDR4 slots x 1, up to 32 GB max.

System Memory Pre-installed

8 GB DDR4

Storage Slot

CFast slot x 1 (SATAIII interface)

SD slots x 1, SD 3.0 interface (SDHC/SDXC)

Expansion Slots

mPCIe slots x 1

Supported OS

Windows images and drivers supported:

- Windows 10 IoT Enterprise LTSC 2021 64-bit

Linux image supported:

- Debian 12 (kernel 6.10)

Linux drivers supported:

- Debian 12 (kernel 6.10)

- Ubuntu 22.04 LTS (kernel 5.15)

- RHEL 9 (kernel 5.14)

Graphics Controller

Intel® UHD Graphics

Ethernet Ports

Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2

Serial Ports

RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)

USB 3.0

USB 3.0 hosts x 2, type-A connectors

Digital Input

DIs x 4

Digital Output

DOs x 4

TPM

TPM v2.0

Video Output

HDMI 1.2a x 1, (type-A connector)

SIM Format

Nano

Number of SIMs

1

Buttons

Power button

Magnetic Isolation Protection

1.5 kV (built-in)

Baudrate

50 bps to 115.2 kbps

Connector

DB9 male

Data Bits

5, 6, 7, 8

Parity

None, Even, Odd, Space, Mark

Stop Bits

1, 1.5, 2

Flow Control

RTS/CTS, XON/XOFF, Automatic Data Direction Control (ADDC) for RS-485, RTS Toggle (RS-232 only)

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

Data+, Data-, GND

RS-485-4w

Tx+, Tx-, Rx+, Rx-, GND

Connector

Spring-type Euroblock terminal

Sensor Type

Dry contact

Wet contact (NPN)

Dry Contact

Logic 0: Close to GND Logic 1: Open

Wet Contact (COM to DI)

Logic 0: 10 to 30 VDC

Logic 1: 3 VDC max

Connector

Spring-type Euroblock terminal

I/O Type

Sink

Current Rating

200 mA per channel

Voltage

Logic 0: 200mA max. per channel, sink

Logic 1: 24 VDC (typ.), 30 VDC (max.), open collector

System

Power x 1

LAN

2 per port (10/100/1000 Mbps)

Input Voltage

12/24 VDC

Power Connector

Screw-fastened Euroblock terminal

Power Consumption

50 W

Housing

Metal

IP Rating

IP20

Dimensions

207 x 116.1 x 44.5 mm (8.14 x 4.57 x 1.75 in)

Installation

Wall mounting

Weight

1,225 g (2.7 lb)

Operating Temperature

-30 to 70°C (-22 to 158°F)

Storage Temperature

-40 to 70°C (-40 to 158°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

EMC

EN 55032/35

EMI

CISPR 32, FCC Part 15B Class A BSMI

EMS

IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV

IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m

IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV

IEC 61000-4-5 Surge: Power: 0.5 kV, Signal: 1 kV

IEC 61000-4-6 CS: 3 V

IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz

Safety

BSMI

IEC 62368-1

UL 62368-1

Shock

IEC 60068-2-27

Vibration

IEC 60068-2-64

Package Drop Test

ISTA 1A

Package Vibration Test

ISTA 1A

Green Product

RoHS, CRoHS, WEEE

Time Source

Built-in RTC (real-time clock) with lithium-battery backup

Automatic Reboot Trigger

Built-in WDT

Time

1,581,038 hrs

Standards

Telcordia (Bellcore), GB
