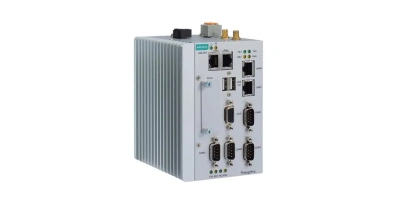

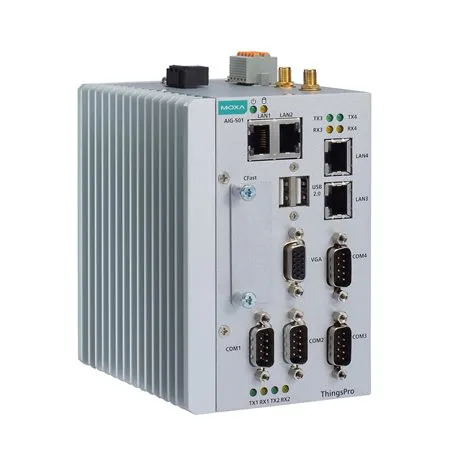

AIG-501-T-AZU-LX: 4-port Modbus to Azure advanced IIoT gateways with Intel Atom® quad-core 1.91 GHz processor, Azure IoT Edge, -40 to 70°C operating temperature

Giá: Liên hệ

AIG-501-T-AZU-LX: 4-port Modbus to Azure advanced IIoT gateways with Intel Atom® quad-core 1.91 GHz processor, Azure IoT Edge, -40 to 70°C operating temperature của hãng Moxa hiện đang được BKAII phân phối rộng rãi tại thị trường Việt Nam. AIG-501-T-AZU-LX được thiết kế theo tiêu chuẩn công nghiệp, nhỏ gọn, dễ dàng lấy được tín hiệu về PLC, máy tính, vi xử lý, máy tính nhúng.Sản phẩm hiện đang được sử dụng trong các bài toán M2M, IoT của các lĩnh vực: Điện lực, khí tượng thủy văn, giao thông thông minh, hệ thống kiểm soát an ninh,….

Máy tính công nghiệp

Tính năng của sản phẩm:

Supports generic MQTT client
Supports MQTT connection with built-in device SDKs for Azure/AWS cloud
Supports Modbus RTU/ASCII/TCP master/client
Supports Modbus TCP server
Supports Azure IoT Edge
Supports easy device-provisioning with the ThingsPro Proxy utility
Supports data buffering using store and forward and datalogger
Provides robust OTA function to prevent system failure during software upgrades
Equipped with Secure Boot to prevent malicious software-injection attacks
-40 to 70°C operating temperature range
LTE Cat. 4 US, EU, and APAC models available

Thông số kỹ thuật của sản phẩm:

Computer

CPU	Intel Atom® E3845 processor (2M cache, 1.91 GHz)
DRAM	4 GB DDR3L
Storage Pre-installed	32 GB CFast eMMC
Pre-installed OS	Linux Debian 9, Kernel 4.9
Graphics Controller	Intel® HD Graphics
No. of Tags Supported	4096

Computer Interface

Ethernet Ports	Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4
Serial Ports	RS-232/422/485 ports x 4 (software-selectable, DB9 male connector)
Digital Input	DIs x 4
Digital Output	DOs x 4
USB 2.0	USB 2.0 hosts x 2, type-A connectors
Wi-Fi Antenna Connector	RP-SMA x 2 (AIG-501-T-AZU-LX)
Cellular Antenna Connector	SMA x 2 (excluding AIG-501-T-AZU-LX)
GPS Antenna Connector	SMA x 1 (excluding AIG-501-T-AZU-LX)
Expansion Slots	mPCIe slots x 1 (AIG-501-T-AZU-LX)

SIM Format	Mini
Number of SIMs	1
Video Output	VGA x 1, 15-pin D-sub connector (female)
Buttons	Reboot Reset to factory default
TPM	TPM v2.0

Ethernet Interface

10/100/1000BaseT(X) Ports (RJ45 connector)	4
Magnetic Isolation Protection	1.5 kV (built-in)

Ethernet Software Features

Industrial Protocols

Modbus TCP Client (Master) / Server (Slave) Generic MQTT

Azure IoT Device AWS IoT Core Azure IoT Edge Sparkplug B Client OPC UA Server FTP/SFTP

Configuration Options

Web Console (HTTP/HTTPS) ThingsPro Proxy Utility

Time Management

NTP Server/Client GPS

Serial Interface

No. of Ports	4
Connector	DB9 male
Baudrate	300 bps to 115.2 kbps
Data Bits	5, 6, 7, 8
Stop Bits	1, 2
Parity	None Even Odd Space Mark
Flow Control	RTS/CTS, XON/XOFF

Serial Signals

RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w	Data+, Data-, GND

Serial Software Features

Industrial Protocols

Modbus RTU/ASCII Master

Digital Inputs

Connector	Spring-type Euroblock terminal
Sensor Type	Dry contact
Dry Contact	Off: open On: short to GND
Isolation	None

Digital Outputs

Connector	Spring-type Euroblock terminal
Current Rating	10 mA (max.) total for all channels
I/O Type	Sink
Isolation	None

Cellular Interface

Cellular Standards	LTE Cat. 4
Band Options (US)	LTE Band 2 (1900 MHz) / LTE Band 5 (850 MHz) / LTE Band 12 (700 MHz) / LTE Band 13 (700 MHz) / LTE Band 14 (700 MHz) / LTE Band 66 (1700 MHz) / LTE Band 71 (600 MHz) UMTS/HSPA Band 2 (1900 MHz) / Band 5 (850 MHz) Carrier Approval: Verizon, AT&T Note: LTE Band 71 (600 MHz). is not included in the selectable antenna support range. Please contact Moxa if you need to use this band.
Band Options (EU)	LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 7 (2600 MHz) / LTE Band 8 (900 MHz) / LTE Band 20 (800 MHz) UMTS/HSPA Band 1 (2100 MHz) / Band 3 (1900 MHz) / Band 8 (900 MHz)
Band Option (APAC)	LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 5 (850 MHz) / LTE Band 8 (900 MHz) / LTE Band 28 (700 MHz) UMTS/HSPA Band 1 (2100 MHz) / Band 5 (850 MHz) / Band 8 (900 MHz)

GPS Interface

Receiver Types	GPS/GLONASS/BeiDou/Galileo/QZSS
Accuracy	Position: 2.0 m @CEP50
Time to First Fix (TTFF)	Hot start: 1.1 s Warm start: 22.1 s Cold start: 29.9 s
Sensitivity	Acquisition: -147 dBm Cold starts: -145 dBm Tracking: -160 dBm
Update Rate	1 Hz

Azure IoT Edge

Versions Supported

v1.4.33

Authentication Methods

Manual / Connection String DPS / Symmetric Encryption DPS / X.509 Certificate

DPS / TPM

Azure Direct Methods

Reboot

Software Upgrade Remote API Invocation

Azure Module Twin	Device Configuration
Moxa Functions	Custom Payload Message Group

Sparkplug B Client

Versions Supported	v2.2
Node Commands (NCMD)	Next Broker Reboot Rebirth
Moxa Functions	Store and Forward Custom Payload

OPC UA Server

No. of Client Connections	2
Security	Sign and encrypt with policies Basic128Rsa15, Basic256, and Basic256Sha256
User Authentication and Authorization	Username/password
Supported Profiles	OPC UA v1.02
No. of Supported Tags	1000

Generic MQTT Client

Versions Supported	v3.1.1 v3.1
QoS Levels	0, 1, 2
Authentication Methods	Username and password
Secure Transmission	TLS 1.0 TLS 1.1 TLS 1.2
Native Capabilities	Keep Alive Retain Message Clean Session Will and Testament
Moxa Functions	Store and Forward Custom Payload Remote API Invocation

Azure IoT Device

Connection Protocols Supported

MQTT

MQTT over WebSockets AMQP

AMQP over WebSockets

Authentication Methods

Symmetric Key

X.509 Certificate

Azure Direct Methods

Reboot

Software Upgrade Remote API Invocation

AWS IoT Core

QoS Levels	0,1
Authentication Methods	X.509 Certificate Private Key Trusted Root CA

Native Capabilities

Keep Alive

Moxa Functions

Store and Forward Custom Payload

Commands Invokable Via Jobs

Reboot

Software Upgrade Remote API Invocation

Modbus RTU/ASCII

Mode	Client (Master)
Functions Supported	1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Commands	256/port
Max. No of Connected Devices	124

Modbus TCP

Mode	Client (Master), Server (Slave)
Functions Supported	1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Server Connections	64
Max. No. of Client Connections	4
Max. No. of Commands	4096

LED Indicators

System

Power x 1

Storage x 1

LAN

2 per port (10/100/1000 Mbps)

Serial

2 per port (Tx, Rx)

Power Parameters

Input Voltage	12 to 36 VDC
Input Current	2.5 A @ 12 VDC
Power Consumption	30 W (max.)
Power Connector	Screw-fastened Euroblock terminal

Reliability

Automatic Reboot Trigger

External WDT (watchdog timer)

Physical Characteristics

Housing	Metal
IP Rating	IP20
Dimensions	132 x 122 x 87 mm (5.2 x 4.81 x 3.43 in)
Weight	1,340 g (2.95 lb)
Installation	DIN-rail mounting (with optional kit) Wall mounting (with optional kit)

Environmental Limits

Operating Temperature	-40 to 70°C (-40 to 158°F)
Storage Temperature (package included)	-40 to 75°C (-40 to 167°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Shock	IEC 60068-2-27
Vibration	IEC 60068-2-64

Standards and Certifications

EMC	EN 55032/35 EN 61000-6-2/-6-4
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
Safety	UL 62368-1 EN 62368-1
Radio	NCC RCM
Carrier Approvals	AT&T Verizon PTCRB
RED	EN 300 328 EN 301 489-1/17/19/52 EN 301 511 EN 301 893 EN 301 908-1 EN 303 413 EN 62311
Hazardous Locations	Class I Division 2 ATEX
Green Product	RoHS, CRoHS, WEEE

MTBF

Time	AIG-501-T-US-AZU-LX, AIG-501-T-EU-AZU-LX, AIG-501-T-AP-AZU-LX: 441,032 hrs AIG-501-T-AZU-LX: 453,637 hrs
Standards	Telcordia (Bellcore) Standard TR/SR

Mã đặt hàng:

Model Name

CPU

RAM

Storage

TPM

mPCIe Slot

Operating Temperature

AIG-501-T-AZU-LX

1.91 GHz

4 GB

32 GB

Built-in

Reserved for Wi-Fi module

-40 to 70°C

AIG-501-T-US-AZU-LX

1.91 GHz

4 GB

32 GB

Built-in

US region LTE module preinstalled

-40 to 70°C

AIG-501-T-EU-AZU-LX

1.91 GHz

4 GB

32 GB

Built-in

Europe region LTE module preinstalled

-40 to 70°C

AIG-501-T-AP-AZU-LX

1.91 GHz

4 GB

32 GB

Built-in

APAC region LTE module preinstalled

-40 to 70°C

Xem thêm:

"BKAII - Thiết bị truyền thông TỐT nhất với giá CẠNH TRANH nhất!"

Downloads moxa-aig-501-series-datasheet-v2-0.pdf
