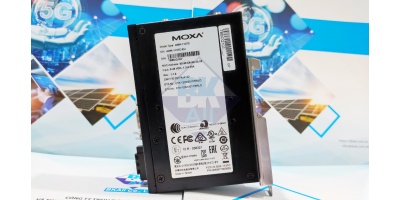

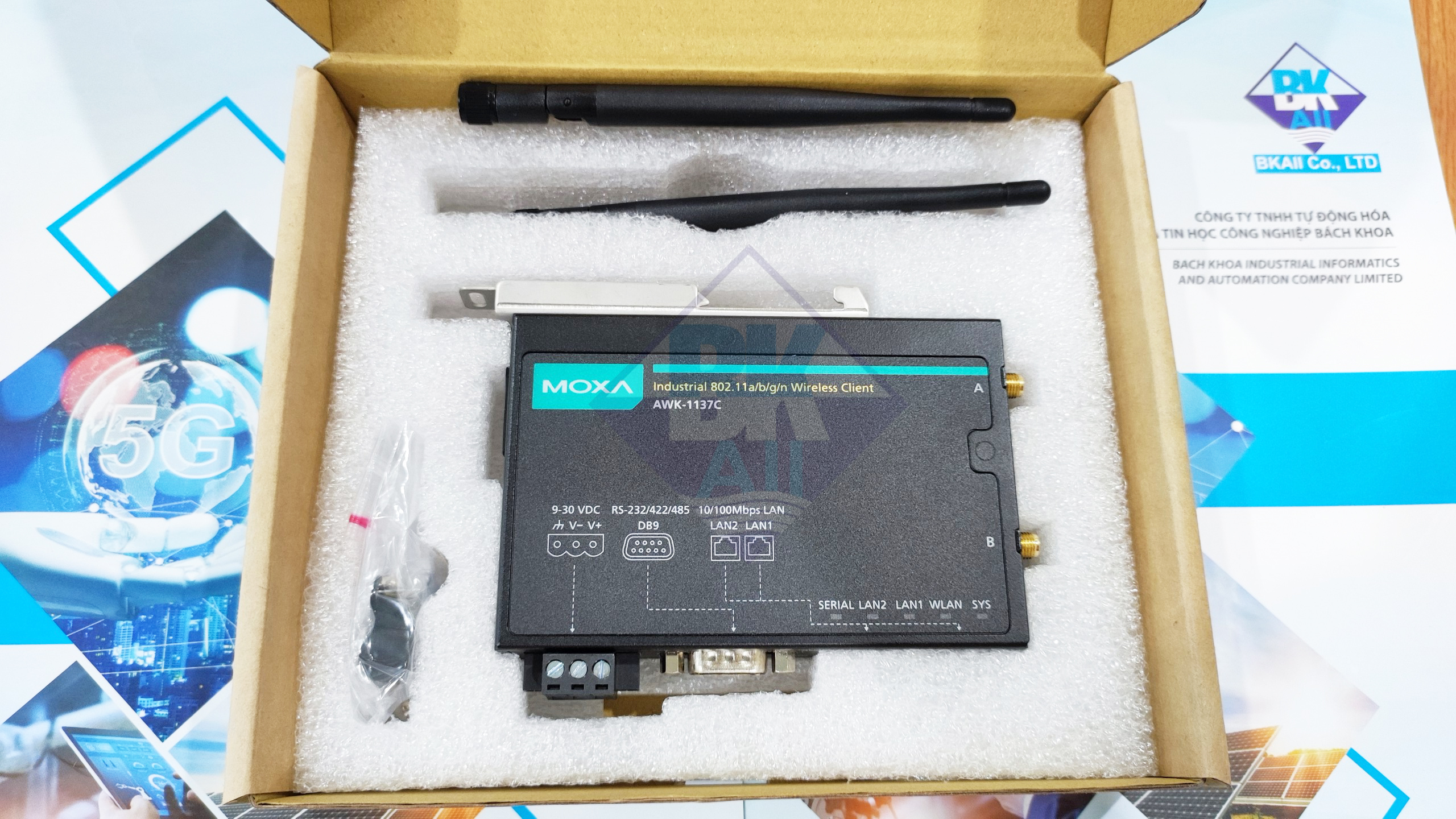

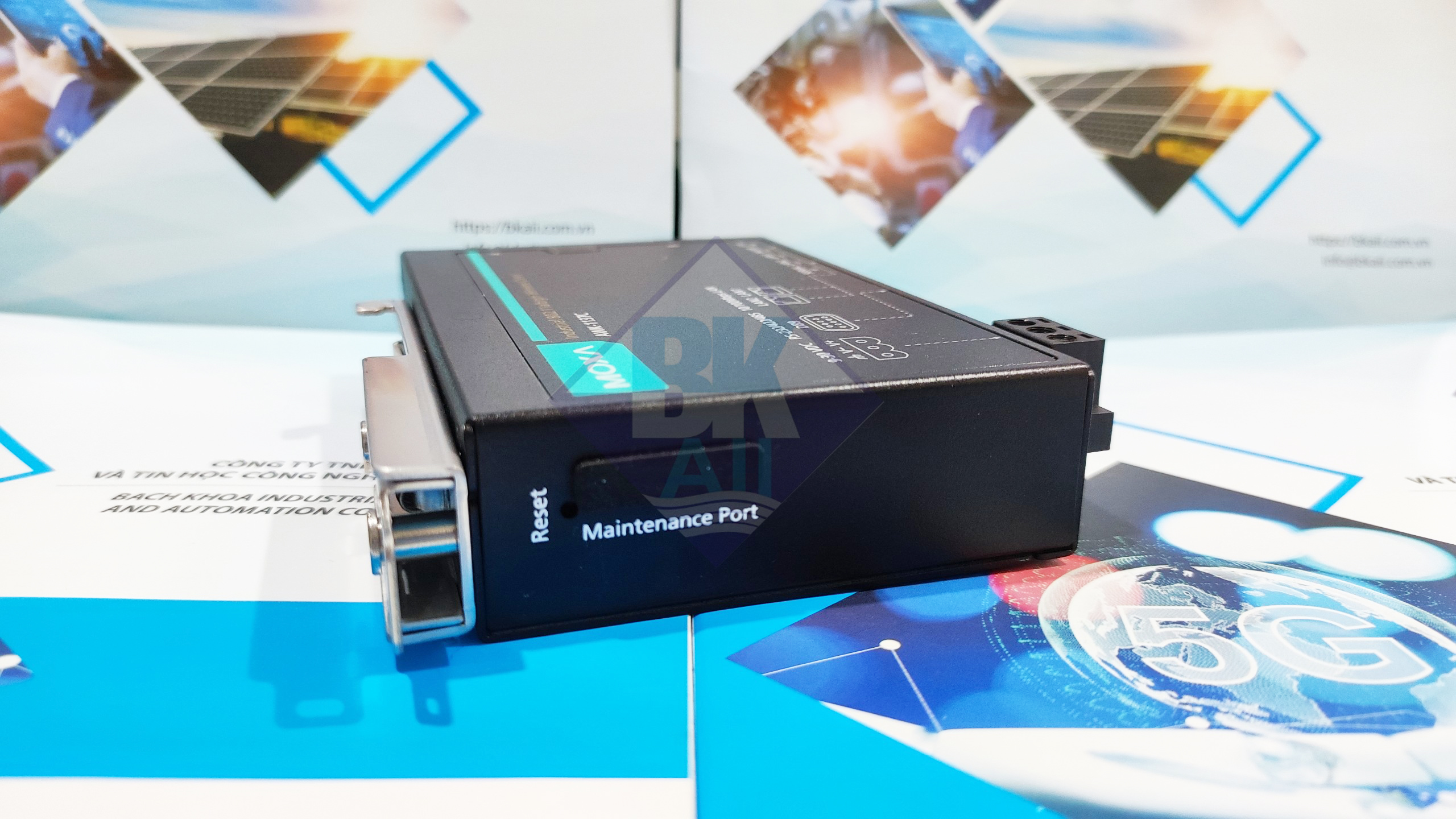

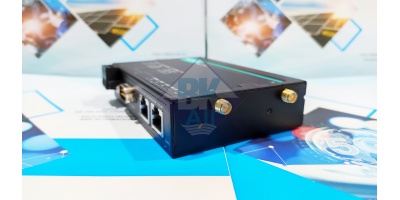

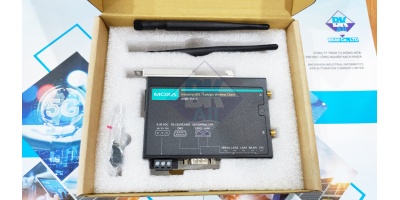

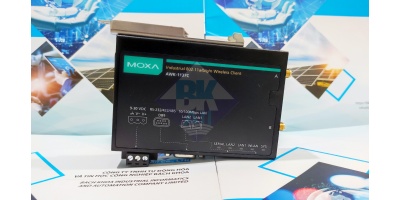

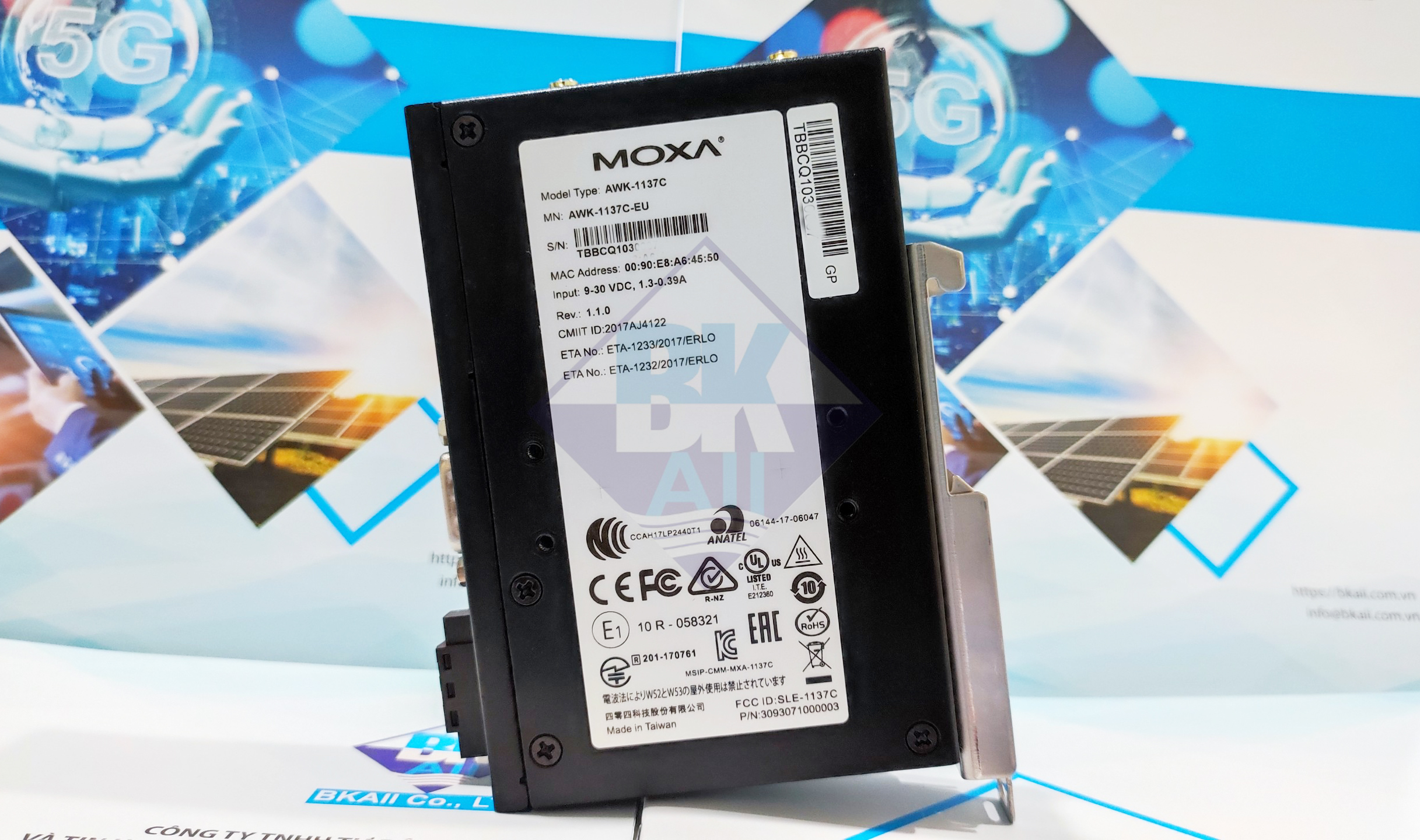

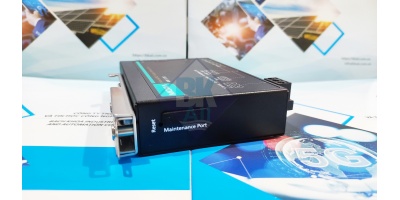

AWK-1137C: Industrial 802.11a/b/g/n wireless client

Giá: Liên hệ

Nút thêm vào giỏ hàng sẽ xuất hiện sau khi bạn chọn các giá trị ở trên

AWK-1137C Industrial 802.11a/b/g/n wireless client của hãng Moxa-Taiwan hiện đang được BKAII phân phối rộng rãi tại thị trường Việt Nam. AWK-1137C được thiết kế theo tiêu chuẩn công nghiệp, nhỏ gọn, dễ dàng lấy được tín hiệu về PLC, máy tính, vi xử lý, máy tính nhúng... Sản phẩm hiện đang được sử dụng trong các bài toán M2M, IoT của các lĩnh vực: Điện lực, khí tượng thủy văn, giao thông thông minh, hệ thống kiểm soát an ninh…

Tính năng của sản phẩm:

IEEE 802.11a/b/g/n compliant client

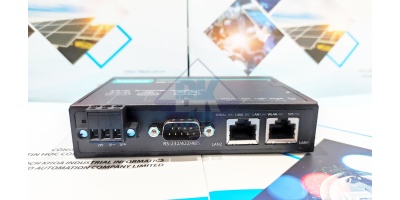

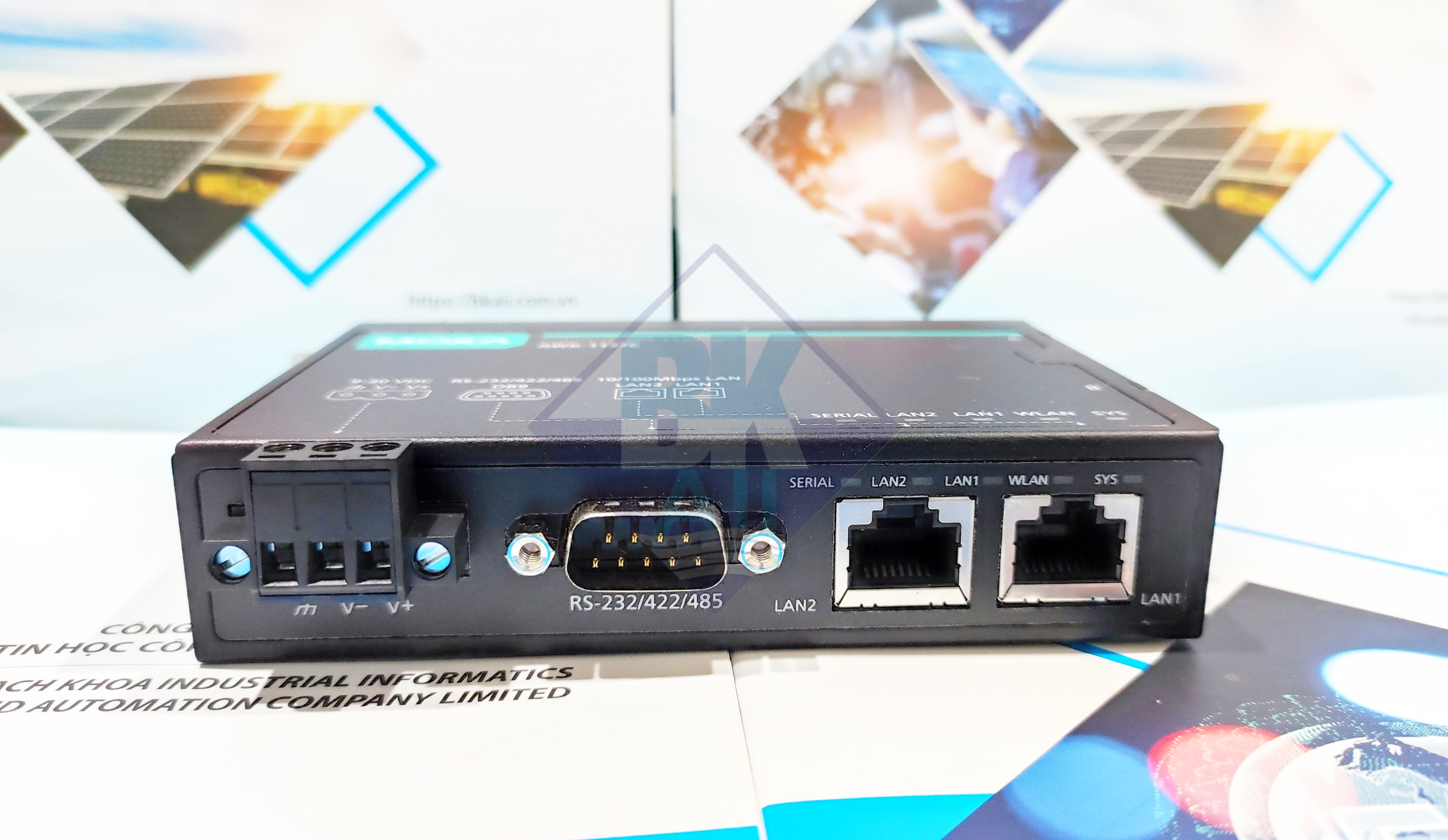

Comprehensive interfaces with one serial port and two Ethernet LAN ports
Client-based millisecond-level Turbo Roaming
2x2 MIMO future-proof technology
Integrated robust antenna and power isolation
Anti-vibration design
Compact size for your industrial applications
Easy setup and deployment with AeroMag

Thông số kỹ thuật của sản phẩm:


WLAN Standards	802.11a/b/g/n 802.11i Wireless Security
Modulation Type	DSSS MIMO-OFDM OFDM
Frequency Band for EU (20 MHz operating channels)	2.412 to 2.472 GHz (13 channels) 5.180 to 5.240 GHz (4 channels) 5.260 to 5.320 GHz (4 channels) 5.500 to 5.700 GHz (11 channels)
Frequency Band for EU (20 MHz operating channels)	2.412 to 2.472 GHz (13 channels) 5.180 to 5.240 GHz (4 channels) 5.260 to 5.320 GHz (4 channels) 5.500 to 5.700 GHz (11 channels)


Frequency Band for JP (20 MHz operating channels)	2.412 to 2.484 GHz (14 channels) 5.180 to 5.240 GHz (4 channels) 5.260 to 5.320 GHz (4 channels) 5.500 to 5.700 GHz (11 channels)
Wireless Security	WEP encryption (64-bit and 128-bit) WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES) WPA/WPA2-Personal
Transmission Rate	802.11b: 1 to 11 Mbps 802.11a/g: 6 to 54 Mbps 802.11n: 6.5 to 300 Mbps
Transmitter Power for 802.11a	23±1.5 dBm @ 6 to 24 Mbps 21±1.5 dBm @ 36 Mbps 20±1.5 dBm @ 48 Mbps 18±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11b	26±1.5 dBm @ 1 Mbps 26±1.5 dBm @ 2 Mbps 26±1.5 dBm @ 5.5 Mbps 25±1.5 dBm @ 11 Mbps
Transmitter Power for 802.11g	23±1.5 dBm @ 6 to 24 Mbps 22±1.5 dBm @ 36 Mbps 20±1.5 dBm @ 48 Mbps 19±1.5 dBm @ 54 Mbps

Transmitter Power for 802.11n (2.4 GHz)	23±1.5 dBm @ MCS0/8 20 MHz 17±1.5 dBm @ MCS7/15 20 MHz 23±1.5 dBm @ MCS0/8 40 MHz 17±1.5 dBm @ MCS7/15 40 MHz
Transmitter Power for 802.11n (5 GHz)	23±1.5 dBm @ MCS0/8 20 MHz 18±1.5 dBm @ MCS7/15 20 MHz 23±1.5 dBm @ MCS0/8 40 MHz 18±1.5 dBm @ MCS7/15 40 MHz
Management	DHCP Server/Client, HTTP, IPv4, LLDP, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, UDP, Proxy ARP, Wireless Search Utility, VLAN, MXview, MXconfig
Security	HTTPS/SSL, RADIUS, SSH
Time Management	NTP Client, SNTP Client
Connector	DB9 male
Serial Standards	RS-232, RS-422/485, RS-232/422/485

Operation Modes	Disabled, Real COM, RFC2217, TCP Client, TCP Server, UDP
Data Bits Stop Bits	5, 6, 7, 8 1, 1.5, 2
Baudrate	75 bps to 921.6 kbps
Serial Data Log	256 KB
Housing Dimensions IP Rating Weight Installation Protection Operating Temperature Input Voltage	Metal 77.1 x 115.5 x 26 mm (3.035 x 4.55 x 1.024 in) IP30 470 g (1.03 lb) DIN-rail mounting (optional), Wall mounting TN-5916-WV-CT-T: PCB conformal coating -40 to 75°C (-40 to 167°F) 9 to 30 VDC

RS-232	TxD, RxD, RTS, CTS, DCD, GND, DTR, DSR
RS-422	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w	Data+, Data-, GND
RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND


Event Type Media	Firewall event, System event, VPN event Local storage, SNMP Trap, Syslog server
Console Port

Operating Temperature	Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
