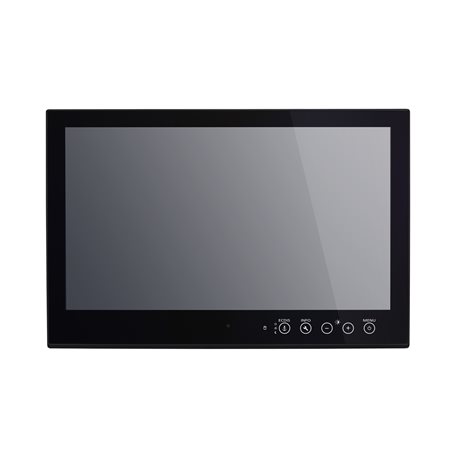

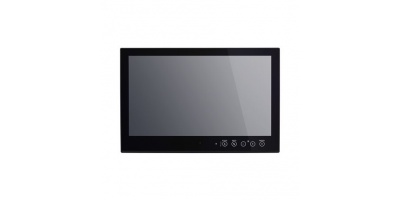

MPC-2240 Series: 24-inch ECDIS color calibrated, fanless panel computers

CPU

Graphics Controller

System Memory Pre-installed

System Memory Slot

Pre-installed OS

Supported OS

Storage Slot

MPC-2240X/2240Z: Intel® Celeron® Processor 1047UE (2M Cache, 1.40 GHz)
MPC-2247X/2247Z: Intel® Core™ i7-3517UE Processor (4M Cache, up to 2.80 GHz)

Intel© HD Graphics 520 (integrated)

4 GB DDR3/DDR3L

SODIMM DDR3/DDR3L slot x 1

OS is pre-installed

Windows 7 Pro for Embedded Systems

Windows Embedded Standard 7 (WS7P) 64-bit
Windows 10 Pro 64-bit

Windows 10 Embedded IOT Ent 2016 LTSB High End EPKEA
Windows 10 Embedded IOT Ent 2016 LTSB Value EPKEA

2.5-inch HDD/SSD slots x 2

Ethernet Ports

Serial Ports

USB 2.0

Audio Input/Output

Video Output

NMEA Port

Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2

RS-232/422/485 ports x 2, software selectable (DB9 male)

USB 2.0 hosts x 4, type-A connectors

Line in x 1, Line out x 1, 3.5 mm phone jack

DVI-D x 1, 29-pin DVI-D connectors (female)

VGA x 1, 15-pin D-sub connector (female)

NMEA 0183 ports x 8 (terminal block)

Touch Type

Touch Support Points

Baudrate

Data Bits

Stop Bits

Flow Control

NMEA Interface

MPC-2240Z/2247Z: Capacitive Touch (PCAP)
MPC-2240X/2247X: None

MPC-2240Z/2247Z: 4 points

50 bps to 115.2 kbps

5, 6, 7, 8

1, 1.5, 2

RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)

Serial Standards:

NMEA 0183: RS-422
NMEA 2000: CAN bus (available on request)
Baudrate: 4800 bps
Data Bits: 8
Handshake: None
Optical Isolation Protection: 3 kV
Parity: None
Serial Standards: NMEA 0183v2 (NMEA 2000 available on request)
Stop Bits: 1, 1.5, 2
Voltage Differential: -6 V to +6 V (maximal differential level)

RS-232

RS-422

RS-485-2w

RS-485-4w

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Tx+, Tx-, Rx+, Rx-, GND

Data+, Data-, GND

Tx+, Tx-, Rx+, Rx-, GND

Input Voltage

100 to 240 VAC, 18 to 34 VDC

IP Rating

Dimensions

Weight

IP54, front
IP20, rear

595 x 393 x 75 mm (23.44 x 15.48 x 2.95 in)

12,400 g (27.34 lb)

Active Display Area

Max. No. of Colors

Panel Size

Pixel Pitch (RGB)

Aspect Ratio

531.36 (H) x 98.89 (V) mm

16.7M (8-bit/color)

24-inch viewable image

0.276 (H) x 0.276 (V) mm

16:9

EMC

EMI

EMS

Environmental Testing

EN 55032/24

CISPR 32, FCC Part 15B Class A

IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF

IEC 60068-2-1, DNVGL-CG-0339
IEC 60068-2-2, DNVGL-CG-0339
IEC 60068-2-2, IEC 60945
IEC 60068-2-30, IEC 60945

System

LAN

Power x 1

2 per port (10/100/1000 Mbps)

Storage Temperature (package included)

Ambient Relative Humidity

-20 to 60°C (-4 to 140°F)

5 to 95% (non-condensing)
