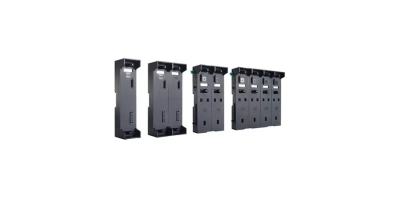

65M-BMIO04-CT-T: Backplane modules for modular programmable IIN controllers

Power Consumption

65M-BMIO02: 0.093 A @ 12 VDC

65M-BMIO04: 0.117 A @ 12 VDC

Slots

65M-BMPW01-CT-T: 1 (for power module) 65M-BMPW02-CT-T: 2 (for power modules)

65M-BMCM01-CT-T: 1 (for communication module) 65M-BMCM02-CT-T: 2 (for communication modules) 65M-BMCPU01-CT-T: 1 (for CPU module)

65M-BMCPU02-CT-T: 2 (for CPU modules) 65M-BMIO02-CT-T: 2 (for IO modules) 65M-BMIO04-CT-T: 4 (for IO modules)

Housing

Plastic

Dimensions

65M-BMPW01-CT-T/BMCM01-CT-T/BMCPU01-CT-T:

43 x 177 x 45.5 mm (1.69 x 6.97 x 1.79 in)

65M-BMPW02-CT-T/BMCM02-CT-T/BMCPU02-CT-T/BMIO02-CT-T:

86 x 177 x 45.5 mm (3.39 x 6.97 x 1.79 in)

65M-BMIO04-CT-T:

172 x 177 x 45.5 mm (6.77 x 6.97 x 1.79 in)

Weight

65M-BMPW01-CT-T: 162 g (0.36 lb)

65M-BMPW02-CT-T: 320 g (0.71 lb)

65M-BMCM01-CT-T: 169 g (0.37 lb)

65M-BMCM02-CT-T: 330 g (0.73 lb)

65M-BMCPU01-CT-T: 170 g (0.37 lb)

65M-BMCPU02-CT-T: 325 g (0.72 lb)

65M-BMIO02-CT-T: 205 g (0.45 lb)

65M-BMIO04-CT-T: 395 g (0.87 lb)

Installation

DIN-rail mounting

Rack mounting (with optional kit)

Operating Temperature

-40 to 75°C (-40 to 167°F)

Note: Proper airflow is required in an environment with temperature > 65°C

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Altitude

2000 m1

EMC

EN 55032/35

EN 61000-6-2/-6-4

EMI

CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV

IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m

IEC 61000-4-4 EFT: Power: (DC) 1 kV; Signal: 1 kV

IEC 61000-4-5 Surge: Power: (DC) 0.5 kV L-N, 1 kV L/N-PE; Signal: 1 kV; IO: 0.5 kV

IEC 61000-4-6 CS: Power: 10 Vrms; Signal: 10 Vrms

IEC 61000-4-8 PFMF: 30 A/m

Safety

UL 61010-1

UL 61010-2-201

Shock

IEC 60068-2-27

Half sine wave; acceleration: 15 g; time: 11 ms

Vibration

IEC 60068-2-6

DIN-rail mounted:

7 mm peak-peak (p-p) (2 to 8.42 Hz), 1 g (8.42 to 150 Hz) Rack mounted (with optional kit):

7 mm peak-peak (p-p) (2 to 8.42 Hz), 0.5 g (8.42 to 150 Hz)

Package Vibration Test

ISTA 1A

Package Drop Test

ISTA 1A

Time

65M-BMPW01-CT-T: 1,130,092,735 hrs

65M-BMPW02-CT-T: 1,382,748,219 hrs

65M-BMCM01-CT-T: 1,856,744,727 hrs

65M-BMCM02-CT-T: 1,856,744,727 hrs

65M-BMCPU01-CT-T: 5,032,783,357 hrs

65M-BMCPU02-CT-T: 3,554,206,267 hrs

65M-BMIO02-CT-T: 6,140,939 hrs

65M-BMIO04-CT-T: 6,124,471 hrs

Standards

Telcordia Standard SR-332
