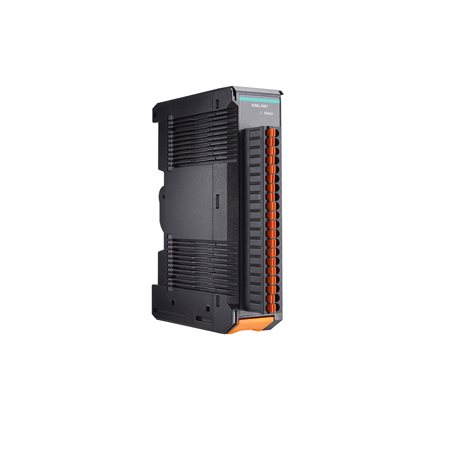

45ML-5401: Module for the ioThinx 4530 Series, 4 serial ports (RS-232/422/485 3-in-1), -20 to 60°C operating temperature

Isolation

3k VDC or 2k Vrms

Connector

Spring-type Euroblock terminal

No. of Ports

4

Serial Standards

RS-232, RS-422, RS-485-2w

Baudrate

45ML-5401: 300, 600, 1200, 1800, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps

Data Bits

7, 8

Stop Bits

1, 2

Parity

Even, None, Odd

Flow Control

RTS/CTS (RS-232 only), XON/XOFF

Pull High/Low Resistor for RS-485

10 kilo-ohm

RS-485 Data Direction Control

ADDC (automatic data direction control)

RS-232

TxD, RxD, RTS, CTS, GND

RS-422

Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

Data+, Data-, GND

System Power

74.1 mA @ 12 VDC

37.05 mA @ 24 VDC

Field Power

140.4 mA @ 12 VDC

59.8 mA @ 24 VDC

Housing

Plastic

Dimensions

26.4 x 99 x 65.5 mm (1.04 x 3.9 x 2.58 in)

Weight

115 g (0.254 lb)

Installation

DIN-rail mounting

Wiring

Serial cable, 18 to 24 AWG

Strip Length

Serial cable, 9 to 10 mm

Operating Temperature

45ML-5401-T: -40 to 75°C (-40 to 167°F)

45ML-5401: -20 to 60°C (-4 to 140°F)

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Altitude

Up to 2000 m1

EMC

EN 55032/35

EMI

CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV

IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m

IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV

IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV

IEC 61000-4-6 CS: 3 V

IEC 61000-4-8 PFMF

Shock

IEC 60068-2-27

Vibration

IEC 60068-2-6

Safety

EN 61010-2-201

Hazardous Locations

ATEX

Class I Division 2

Green Product

RoHS, CRoHS, WEEE

Time

916,671 hrs

Standards

Telcordia SR332
