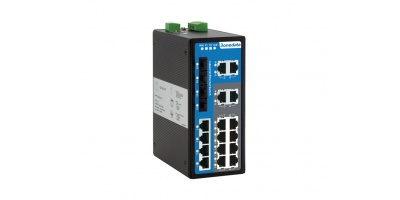

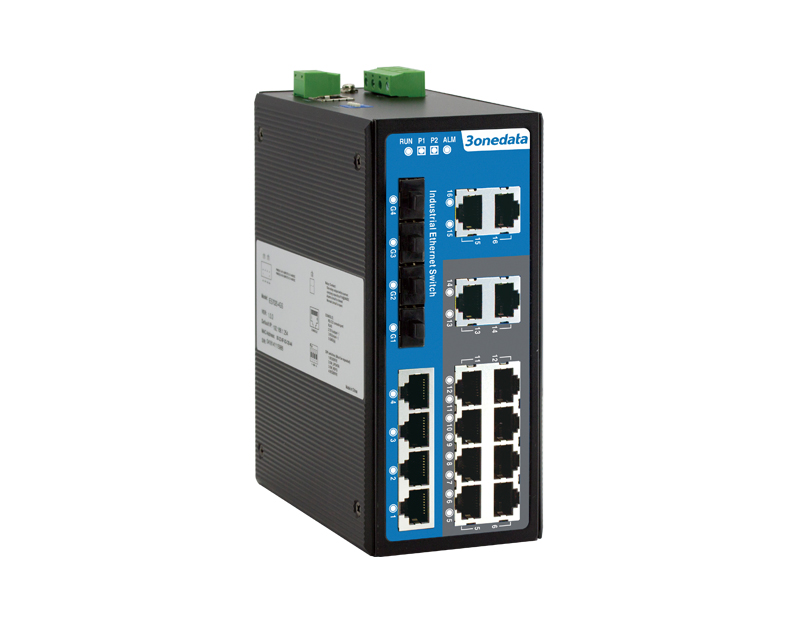

IES7120-4GS: Switch công nghiệp hỗ trợ 16 cổng Ethernet tốc độ 10/100Base-TX(RJ45) và 4 cổng SFP tốc độ 1000Base-SFP

Standard

&

Protocol

IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX and 100Base-FX

IEEE 802.3z for 1000Base-X

IEEE 802.3x for Flow Control

IEEE 802.1D for Spanning Tree Protocol

IEEE 802.1w for Rapid Spanning Tree Protocol

IEEE 802.1Q for VLAN

IEEE 802.1p for CoS

SNMP v1/v2c Centralized Management of Equipment, Port Mirroring, QoS, DHCP Server, DHCP Client, File Management, Port Statistics

Classification of User Permissions, Port Alarm, Power Supply Alarm, E-mail Alarm

802.1Q Vlan, Static Port Aggregation, Bandwidth Management, Flow Control

Unicast / Multicast

Redundancy

Protocol

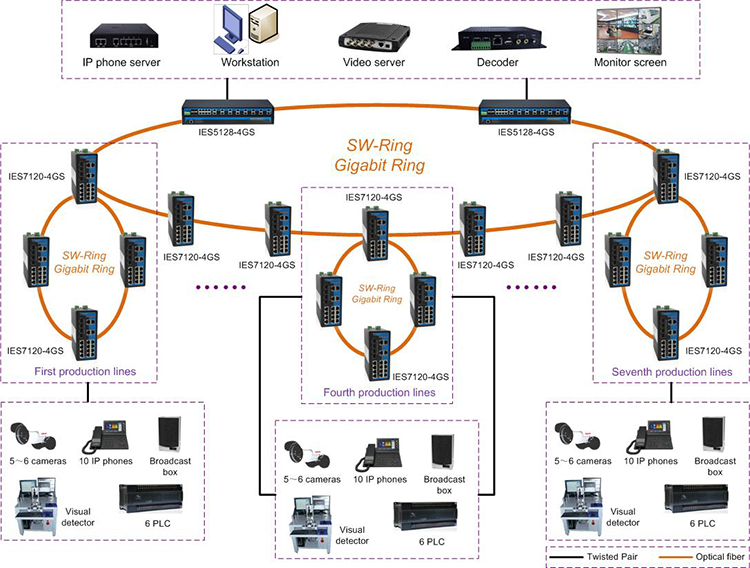

SW-Ring, STP/RSTP

SNTP

Copper port: 10Base-T/100Base-TX, RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning

Fiber port: 100Base-FX, SC/ST/FC optional

SFP slot: 1000Base-SFP

Console port: CLI command line management port (RS-232), RJ45

Alarm port: 2-pin 7.62mm pitch terminal blocks, support 1 relay alarm output, current carrying capacity 5A@30VDC or 10A@125VAC>

Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator

Switch

Property

Transmission mode: store and forward

MAC address: 8K

Packet buffer size: 3Mbit

Backplane bandwidth: 12.8G

Switch time delay: < 10μs

Power

Requirement

12~48VDC, 4-pin 7.62mm pitch terminal blocks

Dual power supply redundancy, reverse polarity protection, nonpolarity

Environmental

Limit

Operating temperature range: -40~75℃

Storage temperature range: -40~85℃

Relative humidity: 5%～95%（no condensation）

Housing: IP40 protection, metal

Installation: DIN-Rail mounting

Dimension (W x H x D): 70mm×160mm×130mm

Weight: ≤1.1kg

Industrial

Standard

IEC 61000-4-2 (ESD), Level 4

lAir discharge: ±15kV

lContact discharge: ±8kV

IEC 61000-4-4 (EFT), Level 4

lPower supply: ±4kV

lEthernet interface: ±2kV

lRelay: ±4kV

IEC 61000-4-5 (Surge), Level 2

lPower supply: common mode ±1kV, differential mode ±500V

lEthernet interface: ±2kV

lRelay: common mode ±1kV, differential mode ±500V

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6
