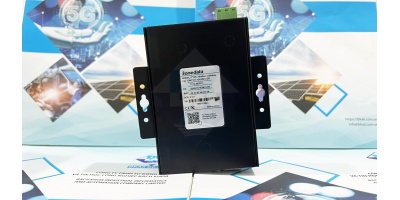

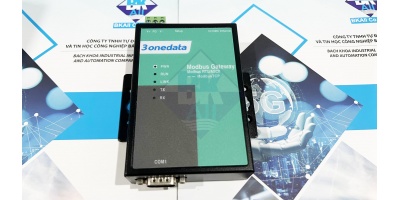

GW1101-1DI(3IN1): Modbus Gateway 1 cổng RS-232/485/422 sang Ethernet

Giá: Liên hệ

GW1101-1DI(3IN1) Modbus Gateway 1 cổng RS-232/485/422 sang Ethernet của hãng 3Onedata đang được BKAII phân phối rộng rãi tại thị trường Việt Nam. GW1101-1DI(3IN1) được thiết theo tiêu chuẩn công nghiệp, nhỏ gọn, dễ dàng lấy được tín hiệu về PLC, máy tính, vi xử lý, máy tính nhúng. Sản phẩm hiện đang được sử dụng trong các bài toán M2M, IoT của các lĩnh vực: Điện lực, khí tượng thủy văn, giao thông minh, hệ thống kiểm soát an ninh,…

Modbus Gateway

Tính năng của sản phẩm:

Support 10/100Base-T(X) self-adaptive Ethernet interface
Support 300bps-115200bps line speed and non-blocking communication
Support RTS/CTS, DTR/DSR and XON/XOFF flow control
Support response timeout setting of characters
Support RTU Master, RTU Slave, ASCII Master, ASCII Slave and other operating modes
Support up to 256 TCP Slave requests under Master mode
Support up to 128 TCP Master connections under Slave mode
Support virtual and real ID mapping to achieve flexible access between Master and Slave devices
Support IP address and MAC address filtering, which is easy to achieve accurate access control
Support classification of user management to achieve humanized permission management
Support monitoring for serial port status and parameters, so the communication status will be clear at a glance
Support Windows configuration tool, TELNET, WEB configuration forms and access control
File management is convenient for the device rapid configuration and online upgrading

Thông số kỹ thuật của sản phẩm:

Ethernet Port	Standard: 10Base-T, 100Base-TX Protocol: Modbus TCP, TCP, IP, UDP, ARP, HTTP, TELNET, SNMP, ICMP, DHCP, DNS Rate: 10/100M automatic flow control, MDI/MDI-X autotunning Interface quantity: 1 Interface form: RJ45 Duplex mode: full/half duplex mode self-adaption
Serial Port	Standard: EIA RS-232C, RS-485, RS-422 Protocol: Modbus RTU/ASCII Quantity of serial port: 1 RS-232 or RS-485/422 serial port RS-232 signal: RXD, TXD, DTR, GND, DSR, RTS, CTS, DCD RS-485 signal: D+, D-, GND RS-422 signal: T+, T-, GND, R+, R- Baud rate: 300-115200bps Data bit: 5bit, 6bit, 7bit, 8bit Parity bit: None, Even, Odd, Space, Mark Stop bit: 1bit, 2bit Interface form: RS-232, adopt RJ45 RS-485/422, adopt 5 pins 5.08mm pitch terminal blocks Flow control: RTS/CTS, DTR/DSR, XON/XOFF Pull high/low resistor for RS-485: 4.7 kΩ Operating mode: RTU Master, RTU Slave, ASCII Master and ASCII Slave Connection quantity: up to 256 TCP Slave requests are supported under Master mode up to 128 TCP Master connections are supported under Slave mode
Configuration	WEB configuration management, TELNET configuration, Windows configuration tool
Security	Classification of User Permissions, IP address filtering, MAC address filtering, WEB Console, TELNET Console
LED Indicator	Power supply indicator, running indicator, Ethernet port indicator, serial port indicator
Power Requirement	12~48VDC, 3 pins 5.08mm pitch terminal blocks
Power Consumption	No-load: 0.9W@12VDC> Full-load: 1.1W@12VDC>
Environmental Limit	Operating temperature: -40~75℃ Storage temperature:-40~85℃ Relative humidity: 5%～95%(no condensation)
Physical Characteristic	Housing: IP40 protection, metal Installation: wall mounting Dimension (W x H x D): 69mm×22mm×100mm Weight: 230g
Industrial Standard	IEC 61000-4-2 (ESD, Electro-static Discharge), Level 3 Air discharge: ±8kV Contact discharge: ±6kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
