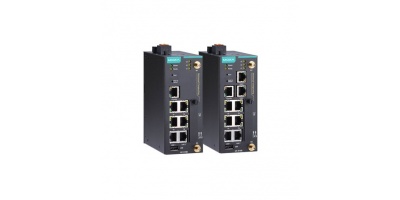

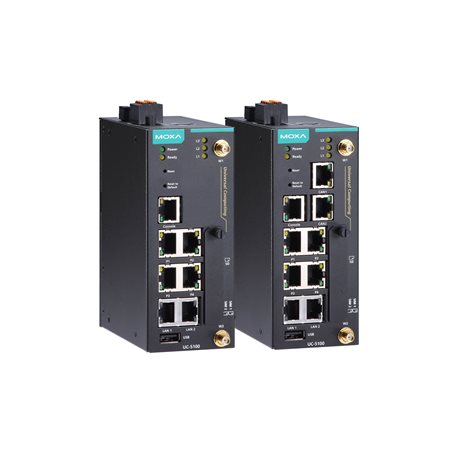

UC-5100 Series: Arm-based Industrial computing platform for industrial automation

DRAM

Storage Pre-installed

512 MB DDR3

8 GB eMMC

Pre-installed OS

Storage Slot

Linux Debian 9 kernel 4.4 (Moxa Industrial Linux)

SD slots x 1

Serial Ports

USB 2.0

Digital Input

Digital Output

Console Port

Buttons

RS-232/422/485 ports x 4, software selectable (RJ45)

USB 2.0 hosts x 1, type-A connectors

DIs x 4

DOs x 4

RS-232 (TxD, RxD, GND), RJ45 output (115200, n, 8, 1)

Reset button

Dip switch for serial and CAN ports configuration

Ethernet Ports

Magnetic Isolation Protection

Auto-sensing 10/100 Mbps ports (RJ45 connector) x 2

1.5 kV (built-in)

Serial Ports

Data Bits

Parity

Stop Bits

4 x RS-232/422/485

5, 6, 7, 8

None, Even, Odd, Space, Mark

1, 1.5, 2

No. of Ports

Signals

Terminator

UC-5111-LX: 2
UC-5111-T-LX: 2
UC-5112-LX: 2
UC-5112-T-LX: 2

UC-5111-LX: CAN_L, CAN_H, CAN Signal GND
UC-5111-T-LX: CAN_L, CAN_H, CAN Signal GND
UC-5112-LX: CAN_L, CAN_H, CAN Signal GND
UC-5112-T-LX: CAN_L, CAN_H, CAN Signal GND

UC-5111-LX: N/A, 120 ohms (by DIP)
UC-5111-T-LX: N/A, 120 ohms (by DIP)
UC-5112-LX: N/A, 120 ohms (by DIP)
UC-5112-T-LX: N/A, 120 ohms (by DIP)

Input Voltage

Input Current

9 to 48 VDC

0.95 A @ 9 VDC, 0.23 A @ 48 VDC

6 W

Standard Models: -10 to 60°C (14 to 140°F)

Wide Temp. Models:
• Product only: -40 to 85°C (-40 to 185°F)
• With LTE accessory: -40 to 70°C (-40 to 158°F)
• With Wi-Fi accessory: -10 to 70°C (14 to 158°F)

2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without any USB devices attached)

57 x 136 x 100 mm (2.24 x 5.35 x 3.94 in)

-40 to 85°C (-40 to 185°F)

600 g (1.32 lb)

EN 55032/24
EN 61000-6-2/-6-4

IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
