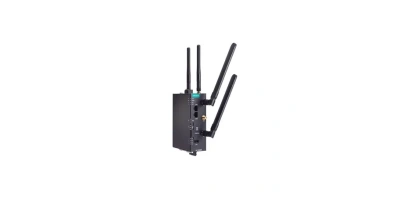

UC-3434A-T-LTE-WiFi: Arm® Cortex®-A53 quad-core 64-bit 1.4 GHz industrial computer with 2 Ethernet ports, 2 RS-232/422/485 serial ports, 2 CAN ports, 1 USB 2.0 port, built-in LTE Cat. 4 and Wi-Fi modules, 9 to 48 VDC, TPM v2.0 module, Moxa Industrial Linu

CPU

Arm Cortex-A53 quad-core 1.4 GHz

DRAM

4 GB DDR4

Supported OS

Moxa Industrial Linux 3 (Debian 11, kernel 5.10), 2031 EOL See www.moxa.com/MIL

Storage Pre-installed

16 GB eMMC

Expansion Slots

microSD socket x 1

Ethernet Ports

Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2

Serial Ports

RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)

CAN Ports

UC-3424A-T-LTE, UC-3434A-T-LTE-WiFi: CAN 2.0 A/B x 2 (DB9 male)

USB 2.0

USB 2.0 hosts x 1, type-A connectors

Cellular Antenna Connector

SMA x 2

SIM Format

Nano

Number of SIMs

2

GPS Antenna Connector

SMA x 1

Wi-Fi Antenna Connector

RP-SMA x 2

Console Port

RS-232 (TxD, RxD, GND), 3-pin header output (115200, n, 8, 1)

Bluetooth

UC-3430A-T-LTE-WiFi, UC-3434A-T-LTE-WiFi: v5.3

TPM

TPM v2.0

No. of Ports

2

Magnetic Isolation Protection

1.5 kV (built-in)

No. of Ports

2

Baudrate

50 bps to 921.60 kbps

Data Bits

5, 6, 7, 8

Stop Bits

1, 1.5, 2

Parity

None, Even, Odd, Space, Mark

Flow Control

RTS/CTS, XON/XOFF

ADDC (automatic data direction control) for RS-485

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

Data+, Data-, GND

RS-485-4w

Tx+, Tx-, Rx+, Rx-, GND

No. of Ports

UC-3424A-T-LTE, UC-3434A-T-LTE-WiFi: 2

Baudrate

10 to 1000 kbps

Industrial Protocols

CAN 2.0A CAN 2.0B

Connector

6-pin terminal block

Isolation

2 kV (built-in)

Signals

CAN_H, CAN_L, CAN_GND, CAN_SHLD, CAN_V+, GND

Band Options

LTE bands: Band 1 (2100 MHz) / Band 2 (1900 MHz) / Band 3 (1800 MHz) / Band 4 (1700

MHz) / Band 5 (850 MHz) / Band 7 (2600 MHz) / Band 8 (700 MHz) / Band 9 (1800 MHz) /

Band 12 (700 MHz) / Band 13 (700 MHz) / Band 14 (700 MHz) / Band 18 (850 MHz) /

Band 19 (850 MHz) / Band 20 (800 MHz) / Band 25 (1900 MHz) / Band 26 (850 MHz) /

Band 28 (700 MHz)

3G bands: Band 1 (2100 MHz) / Band 2 (1900 MHz) / Band 4 (1700 MHz) / Band 5 (850

MHz) / Band 6 (800 MHz) / Band 8 (700 MHz) / Band 19 (850 MHz)

2G bands: Band 2 (1900 MHz) / Band 3 (1800 MHz) / Band 5 (850 MHz) / Band 8 (700 MHz)

Receiver Types

GPS/GLONASS/BeiDou/Galileo/QZSS

Accuracy

Position: < 2.0 m @CEP50

Time to First Fix (TTFF)

Hot start: 1.1 s Warm start: 22.1 s Cold start: 29.9 s

Sensitivity

Tracking: -160 dBm

Acquisition: -147 dBm Cold starts: -145 dBm

Update Rate

Minimum 1 Hz

WLAN Standards

802.11a/b/g/n/ac/ax

Frequency Band

2.4 GHz / 5 GHz

Hardware-based Security

TPM 2.0

Hardware Root of Trust Secure Boot

Intrusion Detection

Host-based Intrusion Detection

Security Tools

Security Diagnostic Tool Security Event Auditing Secure Update

Disk Protection

LUKS Disk Encryption

Recovery

One-step recovery to the last known secure state Dual-system design with automatic failback

Reliability

Network Keep Alive

Network Failover and Failback

System

Power x 1

READY (device bootup) x 1 SIM card indicator x 1

User Programmable

1

LAN

P1, P2: TX, RX per port (10/100/1000 Mbps)

CAN

UC-3424A-T-LTE/UC-3434A-T-LTE-WiFi:

P3, P4: 1 per port for 2 CAN ports

Wireless Signal Strength

UC-3420A-T-LTE, UC-3424A-T-LTE:

Cellular x 3

UC-3430A-T-LTE-WiFi, UC-3434-T-LTE-WiFi:

Cellular x 3, Wi-Fi x 3

Input Current

1.09 A @ 9 VDC, 0.21 A @ 48 VDC

Input Voltage

9 to 48 VDC

Power Consumption

10.8 W (max.)

Automatic Reboot Trigger

External RTC (real-time clock)

Alert Tools

External WDT (watchdog timer)

Housing

Metal

IP Rating

IP30

Dimensions

130 x 92 x 41 mm (5.12 x 3.62 x 1.61 in)

Weight

Product only: 550 g (1.22 lb)

Installation

DIN-rail mounting

Wall mounting (with optional kit)

Operating Temperature

-40 to 70°C (-40 to 158°F)

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

EMC

EN 55032/35

EN 61000-6-2/-6-4 UKCA

RCM

EMI

FCC Part 15B Class A ICES-003 Class A

EN 55032 Class A

EN 61000-6-4 Class A

EMS

IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV

IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m

IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV

IEC 61000-4-5 Surge: Power: 1 kV, Signal: 1 kV

IEC 61000-4-6 CS: 10 V

IEC 61000-4-8 PFMF: 30 A/m

Radio Frequency

All models:

CE (RED) FCC ISED UKCA RCM NCC

UC-342x models:

TELEC

Safety

EN 62368-1

UL 62368-1

Vibration

IEC 60068-2-64

2 grms @ 5 to 500 Hz, random wave, 1 hr per axis (without USB devices attached)

Shock

IEC 60068-2-27

Carrier Approvals

AT&T

Verizon PTCRB

International Approval

CE (RED) FCC ISED UKCA RCM NCC

UC-342x models:

TELEC

Hazardous Locations

Class I Division 2 ATEX

Green Product

RoHS, CRoHS, WEEE

Time

1,461,405 hrs

Standards

Telcordia (Bellcore) Standard TR/SR

Model Name

OS

CPU

CAN

LTE

Wi-Fi

UC-3420A-T-LTE

Default: MIL3 Standard

Order MIL3 Secure through UC-3400A (CTO)

Arm Cortex-A53 quad-core 1.4 GHz

–

Cat. 4

–

UC-3424A-T-LTE

Default: MIL3 Standard

Order MIL3 Secure through UC-3400A (CTO)

Arm Cortex-A53 quad-core 1.4 GHz

2

Cat. 4

–

UC-3430A-T-LTE-WiFi

Default: MIL3 Standard

Order MIL3 Secure through UC-3400A (CTO)

Arm Cortex-A53 quad-core 1.4 GHz

–

Cat. 4

+

UC-3434A-T-LTE-WiFi

Default: MIL3 Standard

Order MIL3 Secure through UC-3400A (CTO)

Arm Cortex-A53 quad-core 1.4 GHz

2

Cat. 4

+
