MGate MB3270 Bộ chuyển đổi tín hiệu nâng cao 02 cổng RS232/485/422 sang Ethernet có hỗ trợ chức năng Modbus Gateway của hãng Moxa-Taiwan được BKAII phân phối rộng rãi tại thị trường Việt Nam. MGate MB3270 được thiết kế theo tiêu chuẩn công nghiệp, nhỏ gọn, dễ dàng lấy được tín hiệu về PLC, máy tính, vi xử lý, máy tính nhúng,... Sản phẩm hiện đang được sử dụng trong các bài toán M2M, IoT của các lĩnh vực: Điện lực, khí tượng thủy văn, giao thông thông minh, hệ thống kiểm soát an ninh,…

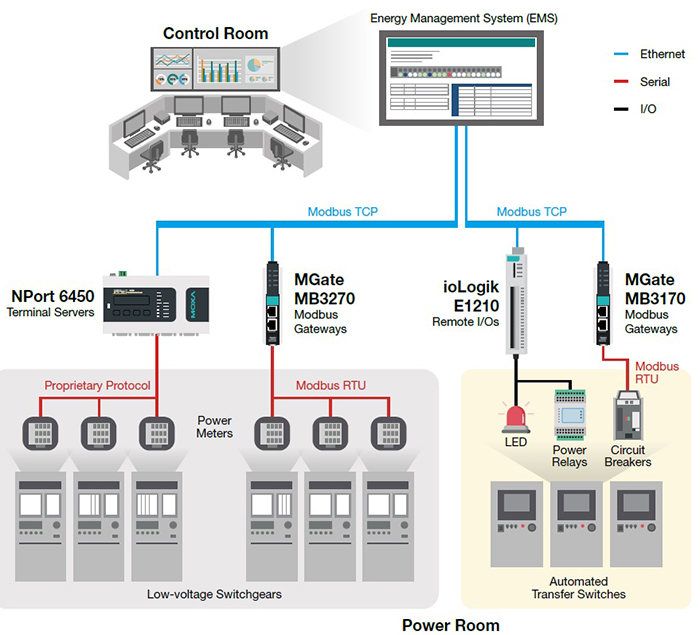

Mô hình ứng dụng:
Tính năng của sản phẩm :
- Supports Auto-Device Routing for easy configuration
- Supports route by TCP port or IP address for flexible deployment
- Accessible by up to 32 TCP master/client devices, or connect to up to 32 TCP slave/server devices
- Supports up to 31 or 62 serial slave devices
- Ethernet cascading for easy wiring
- Serial port routing by IP address, TCP port, or ID mapping
- Serial redirector function provided
- Embedded Modbus traffic monitor
- 10/100BaseTX (RJ45) or 100BaseFX (single mode or multi-mode with SC/ST connector)
Thông số kỹ thuật của sản phẩm:
| • Ethernet Interface |
| Protocols |
Modbus TCP |
| Number of Ports |
2 (1 IP, Ethernet cascade) |
| Speed |
10/100 Mbps, Auto MDI/MDIX |
| Connector |
8-pin RJ45 |
| Magnetic Isolation Protection |
1.5 kV (built-in) |
| • Optical Fiber Interface |
| Table |
|
| • Serial Interface |
| Protocol |
Modbus RTU/ASCII Master/Slave |
| Number of Ports |
MB3270/3270I: 2 |
| Serial Standards |
RS-232/422/485, software selectable |
| Connectors |
MB3270/3270I: DB9 male x 2 |
| Magnetic Isolation Protection |
2 kV (for “I” models) |
| ESD Protection |
15 kV for all signals |
| RS-485 Data Direction Control |
ADDC® (automatic data direction control) |
| Pull High/Low Resistor for RS-485 |
1 kΩ, 150 kΩ |
| Terminator for RS-485 |
120 Ω |
| • Serial Communication Parameters |
| Data Bits |
7, 8 |
| Stop Bits |
1, 2 |
| Parity |
None, Even, Odd, Space, Mark |
| Flow Control |
RTS/CTS, DTR/DSR, RTS Toggle (RS-232 only) |
| Baudrate |
50 bps to 921.6 kbps |
| • Serial Signals |
| RS-232 |
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 |
Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w |
Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w |
Data+, Data-, GND |
| • Software |
| Configuration Options |
Web Console, Telnet Console, Windows Utility |
| Utility |
MGate Manager for Windows2000, Windows XP, Server 2003, Vista, Server 2008 (x86/x64), Windows Server 2008 R2, Windows 7/8/8.1 (x86/x64), Windows Server 2012 (x64), Windows 2012 R2 |
| Multi-master and Multi-drop |
Master mode: 32 TCP slaves
Slave mode: 32 TCP masters (request queue 32-deep for each master) |
| Support |
Smart Routing, Serial Redirection, ProCOM, Priority Control, MXview, SNMP v1 (read only) |
| • Physical Characteristics |
| Housing |
Plastic, IP30 |
| Weight |
MGate MB3270: 380 g (0.84 lb) |
| Dimensions |
Without ears: 29 x 89.2 x 118.5 mm (1.14 x 3.51 x 4.67 in)
With ears extended: 29 x 89.2 x 124.5 mm (1.14 x 3.51 x 4.90 in) |
| • Environmental Limits |
| Operating Temperature |
Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
| Vibration |
IEC 60068-2-6, IEC 60068-2-64 |
| Shock |
IEC 60068-2-27 |
| Drop |
IEC 60068-2-32 |
| • Power Requirements |
| Input Voltage |
12 to 48 VDC |
| Input Current |
MGate MB3270: 435 mA @ 12 VDC
MGate MB3270I: 510 mA @ 12 VDC
|
| Power Connector |
Terminal block |
| Relay Output |
1 digital relay output to alarm (normal closed), with current carrying capacity 1 A @ 30 VDC |
| • Standards and Certifications |
| Safety |
UL 508, EN 60950-1 |
| Hazardous Location |
Class 1 Division 2, ATEX, IECEx |
| EMC |
EN 55032/24 |
| EMI |
CISPR 32, FCC Part 15B Class A |
| EMS |
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11 |
| Marine |
DNV |
| • MTBF (mean time between failures) |
| Time |
MGate MB3270: 1,236,384 hrs |
| Standard |
Telcordia SR332 |
|
Mã đặt hàng:
| Model No. | Description |
|---|
|

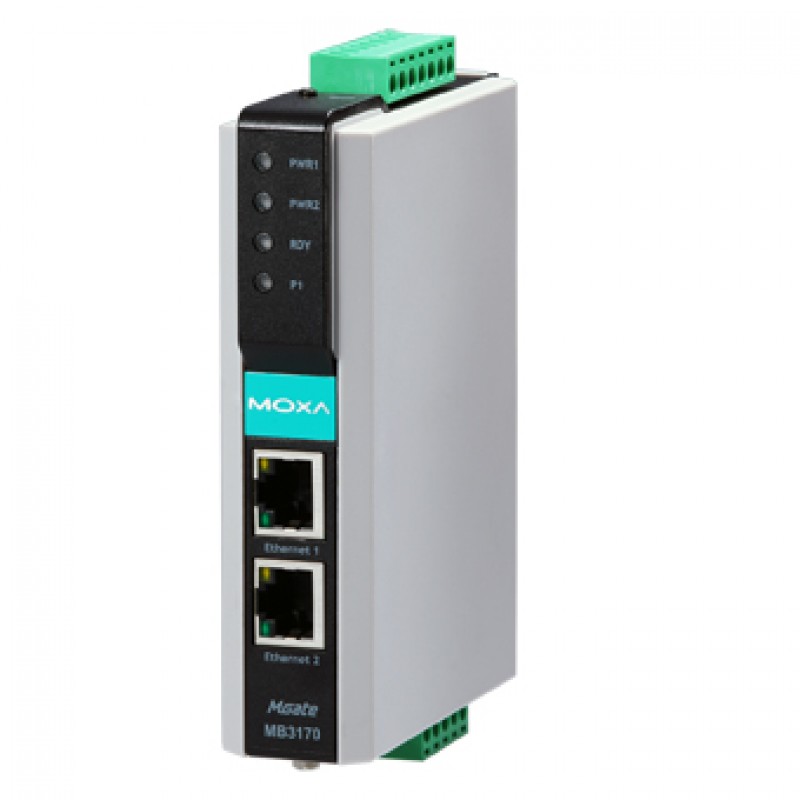

MGate MB3170 |
1-port advanced Modbus gateway, 0 to 55°C operating temperature |
|
MGate MB3170I |
1-port advanced Modbus gateway with 2 KV isolation, 0 to 55°C operating temperature |
|
MGate MB3270 |
2-port advanced Modbus gateway, 0 to 55°C operating temperature |
|
MGate MB3270I |
2-port advanced Modbus gateway with 2 KV isolation, 0 to 55°C operating temperature |
|
MGate MB3170-T |
1-port advanced Modbus gateway, -40 to 75°C operating temperature |
|
MGate MB3170I-T |
1-port advanced Modbus gateway with 2 KV isolation, -40 to 75°C operating temperature |
|
MGate MB3270-T |
2-port advanced Modbus gateway, -40 to 75°C operating temperature |
|
MGate MB3270I-T |
2-port advanced Modbus gateway with 2 KV isolation, -40 to 75°C operating temperature |
|
MGate MB3170-IEX |
1-port advanced Modbus gateway, 0 to 55°C operating temperature, IECEx certification |
|
MGate MB3170I-IEX |
1-port advanced Modbus gateway with 2 kV isolation, 0 to 55°C operating temperature, IECEx certification |
|
MGate MB3270-IEX |
2-port advanced Modbus gateway, 0 to 55°C operating temperature, IECEx certification |
|
MGate MB3270I-IEX |
2-port advanced Modbus gateway with 2 kV isolation, 0 to 55°C operating temperature, IECEx certification |
|
MGate MB3170-T-IEX |
1-port advanced Modbus gateway, -40 to 75°C operating temperature, IECEx certification |
|
MGate MB3170I-T-IEX |
1-port advanced Modbus gateway with 2 kV isolation, -40 to 75°C operating temperature, IECEx certification |
|
MGate MB3270-T-IEX |
2-port advanced Modbus gateway, -40 to 75°C operating temperature, IECEx certification |
|
MGate MB3270I-T-IEX |
2-port advanced Modbus gateway with 2 kV isolation, -40 to 75°C operating temperature, IECEx certification |
|
MGate MB3170-M-SC |
1-port advanced Modbus gateway with 1 100BaseF(X) multi-mode fiber port (SC connectors), 0 to 60°C operating temperature |
|
MGate MB3170-M-SC-T |
1-port advanced Modbus gateway with 1 100BaseF(X) multi-mode fiber port (SC connectors), -40 to 75°C operating temperature |
|
MGate MB3170-M-ST |
1-port advanced Modbus gateway with 1 100BaseF(X) multi-mode fiber port (ST connectors), 0 to 60°C operating temperature |
|
MGate MB3170-M-ST-T |
1-port advanced Modbus gateway with 1 100BaseF(X) multi-mode fiber port (ST connectors), -40 to 75°C operating temperature |
|
MGate MB3170-S-SC |
1-port advanced Modbus gateway with 1 100BaseF(X) single-mode fiber port (SC connectors), 0 to 60°C operating temperature |
|
MGate MB3170-S-SC-T |
1-port advanced Modbus gateway with 1 100BaseF(X) single-mode fiber port (SC connectors), -40 to 75°C operating temperature |
|
MGate MB3170I-M-SC |
1-port advanced Modbus gateway with 1 100BaseF(X) multi-mode fiber port (SC connectors) and 2 KV optical isolation, 0 to 60°C operating temperature |
|
MGate MB3170I-M-SC-T |
1-port advanced Modbus gateway with 1 100BaseF(X) multi-mode fiber port (SC connectors) and 2 KV optical isolation, -40 to 75°C operating temperature |
|
MGate MB3170I-S-SC |
1-port advanced Modbus gateway with 1 100BaseF(X) single-mode fiber port (SC connectors) and 2 KV optical isolation, 0 to 60°C operating temperature |
|
MGate MB3170I-S-SC-T |
1-port advanced Modbus gateway with 1 100BaseF(X) single-mode fiber port (SC connectors) and 2 KV optical isolation, -40 to 75°C operating temperature |
