MGate 5114 Series: 1-port Modbus RTU/ASCII/TCP/IEC 101-to-IEC 104 gateways

Giá: Liên hệ

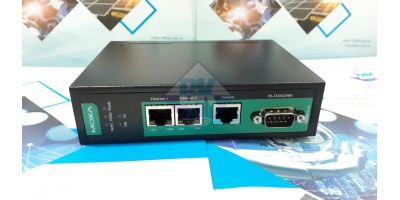

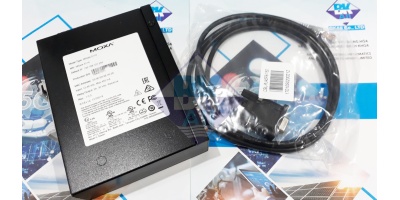

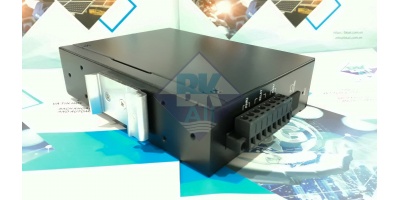

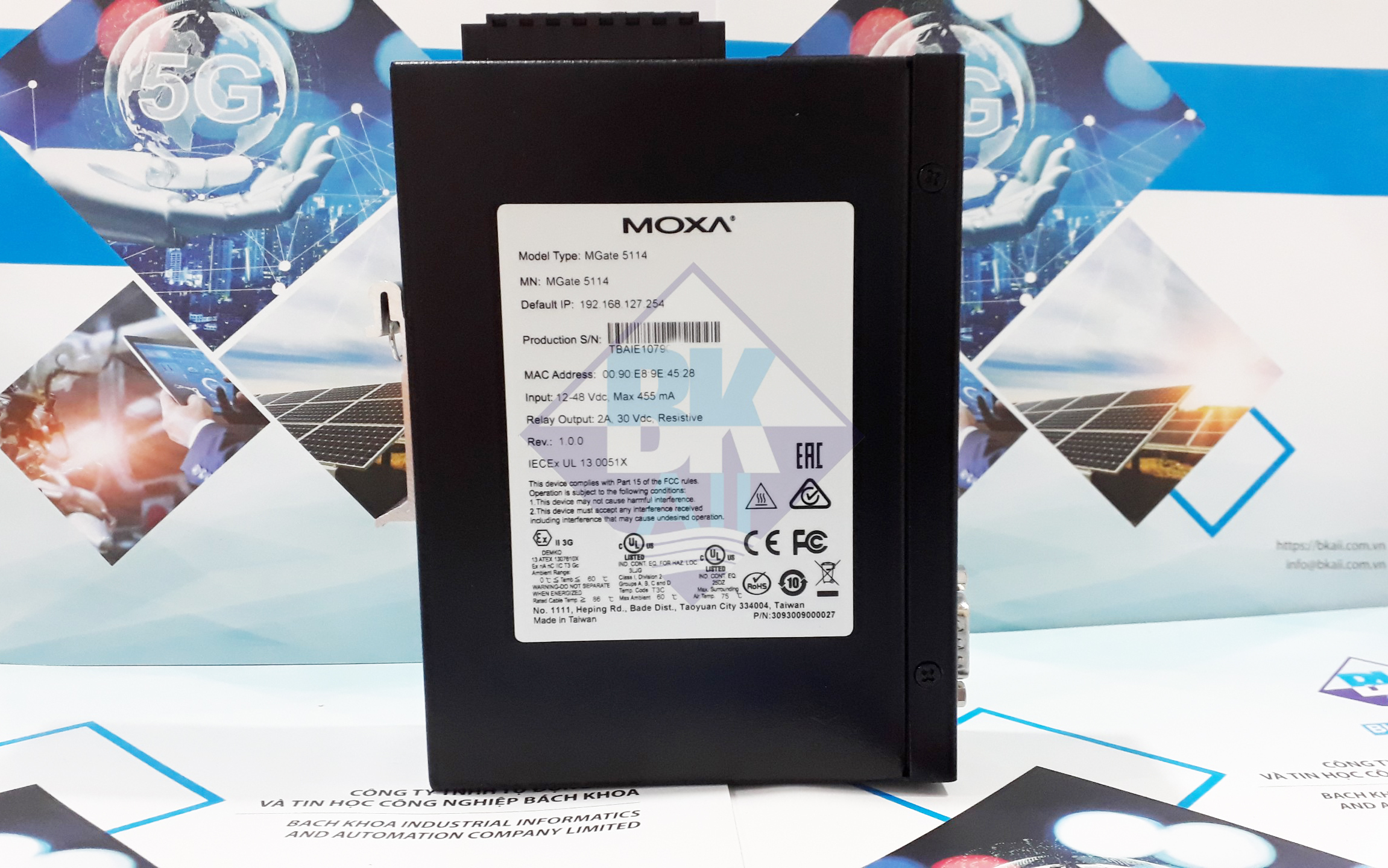

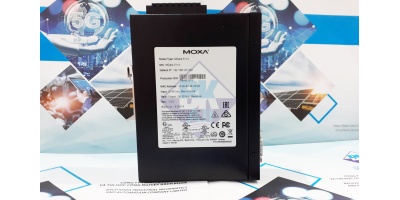

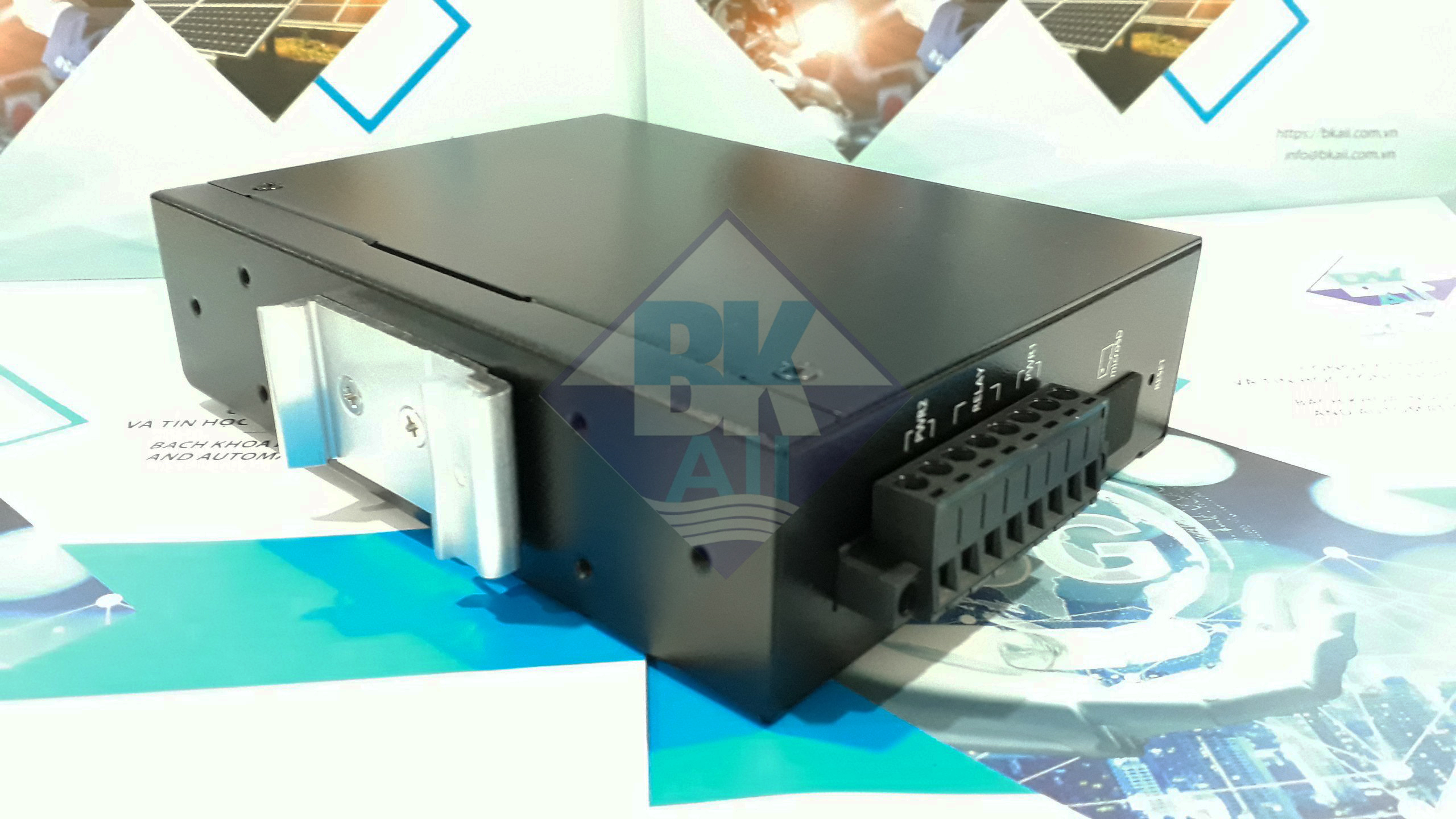

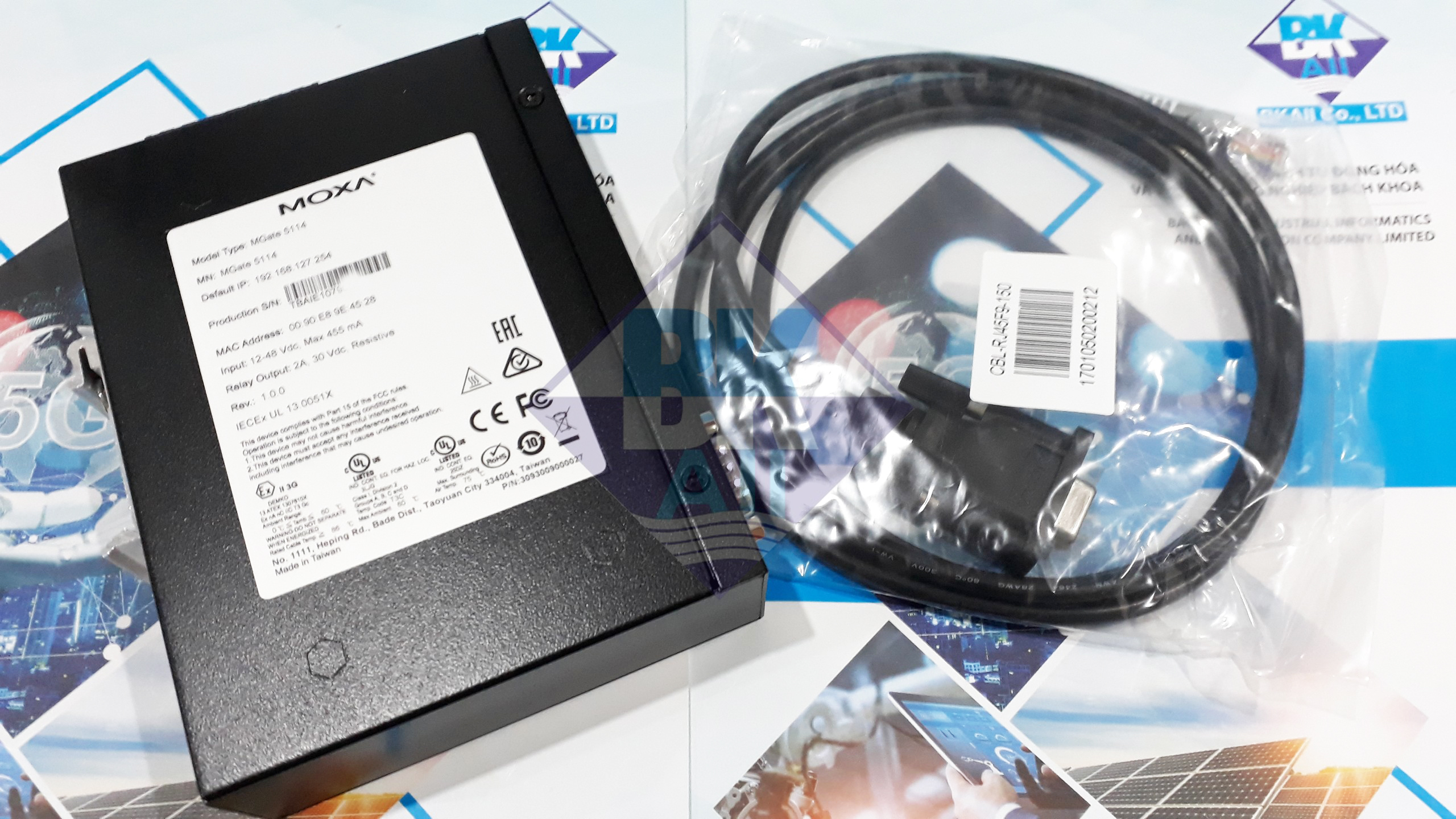

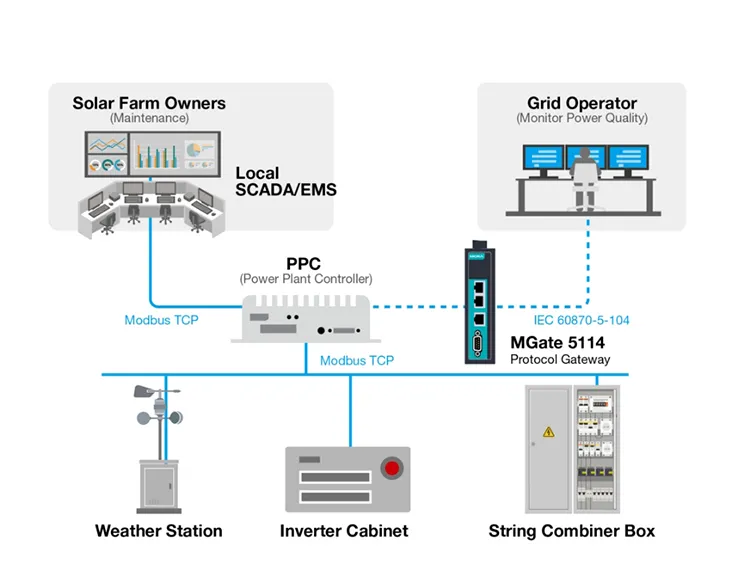

MGate 5114 Series 1-port Modbus RTU/ASCII/TCP/IEC101-to-IEC 104 gateways của hãng Moxa-Taiwan hiện đang được BKAII phân phối rộng rãi tại thị trường Việt Nam. MGate 5114 là bộ chuyển đổi giao thức, cho phép chuyển đổi giao thức IEC101, IEC104, Modbus (RTU/ASCII/TCP) cho nhau. Bộ chuyển đổi giao thức MGate 5114 là sản phẩm được thiết kế theo tiêu chuẩn công nghiệp, giành riêng cho thị trường điện lực...hiện đang được BKAII sử dụng rộng rãi trong các bài toán Recloser, trạm biến áp,......

Tính năng của sản phẩm:

Protocol conversion between Modbus RTU/ASCII/TCP, IEC 60870-5-101, and IEC 60870-5-104
Supports IEC 60870-5-101 master/slave (balanced/unbalanced)
Supports IEC 60870-5-104 client/server
Supports Modbus RTU/ASCII/TCP master/client and slave/server
Effortless configuration via web-based wizard
Status monitoring and fault protection for easy maintenance
Embedded traffic monitoring/diagnostic information for easy troubleshooting
microSD card for configuration backup/duplication and event logs
Built-in Ethernet cascading for easy wiring
Redundant dual DC power inputs and relay output
-40 to 75°C wide operating temperature models available
Serial port with 2 kV isolation protection
Security features based on IEC 62443

Thông số kỹ thuật của sản phẩm:

10/100BaseT(X) Ports (RJ45 connector)

Magnetic Isolation Protection

Auto MDI/MDI-X connection

1.5 kV (built-in)

Industrial Protocols

Modbus TCP Client (Master), Modbus TCP Server (Slave), IEC 60870-5-104 Client (Master), IEC 60870-5-104 Server (Slave)

Configuration Options

Web Console (HTTP/HTTPS), Device Search Utility (DSU), Telnet Console

Management

ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client

MIB

Time Management

RFC1213, RFC1317

NTP Client

Console Port

Connector

Serial Standards

Baudrate

Data Bits

Stop Bits

Flow Control

RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

DB9 male

RS-232/422/485

50 bps to 921.6 kbps

7, 8

1, 2

RTS Toggle (RS-232 only), RTS/CTS

RS-232

RS-422

RS-485-2w

RS-485-4w

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Tx+, Tx-, Rx+, Rx-, GND

Data+, Data-, GND

Tx+, Tx-, Rx+, Rx-, GND

Industrial Protocols

Configuration Options

Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave, IEC 60870-5-101 Master (Balanced/Unbalanced), IEC 60870-5-101 Slave (Balanced/Unbalanced)

Serial Console

Modbus RTU/ASCII

Mode

Functions Supported

Max. No. of Commands

Master, Slave

1, 2, 3, 4, 5, 6, 15, 16, 23

128

Modbus TCP

Mode

Functions Supported

Max. No. of Client Connections

Max. No. of Server Connections

Max. No. of Commands

Client, Server

1, 2, 3, 4, 5, 6, 15, 16, 23

128

IEC 60870-5-104

Mode

Max. No. of Client Connections

Max. No. of Server Connections

Max. No. of Information Objects

Client (Master)
Server (Slave)

2000 points

IEC 60870-5-101

Mode

Max. No. of Master Connections

Max. No. of Slave Connections

Max. No. of Information Objects

Master (Balanced/Unbalanced)
Slave (Balanced/Unbalanced)

1 (Balanced), 31 (Unbalanced)

2000 points

Input Voltage

Input Current

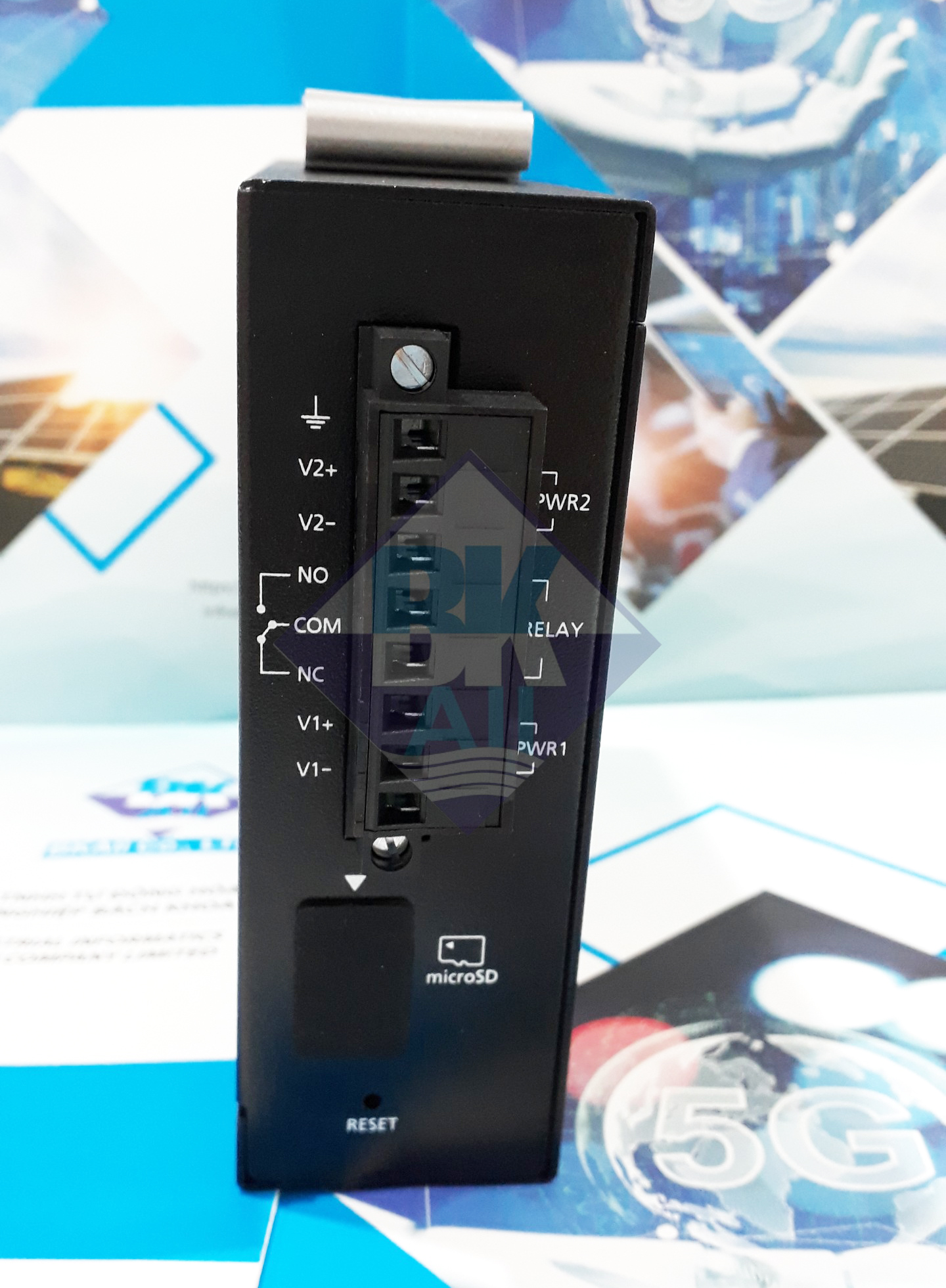

Power Connector

Contact Current Rating

12 to 48 VDC

455 mA @ 12 VDC

Screw-fastened Euroblock terminal

Resistive load: 2 A @ 30 VDC

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Weight

Dimensions

507 g (1.12 lb)

36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)

EMC

EN 55032/24

EMS

IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV

IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
IEC 61000-4-8 PFMF
