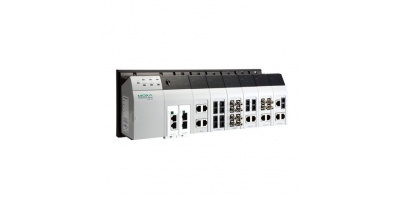

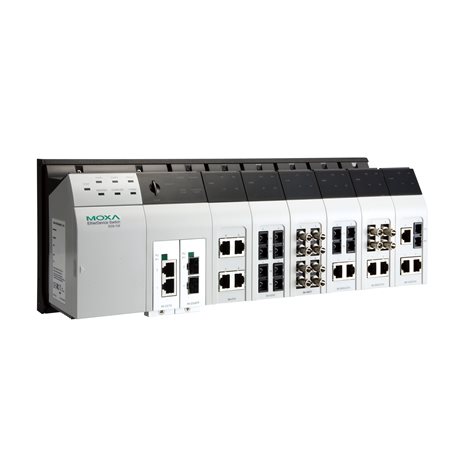

EDS-728: 24+4G-port Layer 2 Gigabit modular managed Ethernet switches

Giá: Liên hệ

EDS-728 Switch công nghiệp Ethernet 28 cổng hỗ trợ 4 cổng Gigabit và 24 cổng Ethernet nhanh của hãng Moxa-Taiwan hiện đang được BKAII phân phối rộng rãi tại thị trường Việt Nam. EDS-728 được thiết kế theo tiêu chuẩn công nghiệp, nhỏ gọn, dễ dàng lấy được tín hiệu về PLC, máy tính, vi xử lý, máy tính nhúng... Sản phẩm hiện đang được sử dụng trong các bài toán M2M, IoT của các lĩnh vực: Điện lực, khí tượng thủy văn, giao thông thông minh, hệ thống kiểm soát an ninh…

Switch công nghiệp

Mô hình ứng dụng:

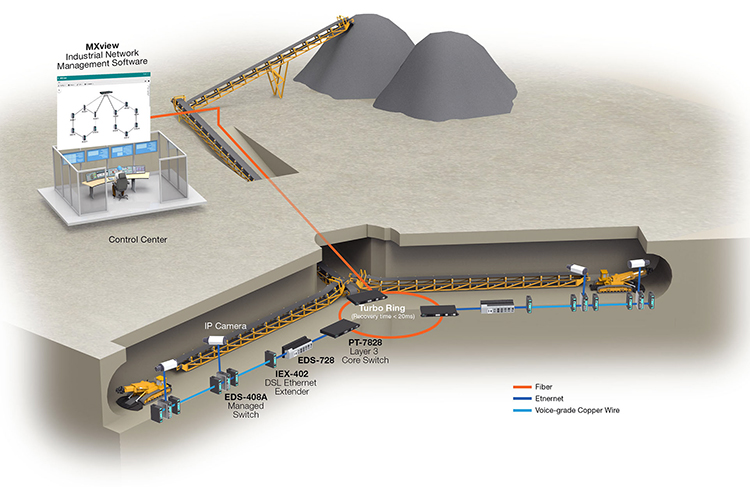

Mở rộng truyền thông mạng trong các mỏ ngầm biến động ở châu Âu với Switch Moxa

Tính năng của sản phẩm:

4 Gigabit plus 24 Fast Ethernet ports for copper and fiber
Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), Gigabit Ethernet recovery time < 50 msRSTP/STP, and MSTP for network redundancy
TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
Supports MXstudio for easy, visualized industrial network management

Thông số kỹ thuật của sản phẩm:

Technology
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3x for Flow Control IEEE 802.1D-2004 for Spanning Tree Protocol* IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol* IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.1X for Authentication IEEE 802.3ad for Port Trunk with LACP
Protocols	IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, BootP, TFTP, SNTP, SMTP, RARP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH, LLDP, IEEE 1588 PTP V2, EtherNet/IP, Modbus/TCP, SNMP Inform, NTP Server/Client*
MIB	MIB-II, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Groups 1, 2, 3, 9
Flow Control	IEEE 802.3x flow control, back pressure flow control

Switch Properties
Priority Queues	4
Max. Number of Available VLANs	64
VLAN ID Range	VID 1 to 4094
IGMP Groups	256
MAC Table Size	16 K
Packet Buffer Size	32 MB
Interface
Fast Ethernet	6 slots for any combination of 4-port interface modules, 10/100BaseT(X) or 100BaseFX
Gigabit Ethernet	2 slots for any combination of 2-port interface modules, 10/100/1000BaseT(X) or 1000BaseSFP slot
Console Port	RS-232 (RJ45 connector)
System LED Indicators	STAT, PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, T.RING
Mode LED Indicators	LNK/ACT, FDX/HDX, RING PORT, COUPLER PORT, SPEED
Alarm Contact	2 relay outputs with current carrying capacity of 1 A @ 24 VDC
Digital Inputs	2 inputs with the same ground, but electrically isolated from the electronics. • +13 to +30V for state “1” • -30 to +3V for state “0” • Max. input current: 8 mA
Power Requirements
Input Voltage	24 VDC (12 to 45 VDC), redundant dual inputs
Input Current	0.96 A @ 24 V
Overload Current Protection	Present
Connection	2 removable 6-contact terminal blocks
Reverse Polarity Protection	Present
Physical Characteristics
Housing	IP30 protection
Dimensions	362.4 x 142.5 x 128 mm (14.27 x 5.61 x 5.04 in)
Weight	1950 g
Installation	DIN-Rail mounting, wall mounting (with optional kit)
Environmental Limits
Operating Temperature	0 to 60°C (32 to 140°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Standards and Certifications
Safety	UL 508, UL 60950-1, CSA C22.2 No. 60950-1, EN 60950-1
EMI	FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS	EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 4, EN 61000-4-5 (Surge) Level 4, EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN 61000-4-12
Marine	DNV, GL, LR, ABS, NK
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6

Mã sản phẩm:

Models	Layer	Total No. of Ports	IM-2G Series Module 10/100/1000BaseT(X) or 1000BaseSFP	IM Series Module 10/100BaseT(X) and/or 100BaseFX	Operating Temp.
EDS-72810G	2	28	2 slots for up to 4 10/100/1000BaseT(X) or 1000BaseSFP ports	6 slots for up to 24 10/100BaseT(X) and/or 100BaseFX ports	0 to 60°C
EDS-72810G-4GTX	2	28	2 IM-2GTX preinstalled; 2 slots for up to 4 10/100/1000BaseT(X) or 1000BaseSFP ports	6 slots for up to 24 10/100BaseT(X) and/or 100BaseFX ports	0 to 60°C
EDS-72810G-2GSFP	2	28	1 IM-2GSFP preinstalled; 2 slots for up to 4 10/100/1000BaseT(X) or 1000BaseSFP ports	6 slots for up to 24 10/100BaseT(X) and/or 100BaseFX ports	0 to 60°C
EDS-72810G-4GSFP	2	28	2 IM-2GSFP preinstalled; 2 slots for up to 4 10/100/1000BaseT(X) or 1000BaseSFP ports	6 slots for up to 24 10/100BaseT(X) and/or 100BaseFX ports	0 to 60°C
EDS-72810G-2GTX2GSFP	2	28	1 IM-2GTX and 1 IM-2GSFP preinstalled; 2 slots for up to 4 10/100/1000BaseT(X) or 1000BaseSFP ports	6 slots for up to 24 10/100BaseT(X) and/or 100BaseFX ports	0 to 60°C
