F8926-L: IOT LoRa Router

Giá: Liên hệ

F8926-L IOT Wireless LTE LoRa Router của hãng Four-Faith hiện đang được BKAII phân phối rộng rãi tại thị trường Việt Nam. F8926-L được thiết kế theo tiêu chuẩn công nghiệp, nhỏ gọn, dễ dàng lấy được tín hiệu về PLC, máy tính, vi xử lý, máy tính nhúng.Sản phẩm hiện đang được sử dụng trong các bài toán M2M, IoT của các lĩnh vực: Điện lực, khí tượng thủy văn, giao thông thông minh…

Router 3G/4G

Tính năng của sản phẩm:

● With 2.5G/3G/4G LTE Wireless Router +LoRa Dual Wireless Link
● Communication Distance >11.5 KM
● Industrial-Grade High-Speed 4G Module
● Powerful Network Switching Capability
● High Data Throughput. Providing Protection For Value-Added Services
● Provides Additional Security Measures
● Suitable For Various Kinds of Non-Human On-Site Industrial Applications
● Controllable Bandwidth Resource Allocation
● Remote Equipment Configuration, Over-The-Air Updates and Maintenance
Thông số kỹ thuật của sản phẩm:

Item	Content
F8926-L-G LoRa+GPRS WIFI Router
Standard and Band	EGSM 900/GSM 1800MHz, GSM 850/900/1800/1900MHz(optional) Compliant to GSM phase 2/2+ GPRS class 10, class 12(optional)
Bandwidth	85.6Kbps
TX power	GSM850/900:<33dBm GSM1800/1900:<30dBm
RX sensitivity	<-107dBm
F8926-L-W LoRa+WCDMA WIFI Router
Standard and Band	UMTS/WCDMA/HSDPA/HSUPA/HSPA+ 850/1900/2100MHz, 850/900/1900/2100MHz(optional) GSM 850/900/1800/1900MHz GPRS/EDGE CLASS 12
Bandwidth	DC-HSPA+: Download speed 42Mbps, Upload speed 5.76Mbps HSPA+: Download speed 21Mbps, Upload speed 5.76Mbps HSDPA: Download speed 7.2Mbps, HSUPA: Upload speed 5.76Mbps UMTS: 384Kbps
TX power	<24dBm
RX sensitivity	<-109dBm
F8926-L-V LoRa+EVDO WIFI Router
Standard and Band	CDMA2000 1X EVDO Rev A 800MHz, 800/1900MHz(optional), 450MHz(optional) CDMA2000 1X EVDO Rev B 800/1900MHz(optional) CDMA2000 1X RTT, IS-95 A/B
Bandwidth	EVDO Rev. A: Download speed 3.1Mbps, Upload speed 1.8Mbps EVDO Rev. B: Download speed 14.7Mbps, Upload speed 5.4Mbps (optional)
TX power	<23dBm
RX sensitivity	<-104dBm
F8926-L-TL LoRa+TDD LTE WIFI Router
Standard and Band	LTE TDD 2600/1900/2300MHz(Band 38/39/40), 800/1400/1800MHz(Band 27/61/62)(optional) TD-SCDMA 2010/1900MHz(A/F frequency band, Band 34/39) GSM /GPRS/EDGE 900/1800/1900MHz
Bandwidth	LTE TDD: Download speed 61Mbps, Upload speed 18Mbps TD-HSPA+: Download speed 4.2Mbps, Upload speed 2.2Mbps TD-HSPA: Download speed 2.2Mbps, Upload speed 2.2Mbps
TX power	<23dBm
RX sensitivity	<-97dBm
F8926-L-FL LoRa+FDD LTE WIFI Router
Standard and Band	LTE FDD 2600/2100/1800/900/800MHz, 700/1700/2100MHz(optional) DC-HSPA+/HSPA+/HSDPA/HSUPA/UMTS 850/900/2100MHz, 800/850/1900/2100MHz(optional) EDGE/GPRS/GSM 850/900/1800/1900MHz GPRS CLASS 10 GPRS CLASS 12
Bandwidth	LTE FDD: Download speed 100Mbps, Upload speed 50Mbps DC-HSPA+: Download speed 42Mbps, Upload speed 5.76Mbps HSPA+: Download speed 21Mbps, Upload speed 5.76Mbps HSDPA: Download speed 7.2Mbps, HSUPA: Upload speed 5.76Mbps UMTS: 384Kbps
TX power	<23dBm
RX sensitivity	<-97dBm
F8926-L-L LoRa+LTE WIFI Router
Standard and Band	LTE FDD,LTE TDD,EVDO,WCDMA,TD-SCDMA,CDMA1X,GPRS/EDGE
Bandwidth	LTE FDD: Download speed 100Mbps, Upload speed 50Mbps LTE TDD: Download speed 61Mbps, Upload speed 18Mbps DC-HSPA+: Download speed 42Mbps, Upload speed 5.76Mbps TD-HSPA+: Download speed 4.2Mbps, Upload speed 2.2Mbps EVDO Rev. A: Download speed 3.1Mbps, Upload speed 1.8Mbps
TX power	<23dBm
RX sensitivity	<-97dBm

LoRa Parameter

Item	Content
Communication Frequency Band	Support a variety of frequency bands around the world（433/470/780/868/915 MHz）
Indoor/Urban Communication Distance	2km
Outdoor/Visual Communication Distance	9km
TX Power	<30dBm
RX Sensitivity	<-140dBm
RF Data Rate	6 level adjustable（0.3、0.6、1.0、1.8、3.1、5.5Kbps）

Interface type

Item	Content

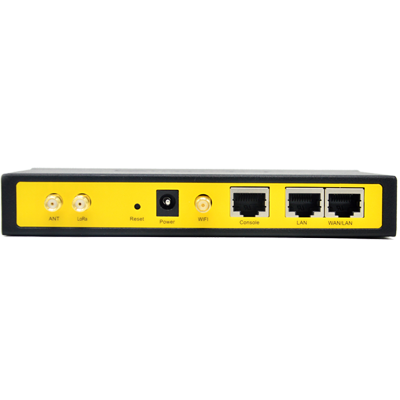

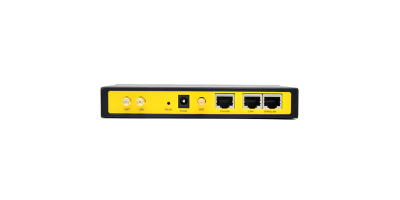

WAN/LAN	WAN/LAN configurable; 1 10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
LAN	1 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
Serial	1 RS232(or RS485/RS422) port, 15KV ESD protection Data bits: 5, 6, 7, 8 Stop bits: 1, 1.5(optional), 2 Parity: none, even, odd, space(optional), mark(optional) Baud rate: 2400~115200 bps

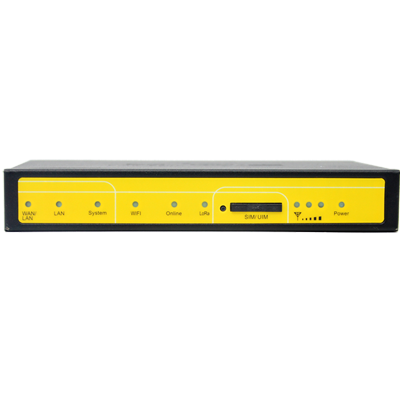

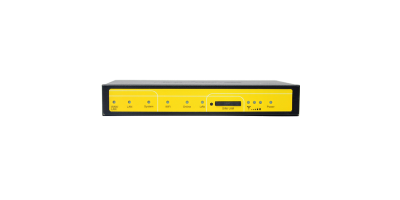

Indicator	"WAN/LAN", "LAN", "System", "WIFI", "Online", " LoRa ", "Signal Strength", "Power"

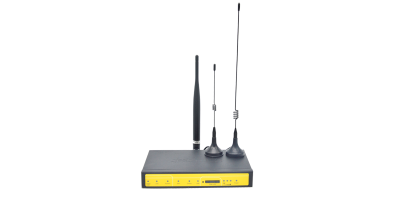

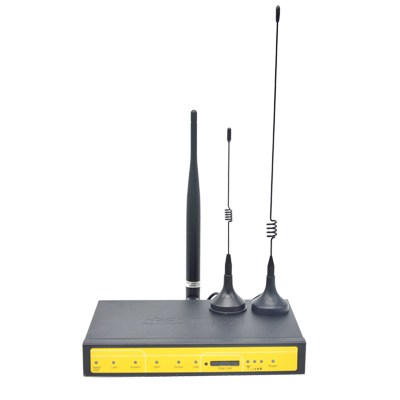

Antenna	Cellular:1 Standard SMA female interface, 50 ohm, lighting protection(optional) LoRa :1 Standard SMA female interface, 50 ohm, lighting protection(optional) WIFI: 1 Standard SMA male interface, 50 ohm, lighting protection(optional)
SIM/UIM	Standard 3V/1.8V user card interface, 15KV ESD protection
Power	Standard 3-PIN power jack, reverse-voltage and over-voltage protection
Reset	Restore the router to its original factory default settings

Consumption

Working condition	Consumption
Standby	4G:156~170mA@12VDC 3G:162~201mA@12VDC 2G:134~193mA@12VDC>
Communication	4G:310~494mA@12VDC 3G:294~412mA@12VDC 2G:174~201mA@12VDC>

Physical Characteristics

Item	Content
Housing	Iron, providing IP30 protection
Dimensions	157x97x25 mm
Weight	440g

Environmental Limits

Item	Content
Operating Temperature	-35~+75ºC(-31~+167℉)
Storage Temperature	-40~+85ºC (-40~+185℉)
Operating Humidity	95% ( unfreezing)

Ordering Information

Model No.	Description	WAN	LAN	Cellular	WIFI	LoRa	SIM/UIM
F8926-L-G	LoRa+GPRS WIFI ROUTER	1	1	1	1	1	1
F8926-L-W	LoRa+WCDMA WIFI ROUTER	1	1	1	1	1	1
F8926-L-V	LoRa+EVDO WIFI ROUTER	1	1	1	1	1	1
F8926-L-TL	LoRa+TDD LTE WIFI ROUTER	1	1	1	1	1	1
F8926-L-FL	LoRa+FDD LTE WIFI ROUTER	1	1	1	1	1	1
F8926-L-L	LoRa+LTE WIFI ROUTER	1	1	1	1	1	1
