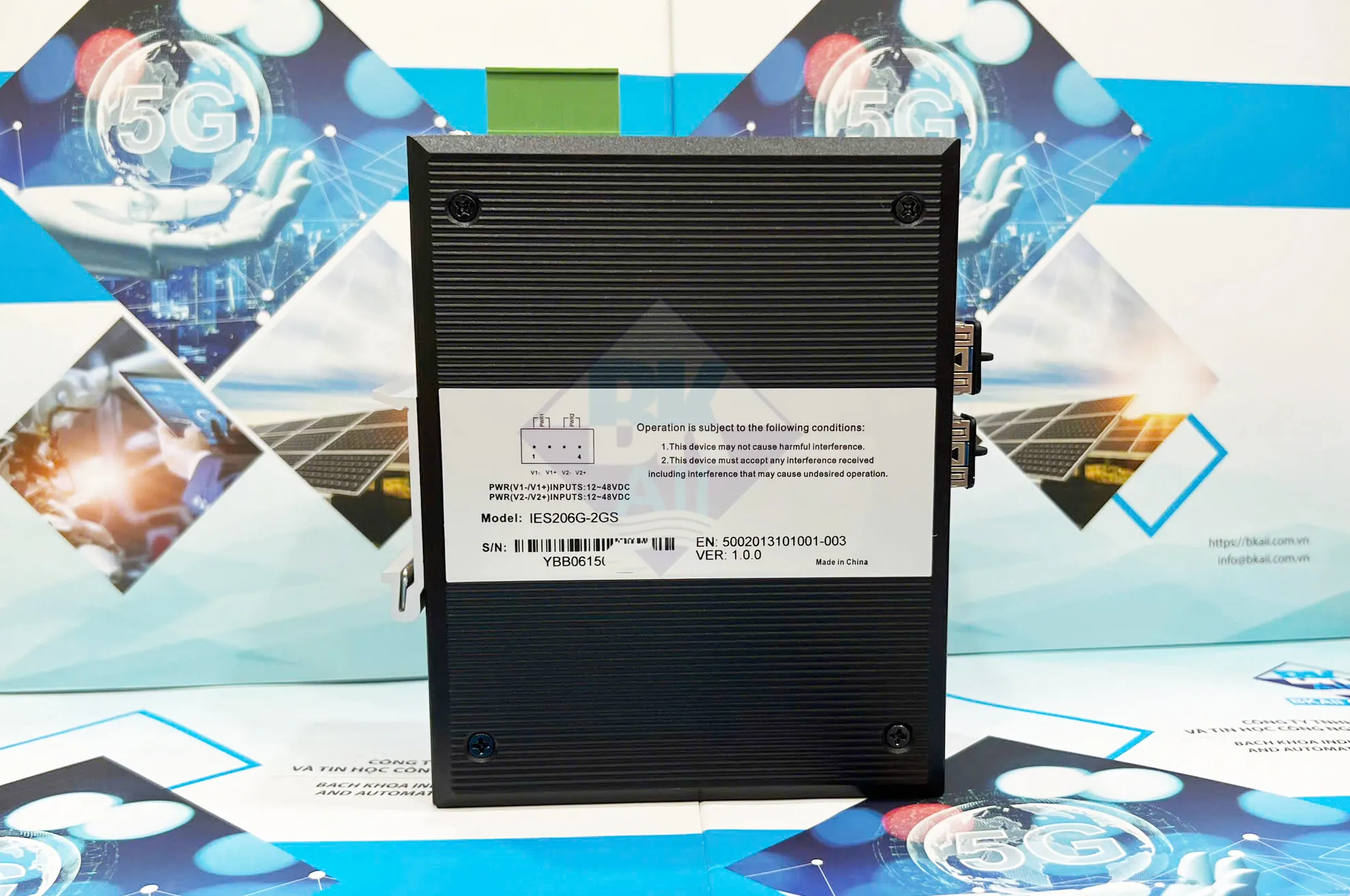

IES206G-2GS: Switch công nghiệp hỗ trợ 2 cổng Quang tốc độ 1000Base-SFP và 4 cổng Ethernet tốc độ 10/100/1000Base-T(X) (RJ45)

Standard

&

Protocol

IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX

IEEE 802.3ab for 1000Base-T

IEEE 802.3z for 1000Base-X

Copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning

SFP slot: 1000Base-SFP

Running Indicator, Port Indicator, Power Supply Indicator

Switch

Property

Transmission mode: store and forward

MAC address: 1K

Packet buffer size: 1Mbit

Backplane bandwidth: 12G

Switch time delay: <10μs

Power

Requirement

12~48VDC

Dual power supply redundancy, nonpolarity, reverse polarity protection

Power

Consumption

No-load: 1.44W@24VDC>

Full-load: 4.34W@24VDC>

Environmental

Limit

Operating temperature range: -40~75℃

Storage temperature range: -40~85℃

Relative humidity: 5%～95%（no condensation）

Housing: IP40 protection, metal

Installation: DIN-Rail mounting

Weight: 0.69kg

Dimension (W x H x D): 53mm×138mm×110mm

Industrial

Standard

IEC 61000-4-2 (ESD), Level 4

lAir discharge: ±15kV

lContact discharge: ±8kV

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6
