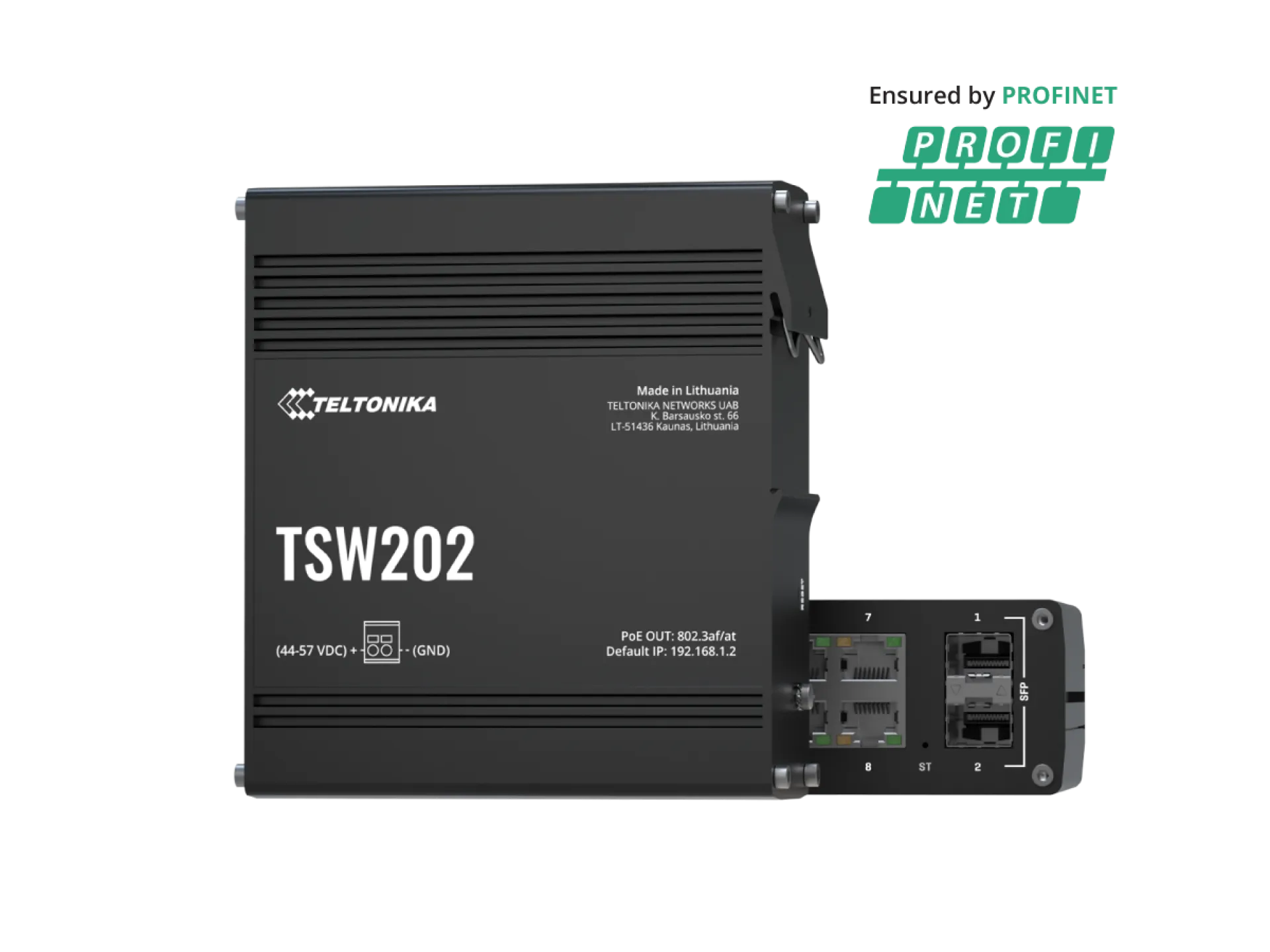

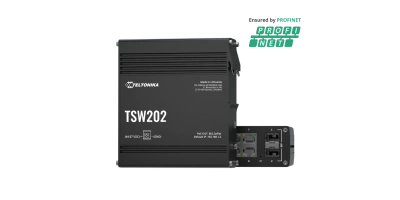

TSW202: MANAGED PoE+ ETHERNET SWITCH

Giá: Liên hệ

Nút thêm vào giỏ hàng sẽ xuất hiện sau khi bạn chọn các giá trị ở trên

TSW202: MANAGED PoE+ ETHERNET SWITCH hãng Teltonika - Lithuania (Litva) hiện đang được BKAII phân phối rộng rãi tại thị trường Việt Nam. TSW202 được thiết kế theo tiêu chuẩn công nghiệp, nhỏ gọn, dễ dàng lấy được tín hiệu về PLC, máy tính, vi xử lý, máy tính nhúng. Sản phẩm hiện đang được sử dụng trong các bài toán M2M, IoT của các lĩnh vực: Điện lực, khí tượng thủy văn, giao thông thông minh, hệ thống kiểm soát an ninh…

Tính năng của sản phẩm:

TSW202 is a managed PoE+ Ethernet switch, designed to provide granular network management capabilities while centralising power distribution. This PoE+ switch enables flexibility over management and power supply and supports protocols, including EtherNet/IP, PROFINET, and MRP. The TSW202 has 2 SFP ports and 8 Gigabit Ethernet ports providing 30 W of power each.

MANAGED SWITCH: L2 with additional L3 features for enhanced management and control
PoE+ & SFP: 8 x port PoE+ switch with 2 x SFP ports for fiber optic communication
PROFINET & MORE: Supports PROFINET for automated data processing alongside other protocols, like EtherNet/IP and MRP
TSWOS: Teltonika Networks OS for switches, intuitively designed for infinite configurations

Thông số kỹ thuật

Ethernet
ETH	Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover
Fibre	2 x SFP ports
IEEE 802.3 series standards	802.3i, 802.3u,802.3ab, 802.3x, 802.3az
INDUSTRIAL PROTOCOLS
Profinet	Profinet Class B conformance (available with optional order code)
POE OUT
PoE+ ports	Port 1 - 8
PoE standards	IEEE 802.3af (PoE,Type 1) and IEEE 802.3at(PoE+, Type 2), Alternative A (Batch 15 and all batches from Batch 17 onward) IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative B (Batches 1–14 and Batch 16)PoE
Max Power per Port (at PSE)	30 W
Total PoE Power Budget (at PSE)	240 W
Maximum Ethernet cable length	100 m
Services
EtherNet/IP	Yes
SNMP V2, V3	Yes
LLDP	Yes
NetworkManagement	802.1p class of service,802.1x port-based networkaccess control, 802.1QVLAN
Network
MRP	MRP client role, MRP managerrole
L2 features	Loop protection, Forwarding table, VLAN, STP/RSTP
DHCP	DHCP server, DHCP client, DHCP static leasescapable of using MAC with wildcards
Port Settings	Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring
L3 Features	Static IPv4 routing, staticIPv6 routing, DHCPv6client, static IPv6 address
Security
Authentication	PAM — presharedkey, Radius & TACACS+, IP & login attempts block
MAC filtering support	Allow specific MAC addresses to connect through specified ports, ignore unauthorized or disablethe port if an unauthorized MAC address is detected
QoS
QOS	Port priority, DSCP priority, 802.1p priority, TOS
Scheduling method	SP/WFQ/WRR
Bandwidth control	Rate limiting, storm control
Traffic Shaper	Port-based shaping
Diagnostics
Tools	Cable diagnostic, ping, traceroute, nslookup
Ping reboot	Capability to restart PoE in a specific port
API
Teltonika Networks Web API (beta)support	Expandyour device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
System Characteristics
RAM	128MB, DDR3
FLASH storage	16 MB serial flash
Firmware / Configuration
WEB UI	Update FW from file, check FW on server, configuration profiles, configurationbackup
FOTA	Update FW
RMS	Update FW/configuration for multiple devices at once
Keep settings	Update FW without losingcurrent configuration
FIRMWARE CUSTOMISATION
Operating system	TSWOS (OpenWrt based Linux OS)
Supported languages	Busybox shell, Lua, C, C++
Development tools	SDK package with build environment provided
Performance Specifications
Bandwidth (Non-blocking)	20 Gbps
Forwarding rate	14.88 Mpps
Packet buffer	512 KB
MAC address tablesize	8K entries
Jumbo frame support	10000 bytes
Power
Connector	2-pin industrialDC power socket
Input voltage range	7 – 57 VDC
PoE-Out input voltage range	44 – 57 VDC
Power consumption	Idle: < 3 W / Max: 8 W / PoE Max: 248 W
Physical Interfaces
Ethernet	8 x RJ45 ports,10/100/1000 Mbps
Fibre	2 x SFP ports
Status LEDs	1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs
Power	1 x 2-pinindustrial DC powersocket
Reset	Software reset button
Other	1 x Grounding screw
Physical Specification
Casing material	Anodized aluminumhousing and panels
Dimensions (W x H x D)	132 x 44.2 x 122.2 mm
Weight	610 g
Mounting options	Integrated DIN rail bracket;wall mount and flat surface (additional kit needed)
Operating Environment
Operating temperature	-40 °C to 75 °C
Operating humidity	5% to 95% non-condensing
Ingress ProtectionRating	IP30
Regulatory s Type Approvals
Regulatory	CE, UKCA, RCM, ANRT, FCC, IC, CB, NBTC, PROFINET,CITC, RoHS, REACH, WEEE, SDPPI (POSTEL), JATE, Kenya, ICASA, Giteki, UL Safety
EMC Emissionss Immunity
Standards	EN 55032:2015 + A11:2020 + A1:2020 EN 55035:2017 + A11:2020 EN IEC 61000-3-2: 2019 + A1:2021 EN 61000-3-3: 2013 + A1:2019 + A2:2021
ESD	EN 61000-4-2:2009
Radiated Immunity	EN IEC 61000-4-3:2020
EFT	EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port)	EN 61000-4-5:2014 + A1:2017
CS	EN 61000-4-6:2014
DIP	EN IEC 61000-4-11:2020
Safety
Standards	CE: EN IEC 62368-1:2020 + A11:2020 RCM: AS/NZS62368.1:2022 CB: IEC 62368-1:2018
Safety (Ordinary Locations)
Standards	UL/CSA Safety: UL 62368-1 (3rd Ed., Rev. December 13, 2019), C22.2No. 62368-1:19 (3rd Ed., Rev. December 13, 2019)

"BKAII - Thiết bị truyền thông TỐT nhất với giá CẠNH TRANH nhất!"

Tải về tsw202-datasheet-v13_bkaii.pdf
