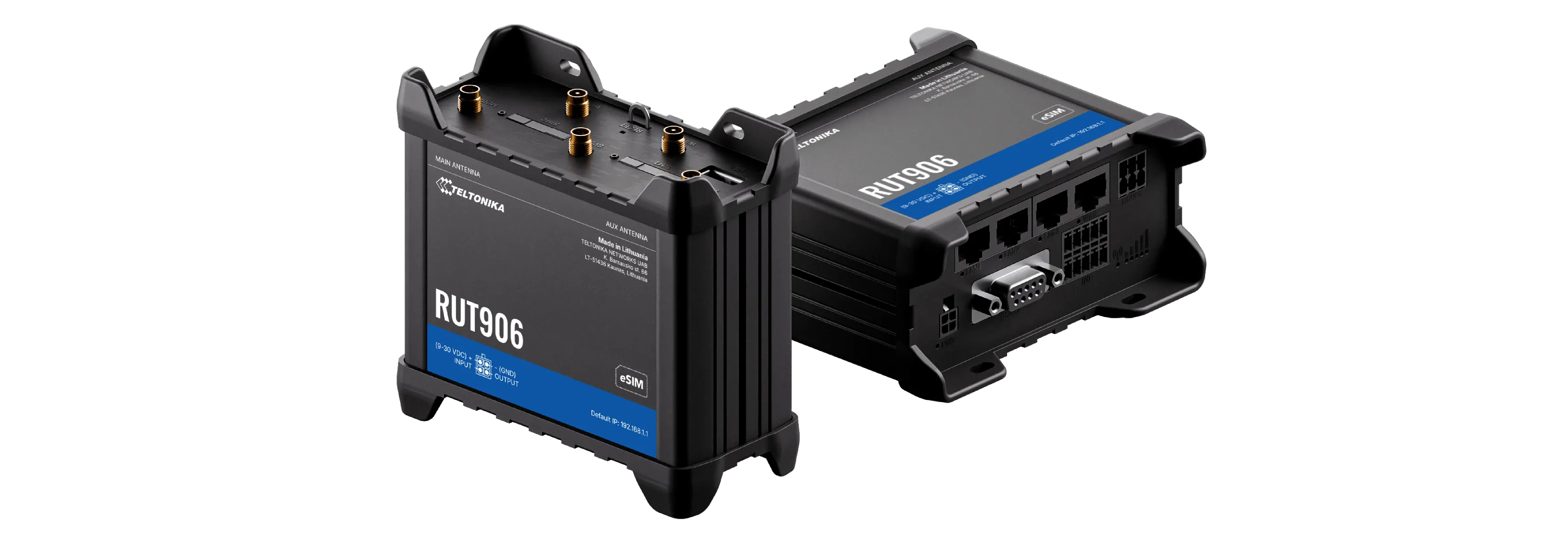

RUT906 - Router 4G Công Nghiệp (RS232/RS485) Teltonika

4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8UL kbps

Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans. Feature availability varies by order code

SIM and eSIM, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection. Feature availability varies by order code

IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strengthRSSI , SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC

SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

Supports sending and reading Unstructured Supplementary Service Data messages

Operator block/allow list (by country or separate operators)

Band lock, Used band status display

Provides the possibility to configure the router to periodically switch to the unused SIM card and establish a data connection in order to prevent the SIM card from being blocked

SIM PIN code management enables setting, changing, or disabling the SIM card's PIN

Direct connection (bridge) between mobile ISP and device on LAN

Router assigns its mobile WAN IP address to another device on LAN

802.11b/g/n Wi-Fi 4, Access Point AP, Station STA

WPA2 Enterprise: PEAP, WPA2 PSK, WPA EAP, WPA PSK, WPA3 SAE, WPA3 EAP, OWE; AES CCMP, TKIP, Auto-cipher modes, client separation, EAP TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames PMF

SSID stealth mode and access control based on MAC address

Up to 100 simultaneous connections

Wireless mesh 802.11s), fast roaming 802.11r), Relayd, BSS transition management 802.11v), radio resource measurement 802.11k)

Allowlist, blocklist

Once scanned, a user will automatically enter your network without needing to input login information

Forward Wi-Fi hotspot landing page to a subsequent connected device

1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX

3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Static routing, Dynamic routing BGP, OSPFv2, RIP v1/v2, EIGRP, NHRP, Policy based routing

TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan WOL, VXLAN

H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

Port forward, traffic rules, custom rules, TTL target customisation

View all your Firewall statistics, rules, and rule counters

View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on

Visual representation of your network, showing which devices are connected to which other devices

Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes

Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards

Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

Supported 77 service providers, others can be configured manually

DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS

Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover

Balance Internet traffic over multiple WAN connections

Possibility to mount remote file system via SSH protocol

Real-time monitoring, wireless signal charts, traffic usage history

Mirroring network traffic on Ethernet ports for monitoring and analysis

Pre-shared key, digital certificates, X.509 certificates, TACACS, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator

Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NATT, NAT64

DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

Port and tag-based VLAN separation

Mobile data limit, customizable period, start time, warning limit, phone number

Block list for blocking out unwanted websites, allow list for specifying allowed sites only

Flexible access control of SSH, Web interface, CLI and Telnet

Certificate creation tool allows to create CA, server, client, let's encrypt, SCEP certificates

Multiple clients and a server can run simultaneously, 27 encryption methods

DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

GRE tunnel, GRE tunnel over IPsec support

Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programʼs code

Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support

SSTP client instance support

ZeroTier VPN client support

WireGuard VPN client and server support

Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

Station, Outstation

RS232, RS485, TCP, USB

RTU (RS232, RS485), TCP, USB

MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality

8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

HTTP(S), MQTT, Azure MQTT

Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

Allows sending commands and receiving data from MODBUS Server through MQTT broker

DLMS - standard protocol for utility meter data exchange

RS232, RS485, TCP

Teltonika Networks Web API (beta) support. Configurable API endpoints to retrieve or change data.

HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status

Firmware update from server, automatic notification

SMS status, SMS configuration

Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off

OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendlytech, AVSystem

MQTT Broker, MQTT publisher

SNMP (v1, v2, v3), SNMP Trap, Brute force protection

Management API over HTTP/HTTPS

Teltonika Remote Management System (RMS)

Monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type

Monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions

Configured with Data to Server. Direct method support for RutOS API calls. Plug and Play integration with Device Provisioning Service

Interaction with AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality

Mediatek, 580 MHz, MIPS 24KEc

16 MB, SPI Flash

Update FW from file, check FW on server, configuration profiles, configuration backup

Update FW/configuration for multiple devices at once

Update FW without losing current configuration

A full factory reset restores all system settings to the default manufacturer's configuration

RutOS (OpenWrt based Linux OS)

Busybox shell, Lua, C, C++, and Python, Java in Package manager

SDK package with build environment provided

Branded firmware and web page application (colours, logos, etc.)

Service used to install additional software

GPS, GLONASS, BeiDou, Galileo and QZSS (under development)

GNSS coordinates via WebUI, SMS, TAVL, RMS

Networked Transport of RTCM via Internet Protocol

Supported server software TAVL, RMS

Configurable multiple geofence zones

DB9 connector, RS232 (with RTS, CTS flow control), 300 to 115200 baud rate

RS485 Full Duplex (4 wires) and Half-Duplex (2 wires), 300 - 230400 baud rate

Console, Serial over IP, Modem

Samba share, USB-to-serial

External HDD, flash drive, modem, printer, USB-serial adapter. Formats: FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

1 x digital dry input (0-3 V), 1 x digital galvanically isolated input (0-30 V), 1 x analog input (0-24 V; 4-20 mA capability), 1 x Digital non-isolated input (on 4-pin power connector)

1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector)

Email, RMS, SMS

Set I/O conditions to initiate event

Micro SD (internal)

Samba share, Storage Memory Expansion, DLNA

FAT32, NTFS, ext2, ext3, ext4

4-pin industrial DC power socket

9 – 30 VDC, reverse polarity protection; surge protection 31 VDC 10us max

Passive PoE over spare pairs. Power up through LAN1 port, 9 - 30 VDC

< 2 W idle, < 7 W Max

4 x RJ45 ports, 10/100 Mbps

2 x Inputs/Outputs (10-pin), 1 x Digital I/O (4-pin power)

1 x Bi-color status, 5 x Signal strength, 4 x ETH status, 1 x Power

2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V

2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS

1 x DB9 socket, 1 x 6-pin industrial socket

Aluminium housing, plastic panels

109.5 x 50 x 100 mm

10% to 90% non-condensing

CE, UKCA, RCM, CB, E-mark

EN 55032, EN 55035, EN 61000, EN 301 489, EN 301 908, EN 300 328, IEC 62368-1
