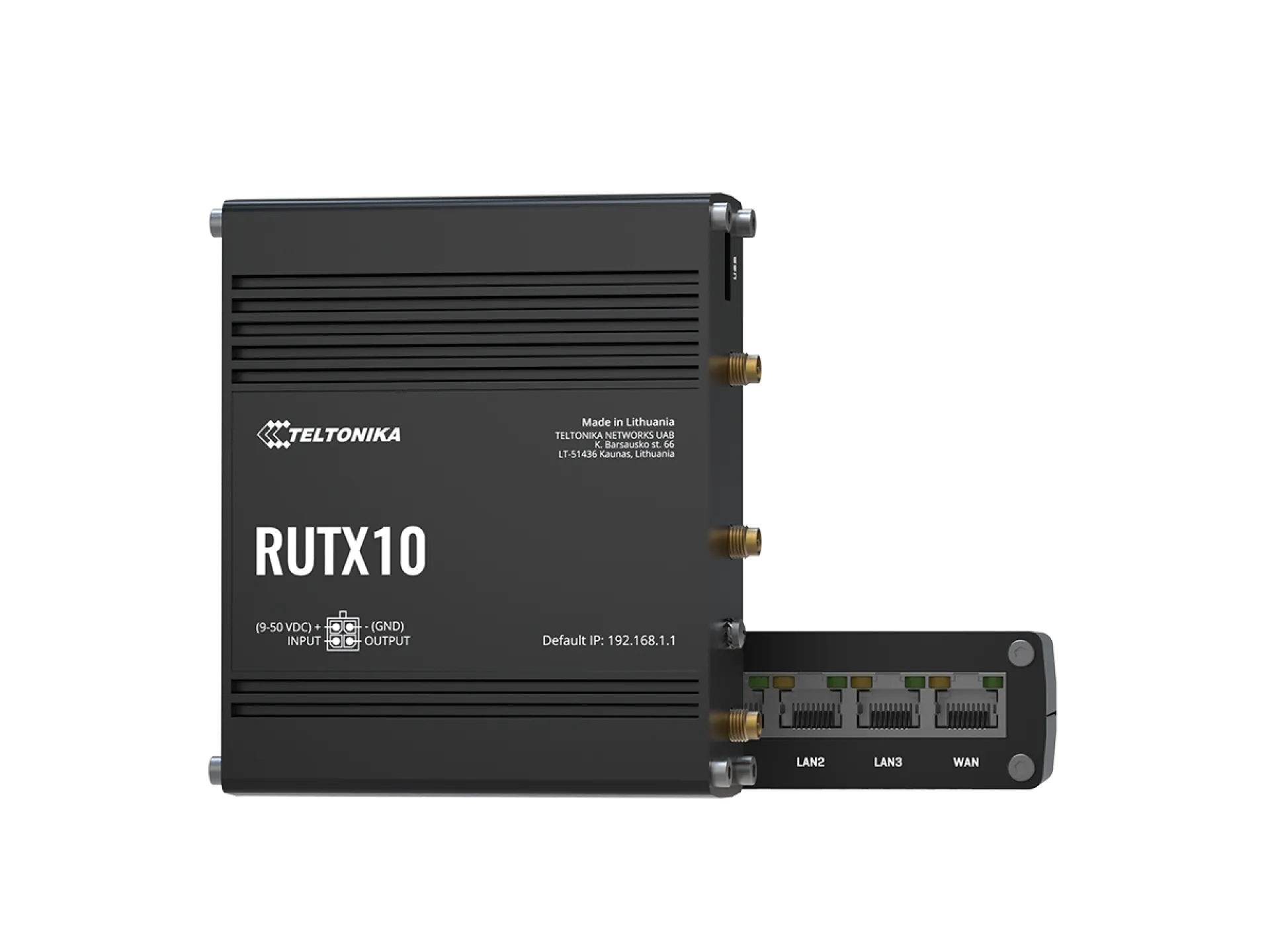

RUTX10 - Router Công Nghiệp Teltonika - Gigabit Ethernet, Dual-Band Wi-Fi

Giá: Liên hệ

Nút thêm vào giỏ hàng sẽ xuất hiện sau khi bạn chọn các giá trị ở trên

RUTX10: PROFESSIONAL ETHERNET ROUTER của hãng hãng Teltonika - Lithuania (Litva) hiện đang được BKAII phân phối rộng rãi tại thị trường Việt Nam. RUTX10 được thiết kế theo tiêu chuẩn công nghiệp, nhỏ gọn, dễ dàng lấy được tín hiệu về PLC, máy tính, vi xử lý, máy tính nhúng. Sản phẩm hiện đang được sử dụng trong các bài toán M2M, IoT của các lĩnh vực: Điện lực, khí tượng thủy văn, giao thông thông minh, hệ thống kiểm soát an ninh…

Tính năng của sản phẩm:

This professional router combines the best of wired and wireless routing functionalities with Gigabit Ethernet, Bluetooth LE, and AC Wi-Fi. Advanced remote management capabilities, along with numerous supported security and networking protocols, make RUTX10 an ideal choice for professional applications

GIGABIT ETH: 4 x Gigabit Ethernet ports with up to 128 port/tag-based VLANs supported
WI-FI & BT: Wave-2 802.11ac Dual Band Wi-Fi and Bluetooth LE
VPN: Numerous VPN Protocols supported, including OpenVPN, IPsec, PPTP, L2TP & DMVPN
RMS: Compatible with Teltonika Networks Remote Management System

Thông số kỹ thuật

Ethernet
WAN	1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3,IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN	3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Wireless
Wireless mode	802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission ratesup to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
Wi-Fi security	WPA2-Enterprise:PEAP, WPA2-PSK, WPA-EAP,WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS12certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
SSID/ESSID	SSIDstealth mode and access controlbased on MAC address
Wi-Fi users	Up to 150 simultaneous connections
Wireless Connectivity Features	Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resourcemeasurement (802.11k)
Wireless MAC filter	Allowlist, blocklist
Wireless QR code generator	Once scanned, a user will automatically enter your networkwithout needing to input login information
TravelMate	Forward Wi-Fi hotspot landing page to a subsequent connecteddevice
Security
SSL certificate generation	Let's Encrypt and SCEP certificate generation methods
802.1x	Port-based network accesscontrol client
Authentication	Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall	Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack prevention	DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scanattacks)
VLAN	Port and tag-based VLAN separation
WEB filter	Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access control	Flexible access controlof SSH, Web interface, CLI and Telnet
TPM	Identification andauthentication module, TPM 2.0 standard
Feature availability	*Feature availability varies by order code
Bluetooth
Bluetooth 5.0	Bluetooth low energy (LE) for short range communication
Network
Routing	Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE,UPNP, SSH, DHCP,Telnet, SMPP, SNMP,MQTT, Wake On Lan (WOL), VXLAN
VoIP passthrough support	H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring	Ping Reboot,Wget Reboot, PeriodicReboot, LCP and ICMP for link inspection
Firewall	Port forward, trafficrules, custom rules, TTL target customisation
Firewall status page	View all your Firewallstatistics, rules, and rule counters
Ports management	View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
Network topology	Visual representation of your network, showing which devices are connected to which other devices
Hotspot	Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
DHCP	Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management (SQM)	Traffic priorityqueuing by source/destination, service,protocol or port,WMM, 802.11e
DDNS	Supported >25 service providers, others can be configured manually
DNS over HTTPS	DNS over HTTPS proxy enablessecure DNS resolution by routing DNS queries over HTTPS
Networkbackup	Wi-Fi WAN, VRRP, Wired options, each of which can be used as an automaticFailover
Load balancing	Balance Internettraffic over multipleWAN connections
SSHFS	Possibility to mount remote file system via SSH protocol
VRF support	Initial virtual routing and forwarding (VRF) support
Traffic Management	Real-time monitoring, wireless signal charts,traffic usage history
VPN
OpenVPN	Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption	DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
IPsec	XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE	GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP	Client/Server instancescan run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel	Proxy designed to add TLS encryption functionality to existing clientsand servers without any changes in the program’s code
DMVPN	Method of buildingscalable IPsec VPNs,Phase 2 and Phase 3 and Dual Hub support
SSTP	SSTP client instancesupport
ZeroTier	ZeroTier VPN client support
WireGuard	WireGuard VPN client and server support
Tinc	Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
Tailscale	Tailscale offers speed,stability, and simplicity over traditional VPNs. Encrypted point- to-point connections using the open source WireGuard protocol
OPC UA
Supported modes	Client, Server
Supported connection types	TCP
MODBUS
Supported modes	Server, Client
Supported connection types	TCP, USB
Custom registers	MODBUS TCP customregister block requests,which read/write to a file inside the router, and can be used to extend MODBUSTCP Client functionality
Supported data formats	8-bit: INT, UINT; 16-bit:INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
DATA TO SERVER
Protocol	HTTP(S), MQTT, Azure MQTT
Data to server	Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature
MQTT Gateway
Modbus MQTT Gateway	Allows sending commands and receiving data from MODBUSServer through MQTT broker
DNP3
Supported modes	Station, Outstation
Supported connection	TCP, USB
DLMS/COSEM
DLMS Support	DLMS - standard protocolfor utility meter data exchange
Supported modes	Client
Supported connection types	TCP, USB
API	Teltonika Networks Web API (beta)support. Expandyour device's possibilities by using a set of configurable API endpoints to retrieve or change data. https://developers.teltonika-networks.com
Monitoring s Management
WEB UI	HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmwareupdate availability notifications, event log, systemlog, kernel log, Internet status
FOTA	Firmware update from server, automaticnotification
SSH	SSH (v1, v2)
TR-069	OpenACS, EasyCwmp, ACSLite,tGem, LibreACS, GenieACS,FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT	MQTT Broker, MQTT publisher
SNMP	SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC	Management API over HTTP/HTTPS
RMS	Teltonika Remote ManagementSystem (RMS)
IoT Platforms
ThingWorx	Allows monitoringof: WAN Type, WAN IP
Cumulocity - Cloud of Things	Allows monitoring of: DeviceModel, Revision and Serial Number,WAN Type and IP. Has reboot and firmwareupgrade actions
Azure IoT Hub	Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoTHub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
System Characteristics
CPU	Quad-core ARM Cortex A7, 717 MHz
RAM	256 MB, DDR3
FLASH storage	256 MB, SPI Flash
Firmware / Configuration
WEB UI	Update FW from file, check FW on server, configuration profiles, configurationbackup
FOTA	Update FW
RMS	Update FW/configuration for multiple devices at once
Keep settings	Update FW without losingcurrent configuration
Factory settings reset	A full factory resetrestores all systemsettings, including the IP address,PIN, and user data to the default manufacturer's configuration
FIRMWARE CUSTOMISATION
Operating system	RutOS (OpenWrt based Linux OS)
Supported languages	Busybox shell,Lua, C, C++, and Python,Java in Package manager
Development tools	SDK package with build environment provided
GPL customization	You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
Package Manager	The PackageManager is a service used to installadditional software on the device
Location Tracking
NTRIP	NTRIP protocol (NetworkedTransport of RTCM via Internet Protocol)
USB
Data rate	USB 2.0
Applications	Samba share, USB-to-serial
External devices	Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
Storage formats	FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4
Input / Output
Input	1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output	1 x DigitalOutput, Open collectoroutput, max output30 V, 300 mA
Events	Email, RMS
I/O juggler	Allows to set certain I/O conditions to initiate event
Power
Connector	4-pin industrial DC power socket
Input voltage range	9 - 50 VDC, reverse polarityprotection, voltage surge/transient protection
PoE (passive)	Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC
Power consumption	9 W Max
Physical Interfaces
Ethernet	4 x RJ45 ports,10/100/1000 Mbps
I/O’s	1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs	8 x LAN status LEDs, 1 x Power LED, 2 x 2.4G and 5G Wi-Fi LEDs
Power	1 x 4-pinpower connector
Antennas	2 x RP-SMA for Wi-Fi, 1 x RP-SMA for Bluetooth
USB	1 x USB A port for externaldevices
Reset	Reboot/User default reset/Factory reset button
Other	1 x Grounding screw
Physical Specification
Casing material	Aluminium housing
Dimensions (W x H x D)	115 x 32.2 x 95.2 mm
Weight	355 g
Mounting options	DIN rail, wall mount, flat surface (all require additional kit)
Operating Environment
Operating temperature	-40 °C to 75 °C
Operating humidity	10% to 90% non-condensing
Ingress ProtectionRating	IP30
Regulatory s Type Approvals
Regulatory	CE, UKCA, FCC, EAC, UCRF, CITC, ICASA,ANRT, FCC, IC, NOM, UL/CSASafety, Anatel, Giteki, CB, IC (ISED),RCM

"BKAII - Thiết bị truyền thông TỐT nhất với giá CẠNH TRANH nhất!"

Tải về rutx10_datasheet_v121_bkaii.pdf
