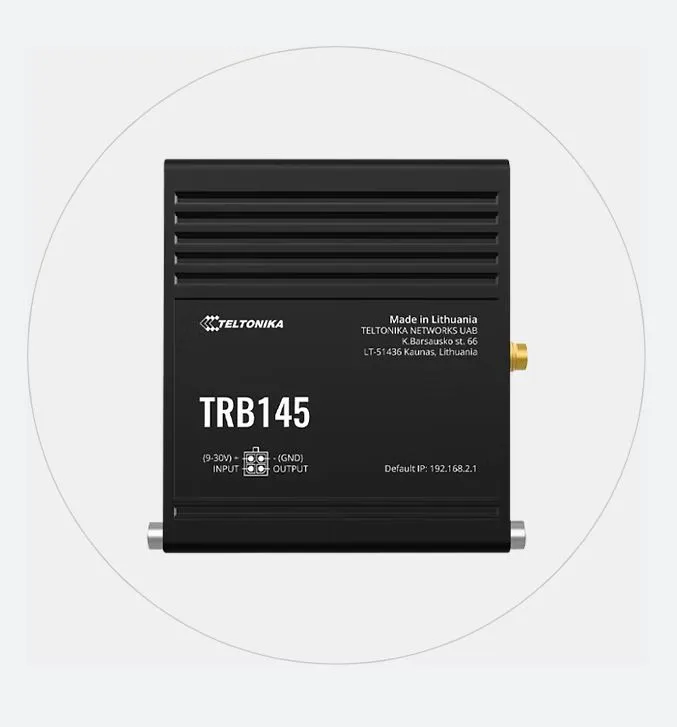

TRB145 - Gateway 4G LTE RS485 Teltonika

4G LTE Cat 1 up to 10 DL/5 UL Mbps; 3G up to 384 DL/384 UL kbps; 2G up to 296 DL/236.8 UL kbps

IMSI, ICCID, operator,operator state, data connection state, network type, bandwidth,connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC

SMS status, SMS configuration, EMAILto SMS, SMS to EMAIL,SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPPUSSD Supports sending and reading Unstructured Supplementary Service Data messages

Operator block/allow list (by country or separate operators)

Possibility to use different PDNs for multiplenetwork access and services

Band lock, Used band status display

SIM PIN code management enables setting, changing,or disabling the SIM card's PIN

Direct connection (bridge)between mobile ISP and device on LAN

Gateway assigns its mobile WAN IP address to another device on LAN

TCP, UDP, IPv4,IPv6, ICMP, NTP, DNS, HTTP,HTTPS, FTP, SMTP,SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT

H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

Ping Reboot,Wget Reboot, PeriodicReboot, LCP and ICMP for link inspection

Port forward, trafficrules, custom rules, TTL target customisation

View all your Firewallstatistics, rules, and rule counters

View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on

Visual representation of your network, showing which devices are connected to which other devices

Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards

Traffic priorityqueuing by source/destination, service,protocol or port,WMM, 802.11e

Supported >25 service providers, others can be configured manually

DNS over HTTPS proxy enablessecure DNS resolution by routing DNS queries over HTTPS

Mobile, VRRP, Wired options,each of which can be used as an automaticFailover

Possibility to mount remote file system via SSH protocol

Real-time monitoring, wireless signal charts,traffic usage history

Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator

Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64

DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scanattacks)

Port and tag-based VLAN separation

Mobile data limit, customizable period, start time, warning limit,phone number

Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

Flexible access controlof SSH, Web interface, CLI and Telnet

Let's Encrypt and SCEP certificate generation methods

Multiple clients and a server can run simultaneously, 27 encryption methods

DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES- 128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192- OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

GRE tunnel, GRE tunnel over IPsec support

Client/Server instancescan run simultaneously, L2TPv3, L2TP over IPsec support

Proxy designed to add TLS encryption functionality to existing clientsand servers without any changes in the program’s code

Method of buildingscalable IPsec VPNs,Phase 2 and Phase 3 and Dual Hub support

SSTP client instancesupport

ZeroTier VPN client support

WireGuard VPN client and server support

Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

Support for multipleBACnet/IP interfaces, Networknumber assignment, Preconfigured BDT entriesfor BBMD (BACnetBroadcast Management Device)

TCP, RTU (RS485)

MODBUS TCP customregister block requests,which read/write to a file inside the router, and can be used to extend MODBUSTCP Client functionality

8-bit: INT, UINT; 16-bit:INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

HTTP(S), MQTT, Azure MQTT

Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

Allows sending commands and receiving data from MODBUSServer through MQTT broker

Station, Outstation

TCP, RTU(RS485)

DLMS - standard protocolfor utility meter data exchange

TCP, RTU(RS485)

Teltonika Networks Web API (beta)support. Expandyour device's possibilities by using a set of configurable API endpoints.

HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmwareupdate availability notifications, event log, systemlog, kernel log, Internet status

Firmware update from server, automaticnotification

SMS status, SMS configuration

Reboot, Status, Mobile data on/off,Output on/off, answer/hang-up with a timer

OpenACS, EasyCwmp, ACSLite,tGem, LibreACS, GenieACS,FreeACS, LibCWMP, Friendly tech, AVSystem

MQTT Broker, MQTT publisher

SNMP (v1, v2, v3), SNMP Trap, Brute force protection

Management API over HTTP/HTTPS

Teltonika Remote ManagementSystem (RMS)

Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type

Allows monitoring of: DeviceModel, Revision and Serial Number,WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has rebootand firmware upgrade actions

Can be configured with Data to Server to send parameters to cloud. Has Direct method support and zero-touch device provisioning.

Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality

ARM Cortex-A7 1.2 GHz

512 MB, SPI Flash

Update FW from file, check FW on server, configuration profiles, configurationbackup

Update FW/configuration for multiple devices at once

Update FW without losingcurrent configuration

A full factory resetrestores all systemsettings, including the IP address,PIN, and user data

RutOS (OpenWrt based Linux OS)

Busybox shell,Lua, C, C++, and Pythonin Package manager

SDK package with build environment provided

Create custom, branded firmware and web page application (colours, logos, etc.)

Service used to installadditional software on the device

2 x Configurable Inputs/Outputs. Digital input 0 - 5 V (low), 8 - 30 V (high). Open collector output, max 30 V, 300 mA.

HTTP POST/GET, Schedule

Email, RMS, SMS

Allows to set certain I/O conditions to initiate event

4-pin industrial DC power socket

9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max

2 x Configurable I/O pins on 4 pin power connector

3 x connection type status LEDs, 5 x connection strength LEDs, 1 x Power LED

1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V

1 x 4-pinpower connector

1 x 6-pin terminal block for 2-wire or 4-wire interface

Reboot/User default reset/Factory reset button

1 x Virtualnetwork interface via micro USB

Aluminium housing

74.5 x 25 x 64.4 mm

DIN rail, wall mount, flat surface (all require additional kit)

10% to 90% non-condensing

Draft EN 301 489-1 V2.2.0, Draft EN 301 489-52 V1.1.0

EN 61000-4-2:2009

EN IEC 61000-4-3:2006 + A1:2008 + A2:2010

EN 61000-4-4:2012

EN 61000-4-5:2014

EN 61000-4-6:2014

EN 61000-4-11:2004

EN 301 511 V12.5.1, EN 301 908-1 V13.1.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.1.1

CE: EN 62368-1:2014 + A11:2017, EN IEC 62232:2017, EN 50385:2017 RCM: AS/NZS 62368.1:2018
