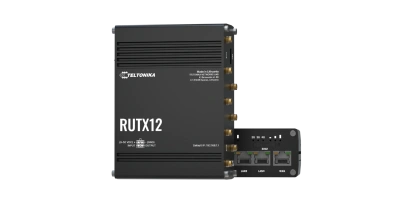

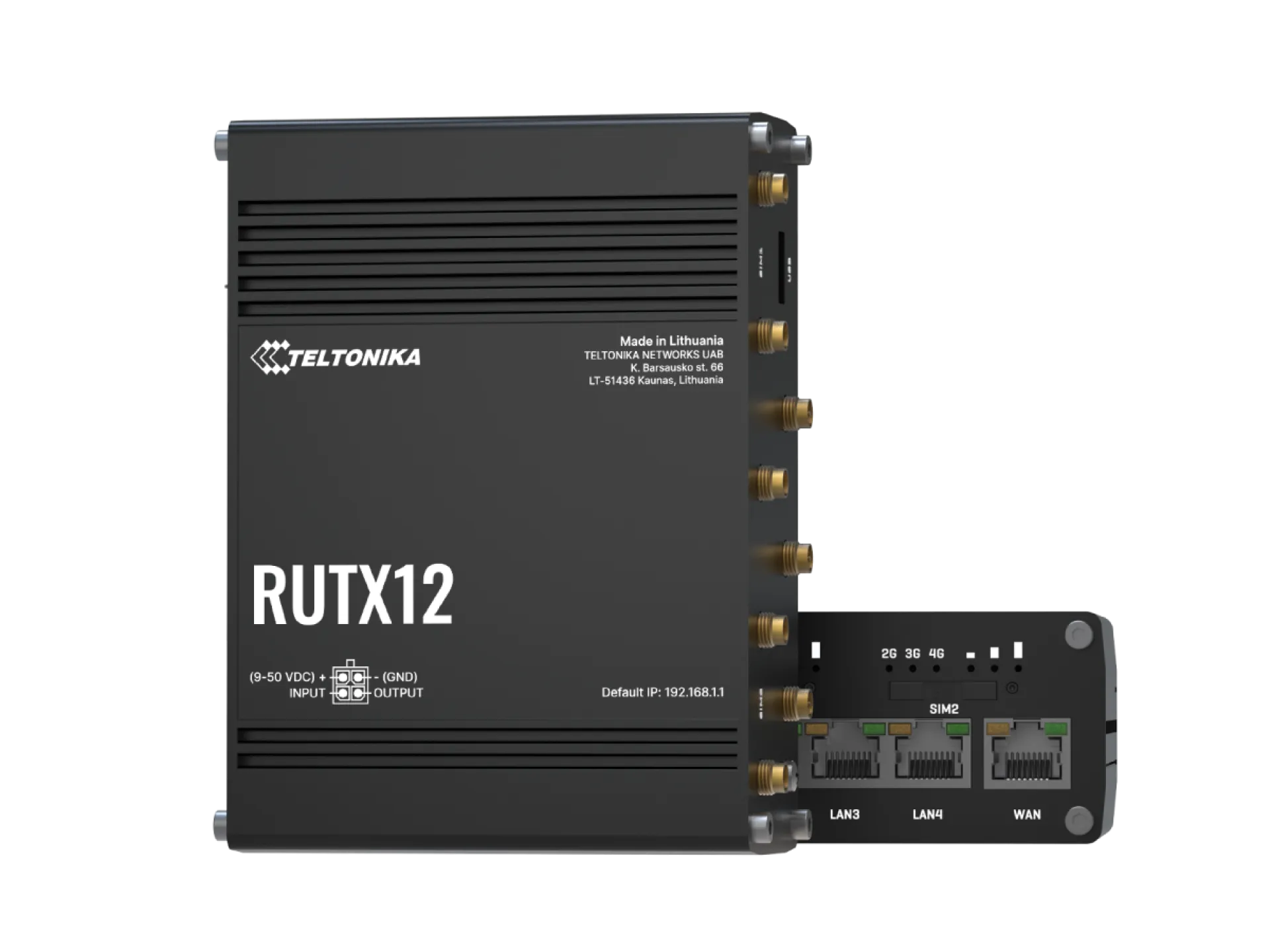

RUTX12 - Router Công Nghiệp Dual LTE Cat 6 Teltonika - Load Balancing

2 x 4G LTE Cat 6 up to 300 DL/50 UL Mbps; 3G up to 42 DL/ 5.76 UL Mbps

Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans

Dual SIM and eSIM, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection

IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC

SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

Supports sending and reading Unstructured Supplementary Service Data messages

Operator block/allow list (by country or separate operators)

Possibility to use different PDNs for multiple network access and services

Band lock, Used band status display

Provides the possibility to configure the router to periodically switch to the unused SIM card and establish a data connection in order to prevent the SIM card from being blocked

SIM PIN code management enables setting, changing, or disabling the SIM card's PIN

Direct connection (bridge) between mobile ISP and device on LAN

Router assigns its mobile WAN IP address to another device on LAN

802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)

WPA2-Enterprise:PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)

SSID stealth mode and access control based on MAC address

Up to 150 simultaneous connections

Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)

Allowlist, blocklist

Once scanned, a user will automatically enter your network without needing to input login information

Forward Wi-Fi hotspot landing page to a subsequent connected device

Bluetooth low energy (LE) for short range communication

1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN

H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

Port forward, traffic rules, custom rules, TTL target customisation

View all your Firewall statistics, rules, and rule counters

View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on

Visual representation of your network, showing which devices are connected to which other devices

Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes

Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards

Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

Supported >25 service providers, others can be configured manually

DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS

Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover

Balance Internet traffic over multiple WAN connections

Possibility to mount remote file system via SSH protocol

Initial virtual routing and forwarding (VRF) support

Real-time monitoring, wireless signal charts, traffic usage history

Security

802.1x

802.1x Port-based network accesscontrol client

Authentication

Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator

Firewall

Firewall Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64Attack prevention

Attack prevention

Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scanattacks)

VLAN

VLAN Port and tag-based VLAN separation

Mobile quota control

Mobile quota control Mobile data limit, customizable period, start time, warning limit,phone number

WEB filter

WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

Access control

Access control Flexible access controlof SSH, Web interface, CLI and Telnet

TPM*

TPM* Identification andauthentication module, TPM 2.0 standard

*

*Feature availability varies by order code

SSL certificate

SSL certificate generation Let's Encrypt and SCEP certificate generation methods

VPN

OpenVPN

OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods

OpenVPN Encryption

OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

IPsec

IPsec XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

GRE

GRE GRE tunnel, GRE tunnel over IPsec support

PPTP, L2TP

PPTP, L2TP Client/Server instancescan run simultaneously, L2TPv3, L2TP over IPsec support

Stunnel

Stunnel Proxy designed to add TLS encryption functionality to existing clientsand servers without any changes in the program’s code

DMVPN

DMVPN Method of buildingscalable IPsec VPNs,Phase 2 and Phase 3 and Dual Hub support

SSTP

SSTP SSTP client instancesupport

ZeroTier

ZeroTier ZeroTier VPN client support

WireGuard

WireGuard WireGuard VPN client and server support

Tinc

Tinc Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

Tailscale

Tailscale Tailscale offers speed,stability, and simplicity over traditional VPNs. Encrypted point- to-point connections using the open source WireGuard protocol

OPC UA

Supported modes

Supported modes Client, Server

Connection types

Supported connection types TCP

MODBUS

Supported modes

Supported modes Server, Client

Connection types

Supported connection types TCP, USB

Custom registers

Custom registers MODBUS TCP customregister block requests,which read/write to a file inside the router, and can be used to extend MODBUSTCP Client functionality

Data formats

Supported data formats 8-bit: INT, UINT; 16-bit:INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

DATA TO SERVER

Protocol

Protocol HTTP(S), MQTT, Azure MQTT

Data to server

Data to server Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

MQTT Gateway

Modbus MQTT

Modbus MQTT Gateway Allows sending commands and receiving data from MODBUSServer through MQTT broker

DNP3

Supported modes

Supported modes Station, Outstation

Connection

Supported connection TCP, USB

DLMS/COSEM

DLMS Support

DLMS Support DLMS - standard protocolfor utility meter data exchange

Supported modes

Supported modes Client

Connection types

Supported connection types TCP, USB

API

Web API

Teltonika Networks Web API (beta)support

Documentation

Expandyour device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Monitoring

WEB UI

WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmwareupdate availability notifications, event log, systemlog, kernel log, Internet status

FOTA

FOTA Firmware update from server, automaticnotification

SSH

SSH SSH (v1, v2)

SMS

SMS SMS status, SMS configuration

Call

Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off

TR-069

TR-069 OpenACS, EasyCwmp, ACSLite,tGem, LibreACS, GenieACS,FreeACS, LibCWMP, Friendly tech, AVSystem

MQTT

MQTT MQTT Broker, MQTT publisher

SNMP

SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection

JSON-RPC

JSON-RPC Management API over HTTP/HTTPS

RMS

RMS Teltonika Remote ManagementSystem (RMS)

IoT Platforms

ThingWorx

ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type

Cumulocity

Cumulocity - Cloud of Things Allows monitoring of: DeviceModel, Revision and Serial Number,WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has rebootand firmware upgrade actions

Azure IoT Hub

Azure IoT Hub Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoTHub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs

AWS IoT Core

AWS IoT Core Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality

System Char.

CPU

CPU Quad-core ARM Cortex A7, 717 MHz

RAM

RAM 256 MB, DDR3

FLASH storage

FLASH storage 256 MB, SPI Flash

Firmware

WEB UI

WEB UI Update FW from file, check FW on server, configuration profiles, configurationbackup

FOTA

FOTA Update FW

RMS

RMS Update FW/configuration for multiple devices at once

Keep settings

Keep settings Update FW without losingcurrent configuration

Factory reset

Factory settings reset A full factory resetrestores all systemsettings, including the IP address,PIN, and user data to the default manufacturer's configuration

Customisation

OS

Operating system RutOS (OpenWrt based Linux OS)

Languages

Supported languages Busybox shell,Lua, C, C++, and Python,Java in Package manager

Dev tools

Development tools SDK package with build environment provided

GPL

GPL customization You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs

Package Manager

Package Manager The PackageManager is a service used to installadditional software on the device

Location

GNSS

GNSS GPS, GLONASS, BeiDou, Galileo and QZSS

Coordinates

Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS

NMEA

NMEA NMEA 0183

NTRIP

NTRIP NTRIP protocol (NetworkedTransport of RTCM via Internet Protocol)

Server software

Server software Supported server software TAVL, RMS

Geofencing

Geofencing Configurable multiplegeofence zones

USB

Data rate

Data rate USB 2.0

Applications

Applications Samba share, USB-to-serial

External devices

External devices Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter

Storage formats

Storage formats FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Input / Output

Input

Input 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high

Output

Output 1 x DigitalOutput, Open collectoroutput, max output30 V, 300 mA

Events

Events Email, RMS, SMS

I/O juggler

I/O juggler Allows to set certain I/O conditions to initiate event

Power

Connector

Connector 4-pin industrial DC power socket

Voltage range

Input voltage range 9 - 50 VDC, reverse polarityprotection, voltage surge/transient protection

PoE (passive)

PoE (passive) Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC

Consumption

Power consumption Idle: < 4 W, Max: < 22 W

Interfaces

Ethernet

Ethernet 5 x RJ45 ports,10/100/1000 Mbps

I/O’s

I/O’s 1 x Digital Input, 1 x Digital Output on 4-pin power connector

Status LEDs

Status LEDs 4 x connection status LEDs, 6 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1 x Power LED, 2 x 2.4G and 5G Wi-Fi LEDs

SIM

SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders

Antennas

Antennas 4 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth,1 x SMA for GNNS

USB / Reset

1 x USB A port / Reboot button / 1 x Grounding screw

Physical

Dimensions

Dimensions (W x H x D) 132 x 44.2 x 95.1 mm

Weight

Weight 540 g

Environment

Temperature

Operating temperature -40 °C to 75 °C

IP Rating

Ingress ProtectionRating IP30

Regulatory

Standards

Regulatory CE, UKCA, EAC, UCRF, CITC, ANRT, ICASA, NOM, Anatel, RCM, SIRIM, NTC, NBTC, CB, E-mark

EMC/Safety

EMC

EN 55032, EN 55035, EN IEC 61000, EN 301 489 series

Safety

Safety Standards CE: EN IEC 62368-1:2020 + A11:2020 RCM: AS/NZS62368.1:2018 CB: IEC 62368-1:2018
