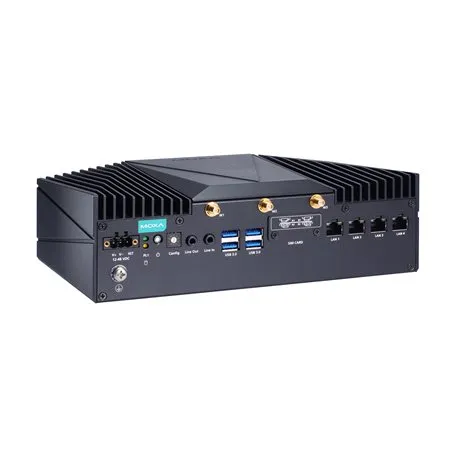

V2403C-KL3-T: x86 computer with Intel® 7th Gen Core™ i3-7100U 2.4 GHz processor, 4 GbE ports, 4 COM ports, 4 DIs, 4 DOs, 1 HDMI/DP port, 1 mSATA slot, 2 2,5" SSD/HDD slots, 2 mPCIe slots, 4 USB ports, 12 to 48 VDC, -40 to 70°C operating temperature

CPU

V2403C-KL1-T: Intel® Celeron® 3965U processor (2M Cache, 2.2 GHz) V2403C-KL3-T: Intel® Core™ i3-7100U processor (3M Cache, 2.4 GHz) V2403C-KL5-T: Intel® Core™ i5-7300U processor (3M Cache, 2.6 GHz) V2403C-KL7-T: Intel® Core™ i7-7600U processor (4M Cache, 2.8 GHz)

Storage Slot

2.5-inch HDD/SSD slots x 2 mSATA slots x 1

Supported OS

Windows 10 Embedded IoT Ent 2019 LTSC 64-bit Windows 10 Embedded IoT Ent 2021 LTSC 64-bit

Linux Debian 9 image

Linux Debian 11/Ubuntu 20.04/CentOS 7.9 drivers

System Memory Slot

SODIMM DDR4 slot x 2

DRAM

32 GB max

Graphics Controller

Celeron Model: Intel HD Graphics 610 i3/i5/i7 Models: Intel HD Graphics 620

Ethernet Ports

Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4

Serial Ports

RS-232/422/485 ports x 4, software selectable (DB9 male)

Digital Output

DOs x 4

Digital Input

DIs x 4

USB 3.0

USB 3.0 hosts x 4, type-A connectors

Audio Input/Output

Line in x 1, Line out x 1, 3.5 mm phone jack

Video Output

HDMI x 1, HDMI connector (standard) DP x 1, DisplayPort connector (standard)

Wi-Fi Antenna Connector

RP-SMA x 3

Cellular Antenna Connector

SMA x 2

(optional)

GPS Antenna Connector

SMA x 1

(optional)

Expansion Slots

mPCIe slots x 2

SIM Format

Micro

Number of SIMs

4

Connector

Screw-fastened Euroblock terminal

I/O Mode

DI

Isolation

3k VDC

Sensor Type

Wet contact (NPN or PNP) Dry contact

Dry Contact

Logic 0: Short to GND Logic 1: Open

Wet Contact (DI to COM)

Logic 0: 0 to 3 VDC

Logic 1: 10 to 30 VDC

Connector

Screw-fastened Euroblock terminal

Current Rating

200 mA per channel

I/O Type

Sink

Voltage

0 to 30 VDC

Isolation

3k VDC

System

Power x 1

Storage x 1

LAN

2 per port (10/100/1000 Mbps)

Serial

2 per port (Tx, Rx)

Baudrate

50 bps to 115.2 kbps

Connector

DB9 male

ESD

Contact: 6 kV; Air: 8 kV (level 3)

Isolation

2 kV

Data Bits

5, 6, 7, 8

Flow Control

RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)

Parity

None, Even, Odd, Space, Mark

Stop Bits

1, 1.5, 2

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

Data+, Data-, GND

RS-485-4w

Tx+, Tx-, Rx+, Rx-, GND

Input Voltage

12 to 48 VDC

Power Connector

Terminal block

Power Consumption (Max.)

70 W (max.)

Switch Type

Rotary (front panel)

Switch Settings

Setting 0: IGT function disabled

Setting 1: PWR ON delay: 0.5 sec; PWR OFF delay: 30 sec Setting 2: PWR ON delay: 1 sec; PWR OFF delay: 30 sec Setting 3: PWR ON delay: 1 sec; PWR OFF delay: 60 sec Setting 4: PWR ON delay: 2 sec; PWR OFF delay: 60 sec Setting 5: PWR ON delay: 2 sec; PWR OFF delay: 90 sec Setting 6: PWR ON delay: 3 sec; PWR OFF delay: 90 sec Setting 7: PWR ON delay: 3 sec; PWR OFF delay: 150 sec Setting 8: PWR ON delay: 4 sec; PWR OFF delay: 180 sec Setting 9: PWR ON delay: 5 sec; PWR OFF delay: 180 sec

Housing

Aluminum

IP Rating

IP20

Dimensions (without ears)

250 x 75 x 150 mm (9.84 x 2.95 x 5.91 in)

Weight

2,500 g (5.51 lb)

Installation

Wall mounting (standard)

Operating Temperature

-40 to 70°C (-40 to 158°F)

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

EMC

EN 55032/35

EMI

CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV

IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m

IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV

IEC 61000-4-5 Surge: Power: 2 kV

IEC 61000-4-6 CS: 10 V

IEC 61000-4-8 PFMF

Safety

EN 62368-1

IEC 62368-1

UL 62368-1

Railway

EN 50121-4

Shock

IEC 60068-2-27, IEC 61373, MIL-STD-810G

Vibration

IEC 60068-2-64, IEC 61373, MIL-STD-810G

Green Product

RoHS, CRoHS, WEEE

Time

464,506 hrs

Standards

Telcordia (Bellcore), GB

Model Name

CPU

Memory (built-in)

Optional OS Storage (mSATA)

Optional SSD/HDD

USB Ports

Power Input

Operating Temp.

Conformal Coating

V2403C-KL1-T

Intel® Celeron® 3965U

–

1

2

4 x USB 3.0

(type A)

12 to 48 VDC

(Terminal Block)

-40 to 70°C

–

V2403C-KL3-T

Intel® Core™ i3-7100U

–

1

2

4 x USB 3.0

(type A)

12 to 48 VDC

(Terminal Block)

-40 to 70°C

–

V2403C-KL5-T

Intel® Core™ i5-7300U

–

1

2

4 x USB 3.0

(type A)

12 to 48 VDC

(Terminal Block)

-40 to 70°C

–

V2403C-KL7-T

Intel® Core™ i7-7600U

–

1

2

4 x USB 3.0

(type A)

12 to 48 VDC

(Terminal Block)

-40 to 70°C

–
