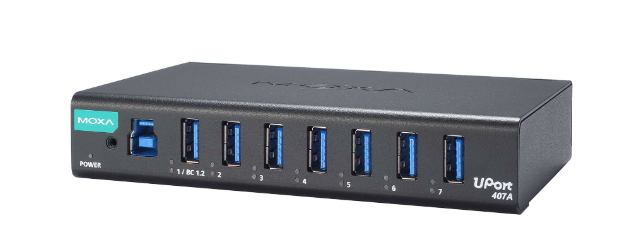

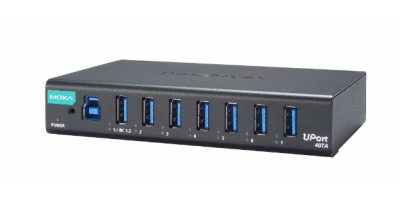

UPort 407A: 7-port industrial-grade USB 3.2 hubs

USB Interface:

• USB Standards
  • USB 3.2 Gen 1
  • USB 1.1/2.0 compliant

• Speed

  • 5 Gbps

• USB Connector

  • UFP: type B
    DFP: type A

• No. of USB Ports

  • 8 (UFP: 1, DFP 7)

Power Parameters

• Input Voltage

  • 12 to 48 VDC
    No. of power inputs: 2

• Power Connector

  • Power jack
    3-pin terminal block

• Reverse Polarity Protection

  • Supported

• Input Current

  • 4.75 A @ 12 VDC

• Output Power Rating

  • Port 1: 900 mA / 1500 mA @ 5 VDC, BC 1.2 compliant
    Rest of ports: 900 mA @ 5 VDC

Physical Characteristics

• Housing

  • Metal

• Dimensions

  • 80 x 27 x 140 mm (3.15 x 1.06 x 5.51 in)

• Weight

  • 350 g (0.77 lb)

• Installation

  • Wall mounting (with optional kit)
    DIN-rail mounting (with optional kit)

Environmental Limits

• Operating Temperature

  • 0 to 60°C (32 to 140°F)

• Storage Temperature (package included)

  • -20 to 75°C (-4 to 167°F)

• Ambient Relative Humidity

  • 5 to 95% (non-condensing)

Standards and Certifications

• EMC

  • EN 55032/35

• EMI

  • CISPR 32, FCC Part 15B Class A

• EMS

  • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m
    IEC 61000-4-8 PFMF

• Safety

  • EN 62368-1
    UL 62368-1
    KC

• Environmental Testing

  • IEC 60068-2-1

• Freefall

  • IEC 60068-2-34

Declaration

• Green Product

  • RoHS, CRoHS, WEEE

MTBF

• Standards

  • Telcordia (Bellcore), GB

Time
