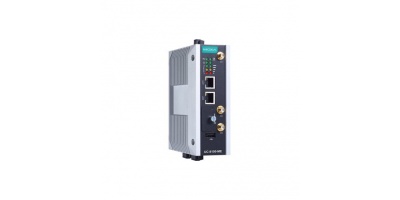

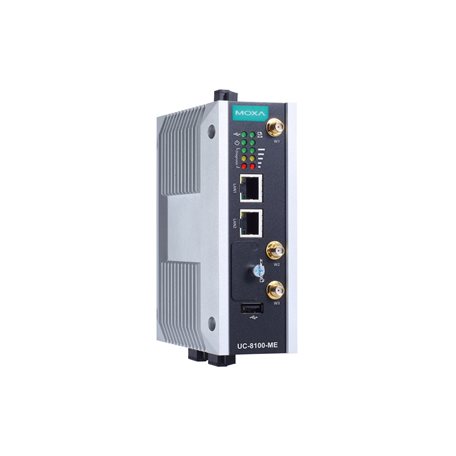

UC-8100-ME-T Series: Arm-based wireless-enabled DIN-rail industrial computer with 2 serial ports and 2 LAN ports

Armv7 Cortex-A8 1 GHz

4 GB eMMC

DRAM

UC-8112-ME-T-LX Series: 512 MB DDR3
UC-8112-ME-T-LX1 Series: 1 GB DDR3

Pre-installed OS

Linux Debian 8 (Linux kernel v4.1)

Number of SIMs

USB 2.0

Buttons

1

USB 2.0 hosts x 1, type-A connectors

Reset button

Ethernet Ports

Magnetic Isolation Protection

Auto-sensing 10/100 Mbps ports (RJ45 connector) x 2

N/A, 1.5 kV (built-in)

Serial Ports

Console Port

Data Bits

Parity

Stop Bits

2 x RS-232/422/485

1 x 4-pin header to DB9 console port

5, 6, 7, 8

None, Even, Odd, Space, Mark

1, 1.5, 2

Input Voltage

Input Current

Power Consumption

12 to 36 VDC

500 mA @ 12 VAC

6 W

-40 to 85°C (-40 to 185°F)

2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without any USB devices attached)

141 x 125.6 x 54.8 mm (5.55 x 4.94 x 2.15 in)

550 g (1.22 lb)

Alert Tools

Automatic Reboot Trigger

External RTC (real-time clock)

External WDT (watchdog timer)

IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV

IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 0.5 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF
