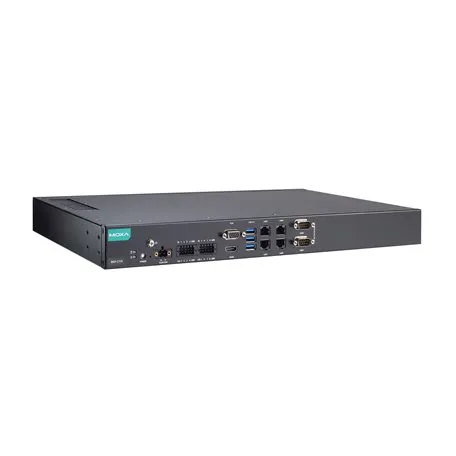

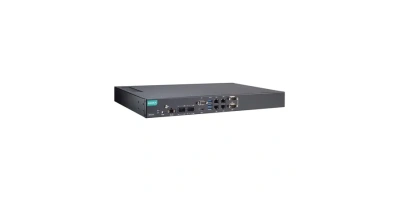

RKP-C110-C1-T-Win10: Rackmount 1U computer with Intel® Celeron® 6305E processor, 4 LAN ports, 2 serial ports, 8 DIs, 8 DOs, 3 USB 3.0 ports, 1 VGA port, 1 HDMI port, 2 SSD slots, 12/24 VDC power input, Windows 10 LTSC 2021 preinstalled, -30 to 60°C operat

CPU

RKP-C110-C1 Series: Intel® Celeron® 6305E "(Dual core, 4M cache, 1.80 GHz)

RKP-C110-C5 Series: Intel® Core™ Processor i5-1145G7E (Quad core, 8M cache, 2.60 GHz, Base:1.50 GHz)

RKP-C110-C7 Series: Intel® Core™ Processor i7-1185G7E (Quad core, 12M cache, 2.80 GHz, Base:1.80 GHz)

System Memory Slot

SODIMM DDR4 slots x 1, up to 32 GB max.

System Memory Pre-installed

8 GB DDR4

Storage Slot

2.5-inch SSD slots x 2 (SATAIII interface) RAID 0/1 support

Storage Pre-installed

8 GB

Supported OS

Windows Images and Drivers Supported:

- Windows 10 IoT Ent LTSC 2021 64-bit

- Windows 11 Professional 64-bit

Linux Drivers Supported:

- Debian 11 (Kernel 5.10)

- Ubuntu 22.04 LTS (Kernel 5.15)

- RHEL 9 (Kernel 5.14)

Graphics Controller

Intel® UHD Graphics

Ethernet Ports

RKP-C110-C1-8L-T/C5-8L-T/C7-8L-T Models:

Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 12 RKP-C110-C1-2L4C-T/C5-2L4C-T/C7-2L4C-T Models:

Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 6 All Other Models:

Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4

Serial Ports

RKP-C110-C1-8C-T/C5-8C-T/C7-8C-T Models:

RS-232/422/485 ports x 10, software selectable (DB9 male) RKP-C110-C1-2L4C-T/C5-2L4C-TC7-2L4C-T Models:

RS-232/422/485 ports x 6, software selectable (DB9 male) All Other Models:

RS-232/422/485 ports x 2, software selectable (DB9 male)

USB 3.0

USB 3.0 hosts x 3, type-A connectors

Digital Input

DIs x 8

Digital Output

DOs x 8

TPM

TPM v2.0

Video Output

HDMI 2.0b x 1, (type A connector)

VGA x 1, 15-pin D-sub connector (female)

Buttons

Reset button Power button

Magnetic Isolation Protection

1.5 kV (built-in)

Baudrate

50 bps to 115.2 kbps

Connector

DB9 male

Data Bits

5, 6, 7, 8

Parity

None, Even, Odd, Space, Mark

Stop Bits

1, 1.5, 2

Flow Control

RTS/CTS, XON/XOFF

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

Data+, Data-, GND

RS-485-4w

Tx+, Tx-, Rx+, Rx-, GND

Connector

Spring-type Euroblock terminal

Sensor Type

Dry contact

Dry Contact

Logic 0: Short to GND Logic 1: Open

Connector

Spring-type Euroblock terminal

I/O Type

Sink

Current Rating

200 mA per channel

Voltage

0 to 24 VDC

System

Power x 1

Storage x 1

LAN

2 per port (10/100/1000 Mbps)

Input Voltage

12/24 VDC

Power Connector

Screw-fastened Euroblock terminal

Power Consumption

90 W

Housing

Metal

IP Rating

IP20

Dimensions

440 x 230 x 43.6 mm (17.32 x 9.06 x 1.72 in)

Weight

RKP-C110-C1-8C-T/C5-8C-T/C7-8C-T Models:

3,610 g (7.95 Ib)

RKP-C110-C1-2L4C-T/C5-2L4C-T/C7-2L4C-T Models: 3,540 g (7.80 Ib)

RKP-C110-C1-8L-T/C5-8L-T/C7-8L-T Models:

3,800 g (8.37 Ib)

RKP-C110-C1-T/C5-T/C7-T/C1-T-Win10/C5-T-Win10/C7-T-Win10 Models: 3,350 g (7.38 Ib)

Installation

Rack mounting (standard 1U)

Operating Temperature

-30 to 60°C (-22 to 140°F)

Storage Temperature

-40 to 75°C (-40 to 167°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

EMC

EN 55032/35

EMI

CISPR 32, FCC Part 15B Class A BSMI

EMS

IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV

IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m

IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV

IEC 61000-4-5 Surge: Power: 0.5 kV, Signal: 1 kV

IEC 61000-4-6 CS: 3 V

IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz

Safety

UL 62368-1 (CB) BSMI

Shock

IEC 60068-2-27

Vibration

IEC 60068-2-64

Package Drop Test

ISTA 1A

Package Vibration Test

ISTA 1A

Green Product

RoHS, CRoHS, WEEE

Time Source

Built-in RTC (real-time clock) with lithium-battery backup

Automatic Reboot Trigger

Built-in WDT

Time

493,336 hrs

Standards

Telcordia (Bellcore), GB
