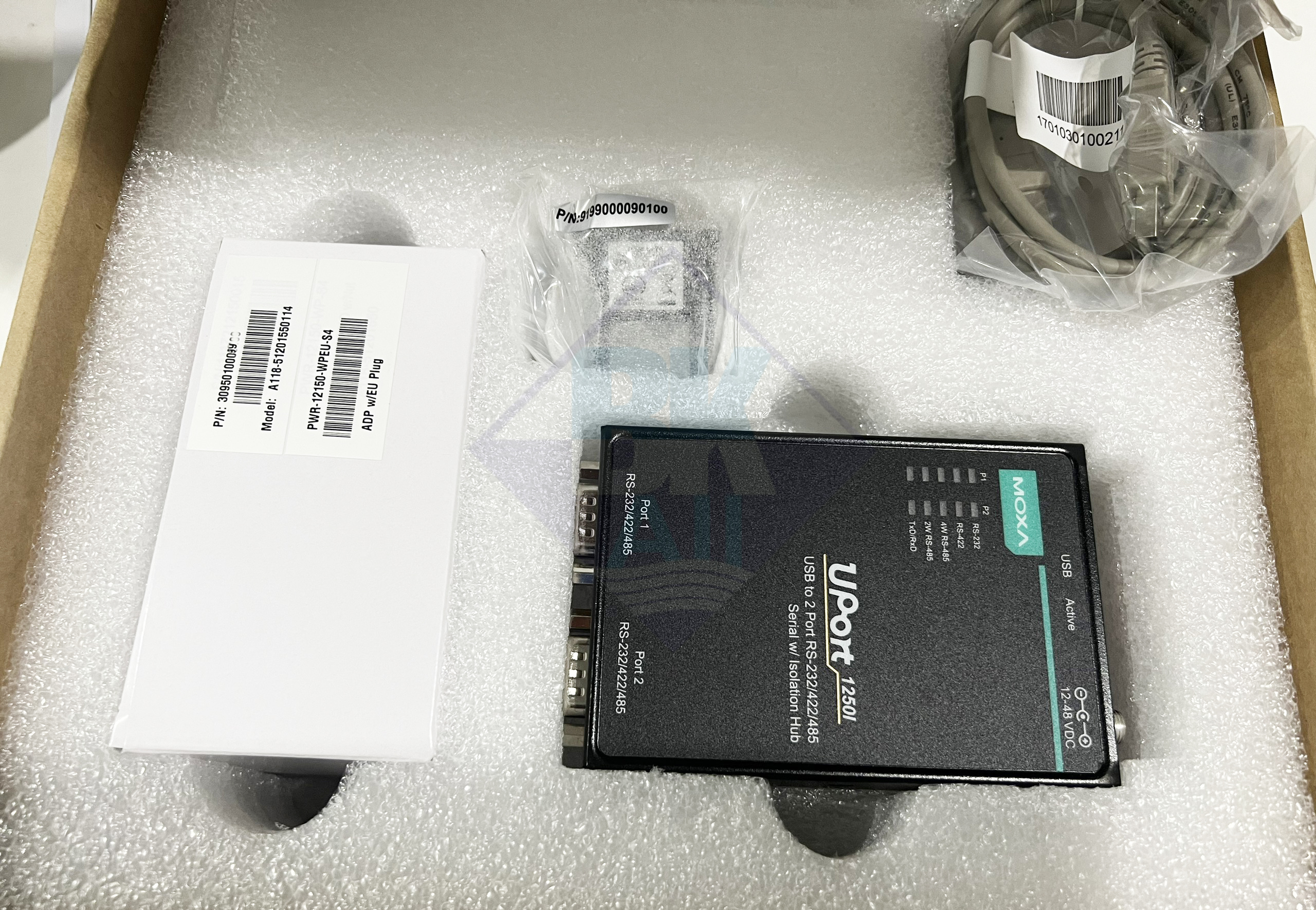

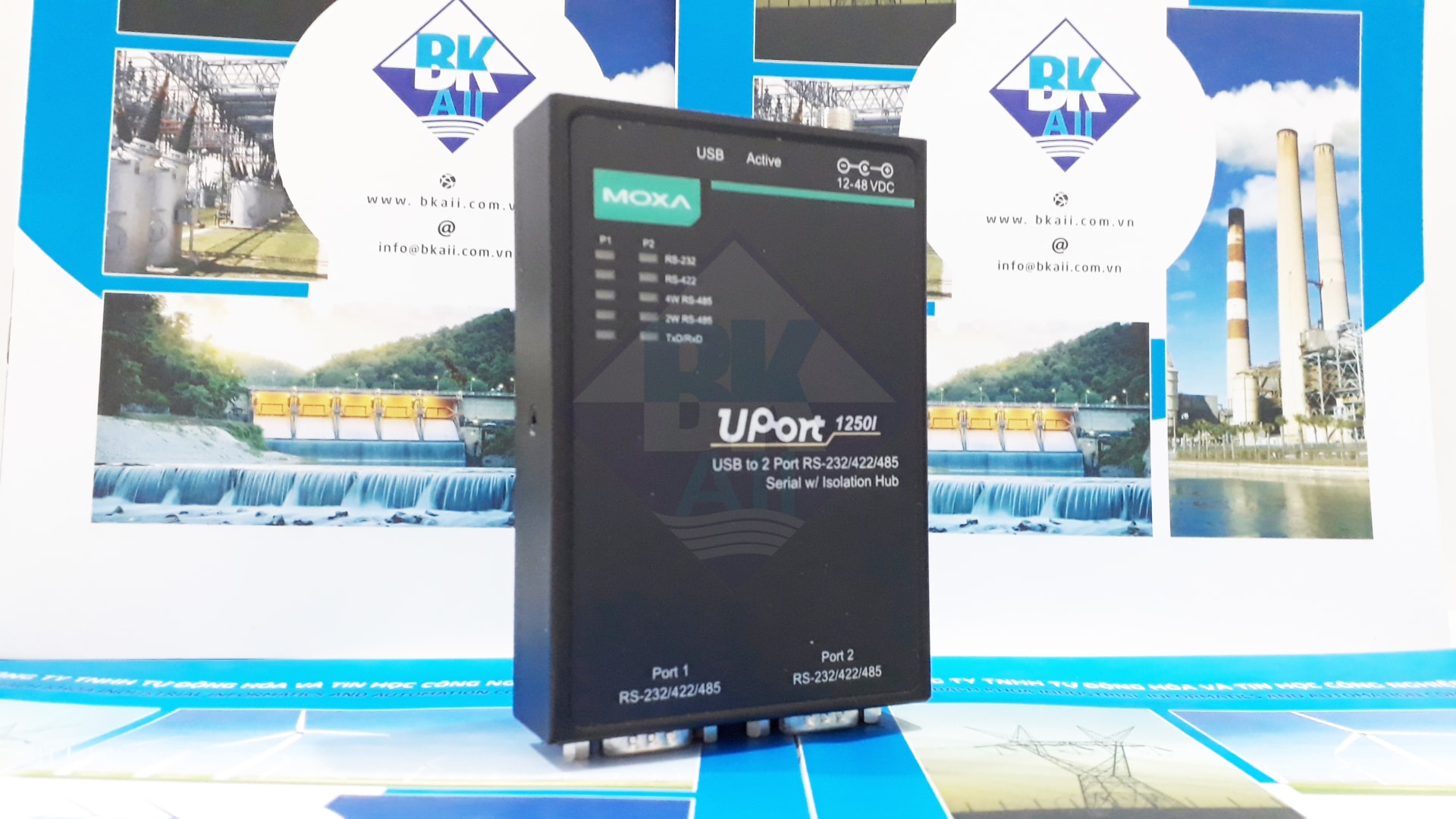

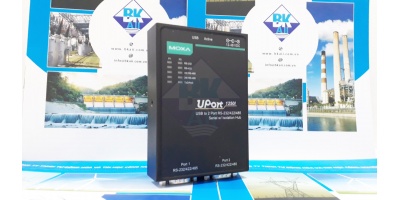

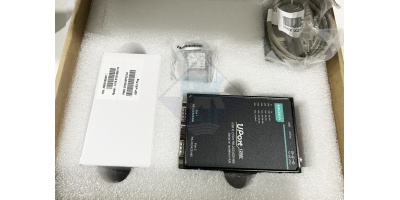

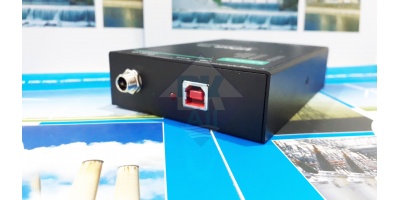

Uport 1250L là bộ chuyển đổi tín hiệu USB sang 2 cổng RS232/422/485 cách ly 2 KV của hãng Moxa-Taiwan được BKAII đang phân phối rộng rãi tại thị trường Việt Nam.
Bộ chuyển đổi Uport 1250L là sản phẩm được thiết kế theo tiêu chuẩn công nghiệp, nhỏ gọn, dễ dàng lấy được tín hiệu về PLC, máy tính, vi xử lý, máy tính nhúng,... Sản phẩm hiện đang được sử dụng trong các bài toán M2M, IoT của các lĩnh vực: Điện lực, khí tượng thủy văn, giao thông thông minh, hệ thống kiểm soát an ninh, …
Tính năng sản phẩm
- Hi-Speed USB 2.0 for up to 480 Mbps USB transmission
- 128-byte FIFO and on-chip H/W, S/W flow control
- 15N high retention type B connector
- Supports fixed-base COM Utility for setting the initial extended COM port number
- Drivers provided for Windows, WinCE, and Linux
- LEDs for easy monitoring
- Locking power jack
Thông tin kỹ thuật của sản phẩm
• USB Interface |
Compliance |
USB 1.1/2.0 compliant |

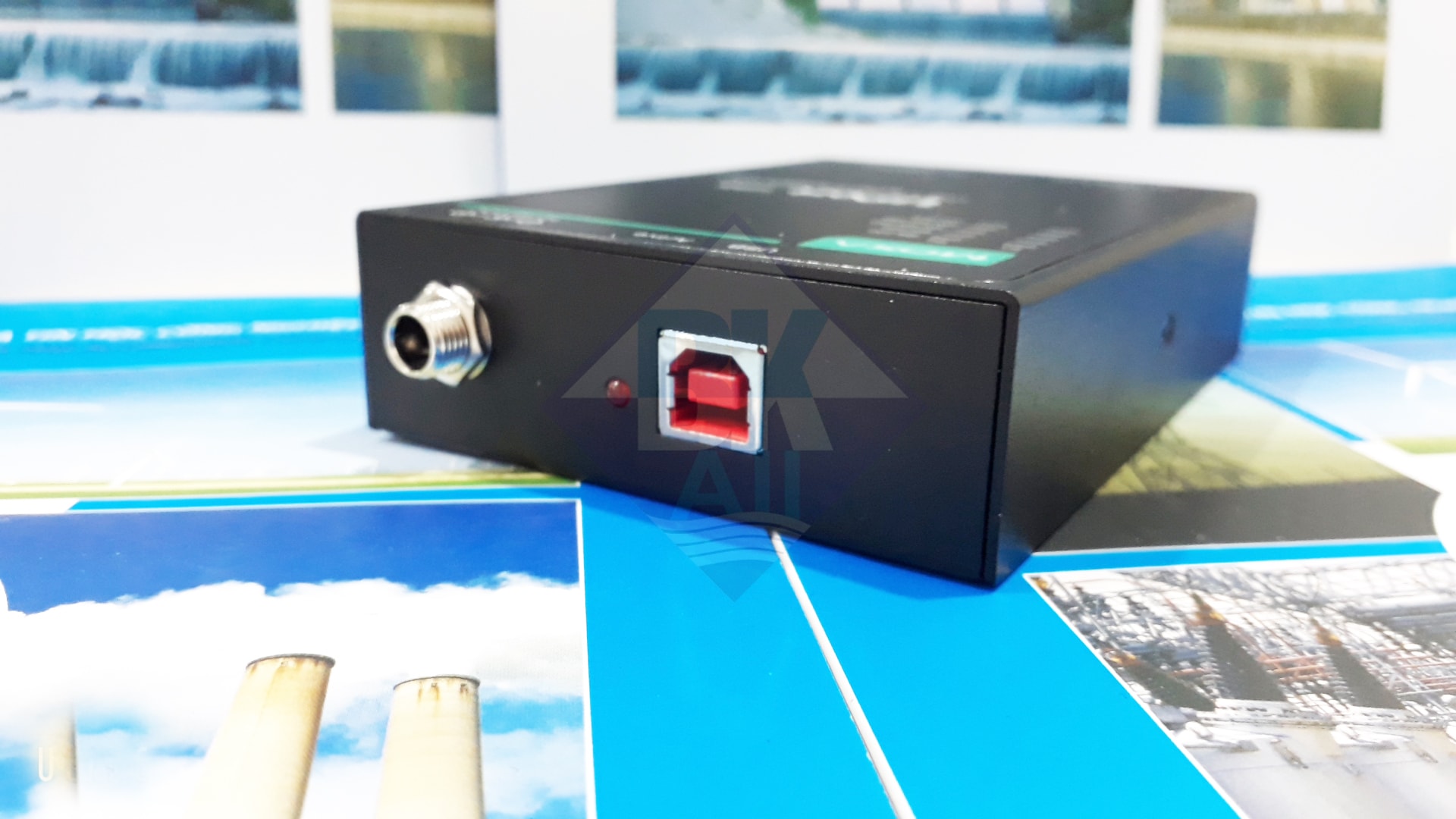

Connector |
USB Type B |
Speed |
480 Mbps (Hi-Speed USB) and 12 Mbps (Full-Speed USB) |
• Serial Interface |
Number of Ports |
2 |
Serial Standards |
RS-232/422/485 |

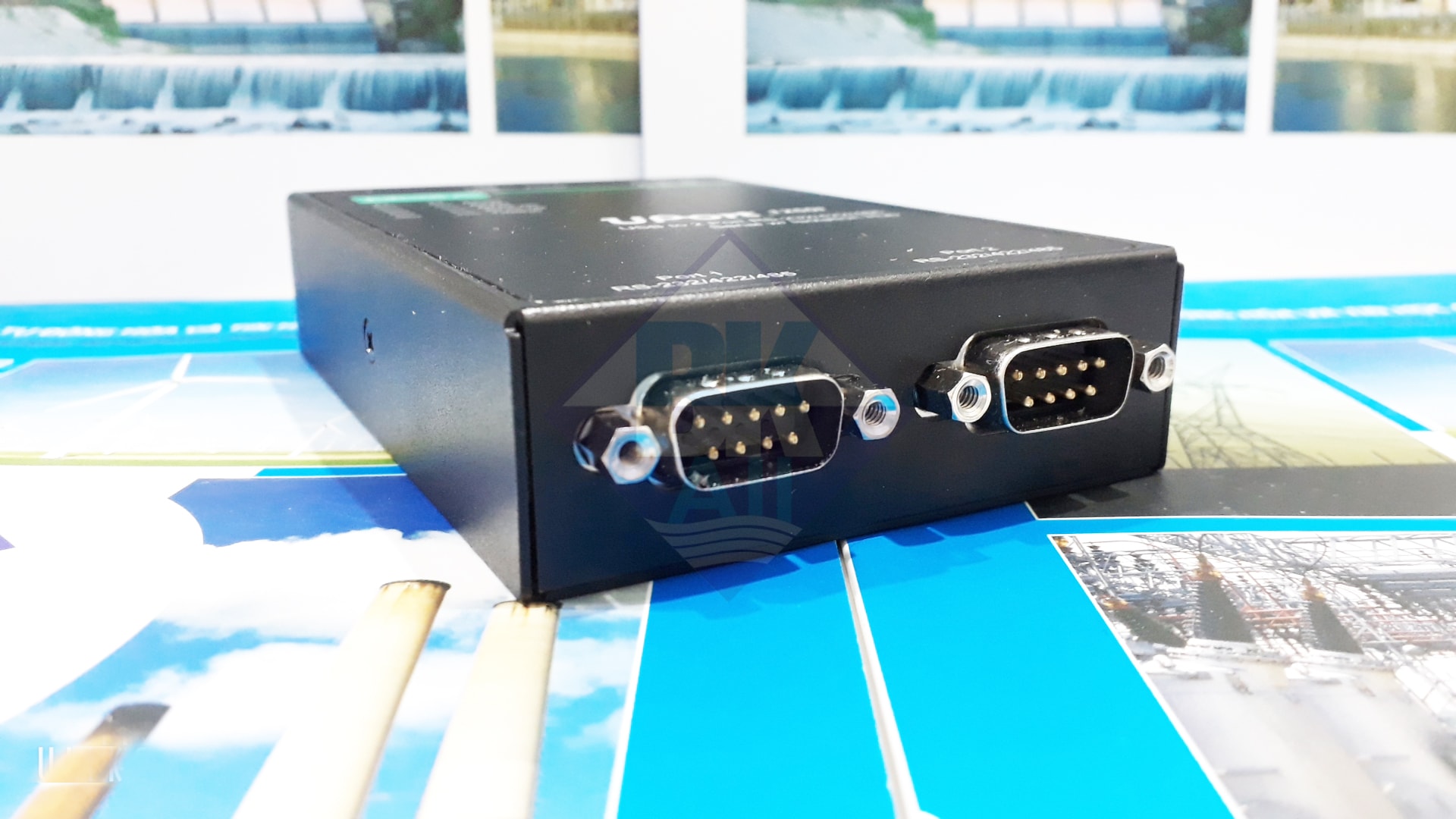

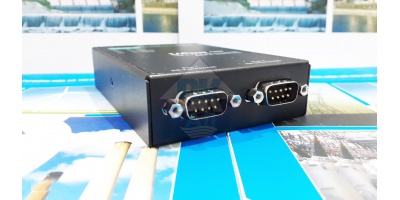

Connector |
DB9 male |
Electrical Isolation |
2 kV (UPort 1250I only) |
• Performance |
Baudrate |
50 bps to 921.6 kbps (including 500 kbps) |
• Serial Communication Parameters |
Data Bits |
5, 6, 7, 8 |
Stop Bits |
1, 1.5, 2 |
Parity |
None, Even, Odd, Space, Mark |
Flow Control |
RTS/CTS, XON/XOFF |
FIFO |
128 bytes |

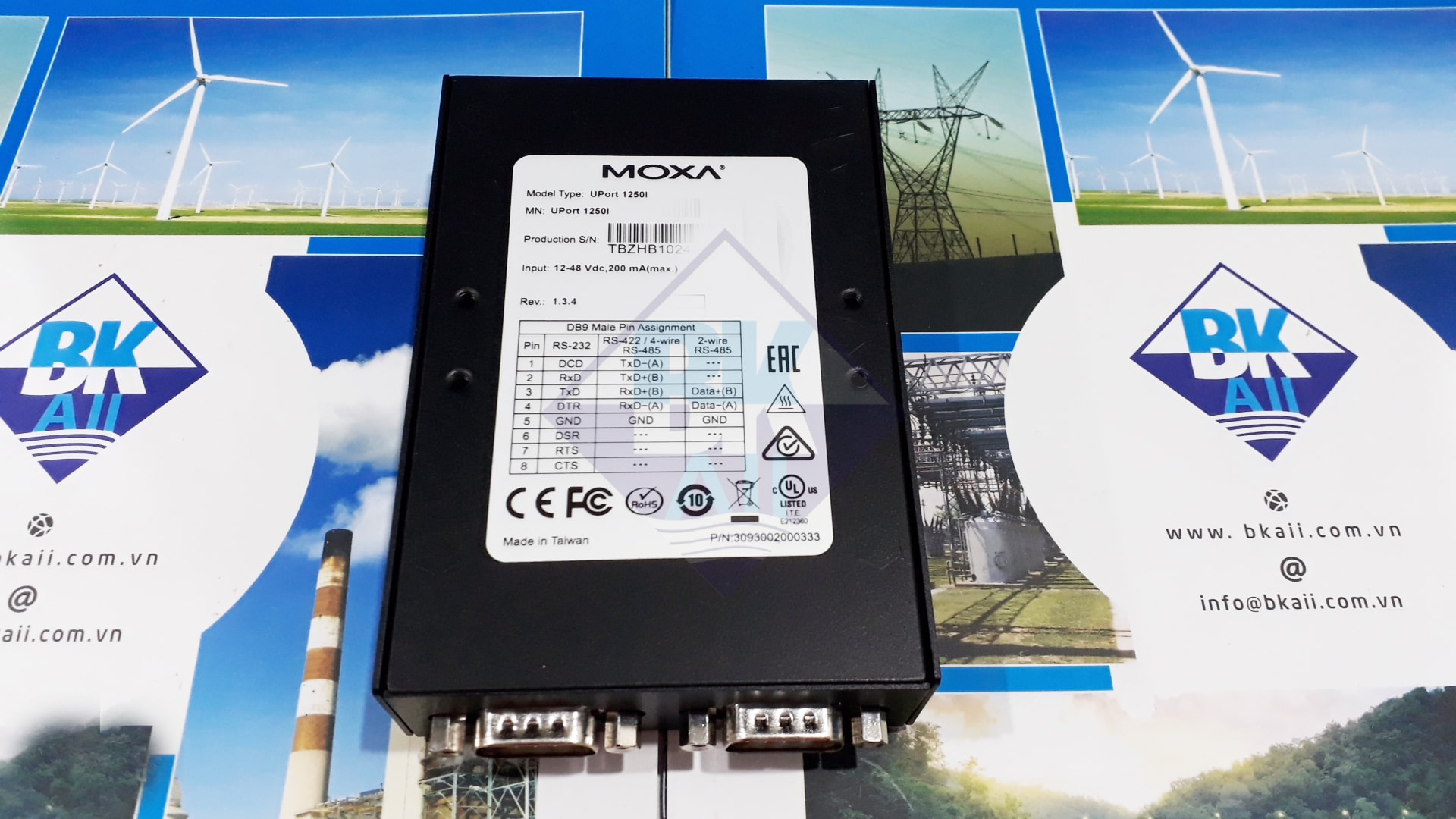

• Serial Signals |
RS-232 |
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
RS-422 |
TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND |
RS-485-4w |
TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND |
RS-485-2w |
Data+(B), Data-(A), GND |
RS-485 Data Direction |
ADDC® (Automatic Data Direction Control) |
• Operating Systems |
Windows Real COM Drivers |
Windows 2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2012 (x64), Windows Embedded CE 5.0/6.0 |
Linux Real TTY Drivers |
Linux 2.4.x, 2.6.x, 3.x |
Android Driver |
Android 3.1.x and later Note: Please refer to Moxa’s website for the latest driver support information. |
• Physical Characteristics |
Housing |
SECC sheet metal (1 mm) |
Weight |
Product only: 180 g (0.40 lb) Packaged: UPort 1250: 370 g (0.82 lb) UPort 1250I: 680 g (1.5 lb) |
Dimensions |
77 x 26 x 111 mm (3.03 x 1.02 x 4.37 in) |
• Environmental Limits |
Operating Temperature |
0 to 55°C (32 to 131°F) |
Storage Temperature |
-20 to 75°C (-4 to 167°F) |
Ambient Relative Humidity |
5 to 95% (non-condensing) |
• Standards and Certifications |
Safety |
UL 60950-1 |
EMC |
EN 55032/24 |
EMI |
CISPR 32, FCC Part 15B Class A |
EMS |
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m IEC 61000-4-8 PFMF |
Green Product |
RoHS, CRoHS, WEEE |
• Power Requirements |
Input Voltage |
UPort 1250: 5 VDC UPort 1250I: 12 to 48 VDC |
Input Current |
UPort 1250: 360 mA @ 5 VDC UPort 1250I: 200 mA @ 12 VDC |
• MTBF (mean time between failures) |
Time |
563,179 hrs |
Standard |
Telcordia (Bellcore), GB |
• Warranty |
Warranty Period |
5 years |
Details |
See www.moxa.com/warranty |
Mã sản phẩm
Phụ kiện tùy trọn
Chuẩn kết nối
