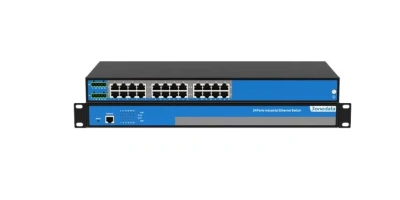

IES5100-24T-2HV: Switch công nghiệp 24 cổng Layer 2 Managed

Standard & Protocol

IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX and 100Base-X IEEE 802.3x for Flow Control

IEEE 802.1D for Spanning Tree Protocol

IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1Q for VLAN

IEEE 802.1p for CoS

IEEE 802.1X for 802.1X Authentication IEEE 802.1AB for LLDP

Management

SNMP v1/v2c/v3, Telnet/SSH configuration, Port Setting, Port Rate Limit, Port Mirroring, Port Statistics, Static MAC, LLDP, DHCP Server, QoS, Modbus TCP, Configuration File Management, Software Upgrade, log Information, Syslog Server

Security

User configuration, port loop detection, 802.1X authentication/Radius server, port/power alarm, utilization alarm and mail alarm.

Switch Function

802.1Q VLAN, link aggregation, flow control, storm control

Unicast / Multicast

Multicast filtering, IGMP Snooping, dynamic multicast, MAC information

Redundancy Technology

Ring, STP/RSTP

Troubleshooting

Ping

Time Management

SNTP Client, Time Zone Configuration

Interface

100M copper port: 10/100Base-T(X) self-adaption, RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/ MDI-X Autotunning

100M fiber port: 100Base-FX, SC connector

CONSOLE port: CLI command line management port(RS-232), RJ45 Relay: support 2 relay alarm outputs, and adopt 2 5-pin 5.08mm pitch

terminal blocks, relay occupies the right 2 pins, the current carrying capacity is 1A@30VDC or 0.3A@125VAC>

Indicator

Power indicator, running indicator, alarm indicator, interface indicator

Switch Property

Transmission mode: store and forward MAC address: 16K

Packet buffer size: 4Mbit Backplane bandwidth: 12.8Gbps Switch delay: <10μs

Power Supply

IES5100-24T-2LV,      IES5100-22T2F-2LV,  IES5100-20T4F-2LV, IES5100-24F-2LV

Input voltage: 24VDC/48VDC (18~72VDC)

Power supply quantity: dual power supply redundancy

Connection method: 2 5-pin 5.08mm pitch terminal blocks (includes 3-pin power supply on the left side)

Connection protection: non-polarity

IES5100-24T-2HV,      IES5100-22T2F-2HV, IES5100-20T4F-2HV, IES5100-24F-2HV

Input voltage: 110VAC/DC, 220VAC/DC (85~264VAC/DC)

Power supply quantity: dual power supply redundancy

Connection method: 2 5-pin 5.08mm pitch terminal blocks (includes 3-pin power supply on the left side)

Power Consumption

Model

No-load

Full-load

IES5100-24T-2LV

4.5W@48VDC>

10.8W@48VDC>

IES5100-24T-2HV

7.3W@220VAC>

11.7W@220VAC>

IES5100-22T2F-2LV

5.3W@48VDC>

7.1W@48VD>

IES5100-22T2F-2HV

8.4W@220VAC>

11.9W@220VAC>

IES5100-20T4F-2LV

6.6W@48VDC>

8.6W@48VDC>

IES5100-20T4F-2HV

10.0W@220VAC>

12.2W@220VAC>

IES5100-24F-2LV

28.4W@48VDC>

29.7W@48VDC>

IES5100-24F-2HV

20.7W@220VAC>

22W@220VAC>

Working Environment

Operating temperature: -40~75℃ Storage temperature:-40~85℃

Relative humidity: 5%～95% (no condensation)

Mechanical Structure

Housing: IP40 protection, metal Installation: 19-inch 1U rack mounting

Dimension (W x H x D): 440mm×44mm×207mm (lugs are not included)

Weight:

IES5100-24T-2LV is 2.31kg

IES5100-24T-2HV is 2.62kg

IES5100-24F-2LV is 2.42kg

IES5100-24F-2HV is 2.659kg

Industrial Standard

IEC 61000-4-2 (ESD, electronic static discharge), Level 4

Contact discharge: ±8kV

Air discharge: ± 15kV

IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 4

Power supply: ±4kV

Copper port: ±2kV

Relay: ±4kV

IEC 61000-4-5 (Surge), Level 4

Power supply: differential mode±2kV, common mode±4kV

Copper port: differential mode±2kV, common mode±4kV

Relay: differential mode±2kV, common mode±4kV

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-31 Vibration: IEC 60068-2-6

Authentication

CE, FCC, RoHS

Model

100M

Copper Port

100M

Fiber Port

Power Supply

IES5100-24T-2LV

24

—

24VDC/48VDC (18~72VDC)

Support dual power supply redundancy and non-polarity

IES5100-24T-2HV

24

—

110VAC/DC, 220VAC/DC

85~264VAC/DC, dual power supply redundancy

IES5100-22T2F-2LV

22

2

24VDC/48VDC (18~72VDC)

Support dual power supply redundancy and non-polarity

IES5100-22T2F-2HV

22

2

110VAC/DC, 220VAC/DC

85~264VAC/DC, dual power supply redundancy

IES5100-20T4F-2LV

20

4

24VDC/48VDC (18~72VDC)

Support dual power supply redundancy and non-polarity

IES5100-20T4F-2HV

20

4

110VAC/DC, 220VAC/DC

85~264VAC/DC, dual power supply redundancy

IES5100-24F-2LV

—

24

24VDC/48VDC (18~72VDC)

Support dual power supply redundancy and non-polarity

IES5100-24F-2HV

—

24

110VAC/DC, 220VAC/DC

85~264VAC/DC, dual power supply redundancy
