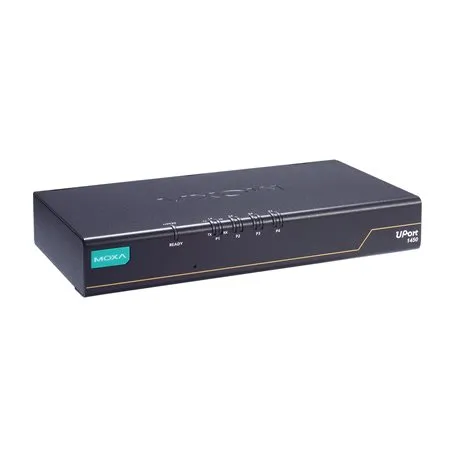

UPort 1450I-G2: USB to 4-port RS-232/422/485 converter with 2 kV isolation protection, 0 to 60°C operating temperature

Giá: Liên hệ

UPort 1450I-G2: USB to 4-port RS-232/422/485 converter with 2 kV isolation protection, 0 to 60°C operating temperature của hãng Moxa được BKAII đang phân phối rộng rãi tại thị trường Việt Nam. UPort 1450I-G2được thiết kế theo tiêu chuẩn công nghiệp, nhỏ gọn, dễ dàng lấy được tín hiệu về PLC, máy tính, vi xử lý, máy tính nhúng...Sản phẩm hiện đang được sử dụng trong các bài toán M2M, IoT của các lĩnh vực: Điện lực, khí tượng thủy văn, giao thông thông minh, hệ thống kiểm soát an ninh…

Tính năng của sản phẩm:

USB 3.2 SuperSpeed capability
512-byte on-chip FIFO cache and flow control for enhanced performance
Drivers provided for a broad selection of operating systems, including Windows and Linux
50 bps to 921.6 kbps baudrate (nonstandard baudrates supported)
Double-sided LEDs located at the corners show power, TX, and RX statuses in either directions
Latching USB cable design for firmer connection
Wide operating temperature models available for -40 to 75°C (-40 to 167°F) environments
Serial port with 2 kV isolation protection (for “-I” models)

Thông số kỹ thuật của sản phẩm:

USB Interface

USB Standards	USB 3.2 Gen 1 USB 1.1/2.0 compliant
Speed	5 Gbps, 480 Mbps, 12 Mbps
No. of USB Ports	1
USB Connector	USB Type B

Serial Interface

Connector	DB9 male
No. of Ports	4
Serial Standards	RS-232: UPort 1410-G2 RS-232/422/485: All other models
FIFO	512 bytes
Baudrate	50 bps to 921.6 kbps (supports non-standard baudrates)
Parity	None, Even, Odd, Space, Mark
Data Bits	5, 6, 7, 8

Stop Bits	1, 1.5, 2
Flow Control	RTS/CTS, XON/XOFF
RS-485 Data Direction Control	Automatic Data Direction Control (ADDC)
Pull High/Low Resistor for RS-485	1 kilo-ohm, 150 kilo-ohms
Terminator for RS-485	120 ohms
Surge	0.5 kV
Isolation	2 kV (I models)

Serial Signals

RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w	Data+, Data-, GND

Serial Software Features

Windows Drivers	Windows 11, 10, 8.1, 8 and 7 Windows Server 2022, 2019, 2016, 2012 R2, 2012 and 2008 R2
Linux Drivers	Kernel 6.x, 5.x and 4.x
Mac Drivers	macOS version (Intel 64): 13, 12, 11 and 10.1x
Virtual Machine	VMware Fusion (Windows on macOS 13, 12, 11, 10.1x, Intel 64) VMWare ESXi (Linux kernel 4) Parallels Desktop (Windows on macOS 13, 12, 11, 10.1x, Intel 64)
Arm®-based Platform Support	Linux kernel 6.x, 5.x and 4.x
Android API	Android 3.1.x and later

Power Parameters

Input Voltage

5 VDC by USB bus power or 12 to 48 VDC by external power adaptor

Input Current

UPort 1410-G2: 183 mA @ USB 2.0, 370 mA @ USB 3.2, 200 mA @ 12 VDC

UPort 1450-G2 models: 266 mA @ USB 2.0, 452 mA @ USB 3.2, 240 mA @ 12 VDC

UPort 1450I-G2 models: 445 mA @ USB 2.0, 633 mA @ USB 3.2, 340 mA @ 12 VDC

Physical Characteristics

Housing	Metal
Dimensions	185 x 30 x 90.6 mm (7.28 x 1.18 x 3.57 in)
Weight	UPort 1410-G2: 359 g (0.79 lb) UPort 1450-G2 models: 373 g (0.82 lb) UPort 1450I-G2 models: 379 g (0.84 lb)
IP Rating	IP20

Environmental Limits

Operating Temperature

Standard models: 0 to 60°C (32 to 140°F)

-T models: -40 to 75°C (-40 to 167°F)

Storage Temperature

-40 to 75°C (-40 to 167°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

EMC	EN 55032/35
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV IEC 61000-4-5 Surge: Power: 1 kV, Signal: 0.5 kV IEC 61000-4-6 CS: 3 V; 150 kHz to 80 MHz IEC 61000-4-8 PFMF
Safety	IEC 62368-1 EN 62368-1 UL 62368-1 (CB) KC
Shock	IEC 60068-2-27
Vibration	IEC 60068-2-6 IEC 60068-2-64
Freefall	IEC 60068-2-31

Declaration

Green Product

RoHS, CRoHS, WEEE

MTBF

Standards

Telcordia Standard SR332, Telcordia Issue 2

Time

UPort 1410-G2: 1,846,458 hrs

UPort 1450-G2 models: 1,431,860 hrs UPort 1450I-G2 models: 1,140,587 hrs

Mã đặt hàng:

Model Name

Serial Standards

No. of Serial Ports

Isolation

Power Input

Operating Temp.

UPort 1410-G2

RS-232

USB bus power/ Power adapter

0 to 60°C

UPort 1450-G2

RS-232/422/485

USB bus power/ Power adapter

0 to 60°C

UPort 1450-G2-T

RS-232/422/485

USB bus power/ Power adapter

-40 to 75°C

UPort 1450I-G2

RS-232/422/485

2 kV

USB bus power/ Power adapter

0 to 60°C

UPort 1450I-G2-T

RS-232/422/485

2 kV

USB bus power/ Power adapter

-40 to 75°C
