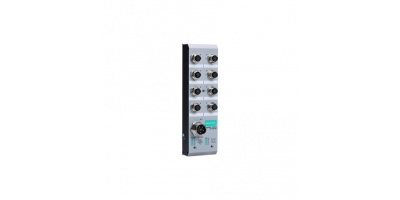

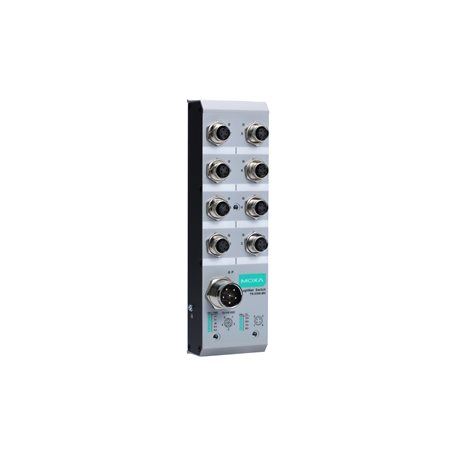

TN-5308-MV: Unmanaged Ethernet switch with 8 10/100BaseT(X) ports with M12 connectors, 50.4 to 154 VDC, M23 power cable

Giá: Liên hệ

TN-5308-MV: Unmanaged Ethernet switch with 8 10/100BaseT(X) ports with M12 connectors, 50.4 to 154 VDC, -25 to 60°C operating temperature, M23 power cable của hãng Moxa-Taiwan hiện đang được BKAII phân phối rộng rãi tại thị trường Việt Nam. TN-5308-MV được thiết kế theo tiêu chuẩn công nghiệp, nhỏ gọn, dễ dàng lấy được tín hiệu về PLC, máy tính, vi xử lý, máy tính nhúng. Sản phẩm hiện đang được sử dụng trong các bài toán M2M, IoT của các lĩnh vực: Điện lực, khí tượng thủy văn, giao thông thông minh, hệ thống kiểm soát an ninh,…

Tính năng của sản phẩm:

M12 connectors and IP40 metal housing
Up to 8 IEEE 802.3af compliant PoE and Ethernet combo ports
Supports IEEE 802.3/802.3u/802.3x
Complies with all EN 50155 mandatory test items
-40 to 75°C operating temperature range (-T models)

Thông số kỹ thuật của sản phẩm:

Ethernet Interface

10/100BaseT(X) Ports (M12 D-coded 4-pin female connector) : TN-5308 Series non-PoE models: 8
PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector) : TN-5308-4PoE Series: 4
TN-5308-8PoE Series: 8
Standards : IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for flow control
TN-5308 Series PoE models: IEEE 802.3af for PoE

Power Parameters

Input Current : TN-5308-LV Series: 0.19 A @ 12 VDC, 0.10 A @ 24 VDC, 0.05 A @ 48 VDC
TN-5308-MV Series: 0.033 A @ 72 VDC, 0.024 A @ 96 VDC, 0.021 A @ 110 VDC
TN-5308-4PoE Series: 1.6 A @ 48 VDC
TN-5308-8PoE Series: 2.9 A @ 48 VDC
Input Voltage : TN-5308-LV Series: 12 to 48 VDC
TN-5308-MV Series: 72 to 110 VDC
PoE models: 48 VDC
Max. PoE Power Output per Port : TN-5308 Series PoE models: 15.4 W
No. of Power Inputs : 1
Operating Voltage : TN-5308-LV Series: 8.4 to 60 VDC
TN-5308-MV Series: 50.4 to 137.5 VDC
TN-5308 Series PoE models: 46 to 50 VDC
Power Connector : TN-5308-LV Series and TN-5308 Series PoE models: M12 A-coded male connector
TN-5308-MV Series: M23 connector

Physical Characteristics

Housing : Metal
IP Rating : IP40
Dimensions : TN-5308-LV Series: 60 x 216.6 x 36.1 mm (2.36 x 8.53 x 1.42 in)
TN-5308-MV Series: 60 x 216.6 x 53.8 mm (2.36 x 8.53 x 2.12 in)
TN-5308-4PoE Series: 60 x 216.6 x 48.7 mm (2.36 x 8.53 x 1.91 in)
TN-5308-8PoE Series: 60 x 216.6 x 52.9 mm (2.36 x 8.53 x 2.1 in)
Weight : TN-5308-LV Series: 485 g (1.07 lb)
TN-5308-MV Series: 685 g (1.51 lb)
TN-5308-4PoE Series: 675 g (1.49 lb)
TN-5308-8PoE Series: 970 g (2.14 lb)
Installation : DIN-rail mounting (with optional kit), Wall mounting
Protection : TN-5308 Series -CT models: PCB conformal coating

Environmental Limits

Operating Temperature : Standard Models: -25 to 60°C (-13 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included) : -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity : 5 to95% (non-condensing)
Altitude : 2000 m

Standards and Certifications

Freefall : IEC 60068-2-32
EMC : EN 55032/24
EMI : CISPR 32, FCC Part 15B Class A
EMS : IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Environmental Testing : IEC 60068-2-1, EN 50155
IEC 60068-2-14, EN 50155
IEC 60068-2-2, EN 50155
IEC 60068-2-30, EN 50155
International Approval : RCM
Railway : EN 50121-4, EN 50155
Railway Fire Protection : EN 45545-2
Safety : EN 60950-1, UL 508
Salt Spray Test : IEC 60068-2-11, EN 50155
Shock : IEC 60068-2-27, IEC 61373, EN 50155
Vibration : IEC 60068-2-64, IEC 61373, EN 50155

Declaration

Green Product : RoHS, CRoHS, WEEE

MTBF

Time : TN-5308-LV Series: 2,099,286 hrs
TN-5308-MV Series: 2,590,858 hrs
TN-5308-4PoE Series: 252,075 hrs
TN-5308-8PoE Series: 308,392 hrs
