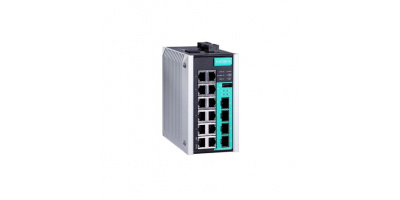

EDS-G516E-4GSFP: 16-port full Gigabit managed Ethernet switch with 12 10/100/1000BaseT(X) ports, 4 Gigabit SFP slots

Giá: Liên hệ

Nút thêm vào giỏ hàng sẽ xuất hiện sau khi bạn chọn các giá trị ở trên

EDS-G516E-4GSFP: 16-port full Gigabit managed Ethernet switch with 12 10/100/1000BaseT(X) ports, 4 Gigabit SFP slots, -40 to 75°C operating temperature của hãng Moxa-Taiwan hiện đang được BKAII phân phối rộng rãi tại thị trường Việt Nam. EDS-G516E-4GSFP được thiết kế theo tiêu chuẩn công nghiệp, nhỏ gọn, dễ dàng lấy được tín hiệu về PLC, máy tính, vi xử lý, máy tính nhúng... Sản phẩm hiện đang được sử dụng trong các bài toán M2M, IoT của các lĩnh vực: Điện lực, khí tượng thủy văn, giao thông thông minh, hệ thống kiểm soát an ninh…

Switch công nghiệp

Tính năng của sản phẩm:

Up to 12 10/100/1000BaseT(X) ports and 4 100/1000BaseSFP ports
Turbo Ring and Turbo Chain (recovery time < 50 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
RADIUS, TACACS+, MAB Authentication, SNMPv3, IEEE 802.1X, MAC ACL, HTTPS, SSH, and sticky MAC-addresses to enhance network security
Security features based on IEC 62443
EtherNet/IP, PROFINET, and Modbus TCP protocols supported for device management and monitoring
Supports MXstudio for easy, visualized industrial network management
V-ONensures millisecond-level multicast data and video network recovery

Thông số kỹ thuật của sản phẩm:


Alarm Contact Channels	1, Relay output with current carrying capacity of 1 A @ 24 VDC
Buttons	Reset button
Digital Input Channels	1
Digital Inputs	+13 to +30 V for state 1
	-30 to +3 V for state 0
Ethernet Interface	Max. input current: 8 mA
10/100/1000BaseT(X) Ports (RJ45 connector)	12
	Auto negotiation speed
	Full/Half duplex mode
	Auto MDI/MDI-X connection
100/1000BaseSFP Slots	4
Standards
	IEEE 802.3 for 10BaseT
	IEEE 802.3u for 100BaseT(X) and 100BaseFX
	IEEE 802.3ab for 1000BaseT(X)
	IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
	IEEE 802.3x for flow control
	IEEE 802.1D-2004 for Spanning Tree Protocol
	IEEE 802.1w for Rapid Spanning Tree Protocol
	IEEE 802.1s for Multiple Spanning Tree Protocol
	IEEE 802.1p for Class of Service
	IEEE 802.1Q for VLAN Tagging
	IEEE 802.1X for authentication
	IEEE 802.3ad for Port Trunk with LACP


Industrial Protocols	802.1Q VLAN, Port-based VLAN, GVRP, IGMP v1/v2/v3, GMRP
MIB	LLDP, Back Pressure Flow Control, BOOTP, Port Mirror, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, IPv4/IPv6, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP
Redundancy Protocols	Ethernet-like MIB, MIB-II, Bridge MIB, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
Security	Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
Time Management	Broadcast storm protection, HTTPS/SSL, TACACS+, SNMPv3, MAB authentication, Sticky MAC, NTP authentication, MAC ACL, Port Lock, RADIUS, SSH, SMTP with TLS
Switch Properties
IGMP Groups	NTP Server/Client, SNTP
Jumbo Frame Size	2048
MAC Table Size	9.6KB
Max. No. of VLANs	8K
Packet Buffer Size	256
Priority Queues	4 Mbits
VLAN ID Range	4
USB Interface	VID 1 to 4094
Storage Port	USB Type A
LED Interface
LED Indicators	PWR1, PWR2, STATE, FAULT, 10/100M (TP port), 1000M (TP port),
Serial Interface	PWR1, PWR2, STATE, FAULT, 10/100M (TP port), 1000M (TP port), 100/1000M (SFP port), MSTR/HEAD, CPLR/TAIL
Console Port	USB-serial console (Type B connector)
DIP Switch Configuration	USB-serial console (Type B connector)

DIP Switches	Turbo Ring, Master, Coupler, Reserve
Power Parameters	Turbo Ring, Master, Coupler, Reserve
Connection
Input Current	Turbo Ring, Master, Coupler, Reserve
Input Voltage	0.39 A @ 24 VDC
Operating Voltage	12/24/48/-48 VDC, Redundant dual inputs
Overload Current Protection	9.6 to 60 VDC
Reverse Polarity Protection	Supported
Physical Characteristics	Supported
Housing	Metal
IP Rating	IP30
Dimensions	79.2 x 135 x 137 mm (3.1 x 5.3 x 5.4 in)
Weight	1440 g (3.18 lb)
Installation	DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
Operating Temperature	EDS-G516E-4GSFP: -10 to 60°C (14 to 140°F)
	EDS-G516E-4GSFP-T: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Standards and Certifications
Safety	UL 508
EMC	EN 61000-6-2/-6-4
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
	IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
	IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
	IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
	IEC 61000-4-6 CS: 10 V
	IEC 61000-4-8 PFMF
Hazardous Locations	ATEX, Class I Division 2
Maritime	DNV-GL, LR, ABS, NK
Power Substation	IEC 61850-3, IEEE 1613
Railway	EN 50121-4
Traffic Control	NEMA TS2
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
MTBF
Time	805,491 hrs
Standards	Telcordia (Bellcore), GB
