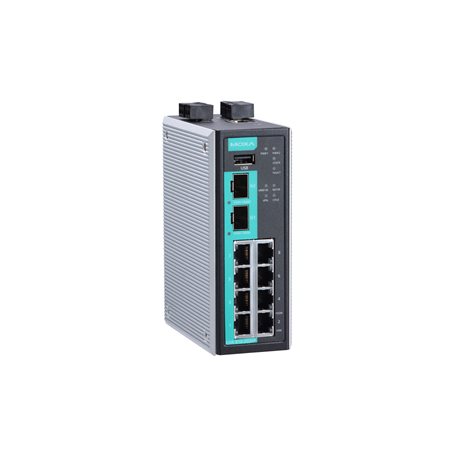

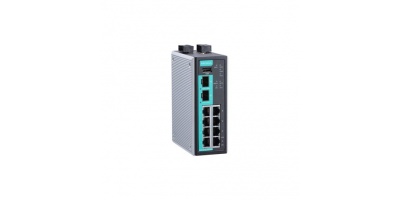

EDR-810: 8+2G multiport industrial secure router with switch/firewall/NAT/VPN

1 relay output with current carrying capacity of 1 A @ 24 VDC

Reset button

+13 to +30 V for state 1

-30 to +3 V for state 0
Max. input current: 8 mA

IEEE 802.1Q for VLAN Tagging

IEEE 802.3 for 10BaseT
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

IP directed broadcast, broadcast forwarding

DVMRP, PIM-SM, PIM-SSM

Back Pressure Flow Control, DDNS, DHCP Server/Client, HTTP, LLDP, QoS/CoS/ToS, SMTP, SNMPv1/v2c/v3, Telnet, TFTP, QoS, PPPOE, Traffic prioritization

Throughput: 10,000 packets per second (max. 100 Mbps)

All models: HTTPS/SSL, SSH, L2TP (server), RADIUS

EDR-810-VPN-2GSFP Series: HTTPS/SSL, SSH, IPsec, OpenVPN (client and server), UDP and TCP Tunnel mode (routing) and TAP mode (bridge), L2TP (server), RADIUS, L2TP (server), RADIUS

OSPF, RIPV1/V2, Static Route

RSTP, STP, Turbo Ring v2

• VLAN ID Range

VID 1 to 4094

256

16

STATE, PWR1, PWR2, FAULT, 10/100/1000M

ARP-Flood, FIN Scan, ICMP-Death, NEWWithout-SYN Scan, NMAP-ID Scan, NMAP-Xmas Scan, Null Scan, SYN/FIN Scan, SYN/RST Scan, SYN-Flood, Xmas Scan

Modbus TCP

Modbus UDP

Max. 10,000 packets per second (max. 100 Mbps)

DDoS, Ethernet protocols, ICMP, IP address, MAC address, Ports

EDR-810-VPN-2GSFP Series: MD5 and SHA (SHA-256), RSA (key size: 1024-bit, 2048-bit), X.509 v3 certificate

EDR-810-VPN-2GSFP Series: Max. 10 IPsec VPN tunnels

EDR-810-VPN-2GSFP Series: DES, 3DES, AES-128, AES-192, AES-256

Protocols

Throughput

EDR-810-VPN-2GSFP Series: IPsec, L2TP (server), PPTP (client

EDR-810-VPN-2GSFP Series: Max. 17 Mbps (Conditions: AES-256, SHA-256)

Authentication

Concurrent VPN Tunnels

Encryption

Protocols

EDR-810-VPN-2GSFP Series: User password by MD5 and SHA1

EDR-810-VPN-2GSFP Series:
Client Mode: max. 2 external servers
Server Mode: max. 5 external clients\

EDR-810-VPN-2GSFP Series: AES-128/192/256 CBC, Blowfish CBC, DES CBC, DES-EDE3 CBC

EDR-810-VPN-2GSFP Series:
OpenVPN (client and server), UDP, and TCP
Tunnel mode (routing) and TAP mode (bridge)

Event Type

Media

All models: Firewall event
EDR-810-VPN-2GSFP Series: VPN event

Local storage, SNMP Trap, Syslog server

All models: Firewall event

EDR-810-VPN-2GSFP Series: VPN event

Metal

IP30

53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)

830 g (2.10 lb)

DIN-rail mounting, Wall mounting (with optional kit)

12/24/48 VDC, 0.32 A @ 24 VDC

Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
