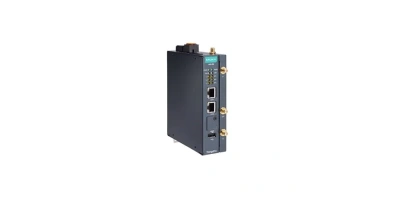

AIG-302-T-EU-AZU-LX: 2-port Modbus RTU/ASCII/TCP to MQTT/Azure cloud-ready gateway for the EU region with Arm® Cortex™-A7 dual-core 1GHz processor, Azure IoT Edge software, -40 to 70°C operating temperature

Giá: Liên hệ

AIG-302-T-EU-AZU-LX: 2-port Modbus RTU/ASCII/TCP to MQTT/Azure cloud-ready gateway for the EU region with Arm® Cortex™-A7 dual-core 1GHz processor, Azure IoT Edge software, -40 to 70°C operating temperature của hãng Moxa hiện đang được BKAII phân phối rộng rãi tại thị trường Việt Nam. AIG-302-T-EU-AZU-LX được thiết kế theo tiêu chuẩn công nghiệp, nhỏ gọn, dễ dàng lấy được tín hiệu về PLC, máy tính, vi xử lý, máy tính nhúng.Sản phẩm hiện đang được sử dụng trong các bài toán M2M, IoT của các lĩnh vực: Điện lực, khí tượng thủy văn, giao thông thông minh, hệ thống kiểm soát an ninh,….

Tính năng của sản phẩm

Supports generic MQTT client to facilitate MQTT connections via built-in device SDKs tailored for Azure cloud integration
Supports Modbus RTU/ASCII/TCP client
Supports Modbus TCP server
Supports Azure IoT Edge
Built-in network traffic monitoring and diagnostic tool for easy troubleshooting
Provides robust OTA function to prevent system failure during software upgrades
Equipped with Secure Boot to prevent malicious software-injection attacks
-40 to 70°C operating temperature range
LTE Cat. 4 US, EU, and APAC models available

Thông số kỹ thuật của sản phẩm:

Computer

CPU	Armv7 Cortex-A7 dual-core 1 GHz
DRAM	2 GB DDR3L
Storage Pre-installed	32 GB eMMC
Pre-installed OS	Moxa Industrial Linux (Debian 11, kernel 5.10.x)
No. of Tags Supported	3000

Computer Interface

Ethernet Ports	Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
Serial Ports	RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)

CAN Ports	CAN 2.0 A/B x 1 (DB9 male)
Digital Input	DIs x 4
Digital Output	DOs x 4
USB 2.0	USB 2.0 hosts x 1, type-A connectors
Wi-Fi Antenna Connector	RP-SMA x 2 (excluding AIG-302-T-AZU-LX)
Cellular Antenna Connector	SMA x 2 (excluding AIG-302-T-AZU-LX)
GPS Antenna Connector	SMA x 1 (excluding AIG-302-T-AZU-LX)
Expansion Slots	mPCIe slots x 1 (excluding AIG-302-T-AZU-LX)
SIM Format	Nano (excluding AIG-302-T-AZU-LX)
Number of SIMs	2
Buttons	Reset button Reset to factory default
TPM	TPM v2.0

Ethernet Interface

Magnetic Isolation Protection	1.5 kV (built-in)
10/100/1000BaseT(X) Ports (RJ45 connector)	2

Ethernet Software Features

Industrial Protocols	Modbus TCP Client/Server Generic MQTT Azure IoT Device Azure IoT Edge
Configuration Options	Web Console (HTTP/HTTPS) AIG QuickON
Time Management	NTP Server/Client GPS
Security	OpenVPN Client, SSH HTTPS/SSL TLS Firewall

Serial Interface

No. of Ports	2
Connector	DB9 male
Baudrate	300 bps to 921.6 kbps
Data Bits	7, 8
Stop Bits	1, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	RTS/CTS, XON/XOFF
Console Port	1 x 4-pin header

Serial Signals

RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w	Data+, Data-, GND

Serial Software Features

Industrial Protocols

Modbus RTU/ASCII Master

CAN Interface

No. of Ports	1
Connector	DB9 male
Baudrate	10 to 1000 kbps
Industrial Protocols	CAN 2.0A CAN 2.0B
Signals	CAN_H, CAN_L, CAN_GND, CAN_SHLD, CAN_V+, GND
Isolation	2 kV (built-in)

Digital Inputs

Connector	Spring-type Euroblock terminal
Sensor Type	Wet contact (NPN) Dry contact
Dry Contact	Off: open On: short to GND
Wet Contact (DI to COM)	On: 10 to 30 VDC Off: 0 to 3 VDC
Isolation	3K VDC

Digital Outputs

Connector	Spring-type Euroblock terminal
Current Rating	200 mA per channel
I/O Type	Sink
Voltage	24 VDC nominal, open collector to 30 VDC

Cellular Interface

Cellular Standards	LTE Cat. 4
Band Options (US)	LTE Band 2 (1900 MHz) / LTE Band 4 (1700 MHz) / LTE Band 5 (850 MHz) / LTE Band 12 (700 MHz) / LTE Band 13 (700 MHz) / LTE Band 14 (700 MHz) / LTE Band 66 (1700 MHz) / LTE Band 71 (600 MHz) UMTS/HSPA 850 MHz / 1900 MHz Carrier Approval: Verizon, AT&T
Band Options (EU)	LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 7 (2600 MHz) / LTE Band 8 (900 MHz) / LTE Band 20 (800 MHz) UMTS/HSPA 900 MHz / 1800 MHz / 2100 MHz
Band Option (APAC)	LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 5 (850 MHz) / LTE Band 8 (900 MHz) / LTE Band 28 (700 MHz) UMTS/HSPA 850 MHz / 900 MHz / 2100 MHz

GPS Interface

Receiver Types	GPS/GLONASS/BeiDou/Galileo/QZSS
Accuracy	Position: 2.0 m @CEP50
Time to First Fix (TTFF)	Hot start: 1.1 s Warm start: 22.1 s Cold start: 29.9 s
Sensitivity	Cold starts: -145 dBm Acquisition: -147.0 dBm Tracking: -160 dBm
Update Rate	1 Hz

Azure IoT Edge

Versions Supported	v1.4.20
Authentication Methods	Manual / Connection String DPS / Symmetric Encryption DPS / X.509 Certificate DPS / TPM
Azure Direct Methods	Reboot Software Upgrade Remote API Invocation
Azure Module Twin	Device Configuration
Moxa Functions	Custom Payload Message Group

Generic MQTT Client

Versions Supported	v3.1.1 v3.1
QoS Levels	0, 1, 2
Authentication Methods	Username and password
Secure Transmission	TLS 1.0 TLS 1.1 TLS 1.2
Native Capabilities	Keep Alive Retain Message Clean Session Will and Testament
Moxa Functions	Store and Forward Custom Payload Remote API Invocation

Azure IoT Device

Connection Protocols Supported

MQTT

MQTT over WebSockets AMQP

AMQP over WebSockets

Authentication Methods

Symmetric Key

X.509 Certificate

Azure Direct Methods

Reboot

Software Upgrade Remote API Invocation

Modbus RTU/ASCII

Mode	Client
Functions Supported	1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Commands	256 per port
Max. No of Connected Devices	62

Modbus TCP

Mode	Client/Server
Functions Supported	1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Server Connections	64
Max. No. of Client Connections	4
Max. No. of Commands	3000

LED Indicators

System

Power x 2

User x 1

SIM card indicator x 1

LAN

2 per port (10/100/1000 Mbps)

Wireless Signal Strength

Cellular/Wi-Fi x 6

Power Parameters

No. of Power Inputs	Redundant dual inputs
Input Voltage	12 to 48 VDC
Input Current	1 A @ 12 VDC
Power Consumption	12 W
Power Connector	4-pin terminal block

Reliability

Automatic Reboot Trigger

External WDT (watchdog timer)

Physical Characteristics

Housing	Metal SECC
IP Rating	IP30
Weight	AIG-302-T-AZU-LX: 560 g (1.23 lb) All other models: 750 g (1.65 lb)
Dimensions	AIG-302-T-AZU-LX: 141.5 x 120 x 27 mm (5.7 x 4.72 x 1.06 in) All other models: 141.5 x 120 x 39 mm (5.7 x 4.72 x 1.54 in)
Installation	DIN-rail mounting Wall mounting (with optional kit)

Environmental Limits

Operating Temperature

AIG-302-T-AZU-LX: –40 to 85°C (-40 to 185°F)

All other models: -40 to 70°C (-40 to 158°F))

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity	5 to 95% (non-condensing)
Shock	IEC 60068-2-27
Vibration	2 Grms @ IEC 60068-2-64, random wave, 5 to 500 Hz, 1 hr per axis (without USB devices attached)

Standards and Certifications

EMC	EN 55032/35 EN 61000-6-2/-6-4
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
Safety	UL 62368-1 EN 62368-1
Radio	NCC KC RCM TELEC
Carrier Approvals	AT&T Verizon PTCRB
RED	EN 301 489-1/19/52 EN 301 908-1 EN 303 413 EN 62311
Hazardous Locations	Class I Division 2, ATEX
Green Product	RoHS, CRoHS, WEEE

MTBF

Time

AIG-302-T-AZU-LX: 1,772,745

All other models: 1,403,998

Standards

Telcordia (Bellcore) Standard TR/SR

Mã đặt hàng:

Model Name	mPCIe Slot 1 for LTE Module	mPCIe Slot 2 for Wi-Fi Module	Operating Temperature
AIG-302-T-AZU-LX	–	–	-40 to 85°C
AIG-302-T-US-AZU-LX	US region LTE module preinstalled	Reserved	-40 to 70°C
AIG-302-T-EU-AZU-LX	Europe region LTE module preinstalled	Reserved	-40 to 70°C
AIG-302-T-AP-AZU-LX	APAC region LTE module preinstalled	Reserved	-40 to 70°C
