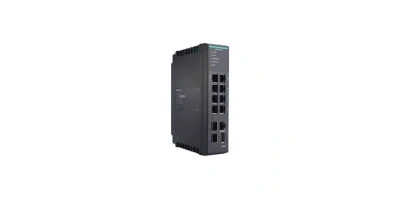

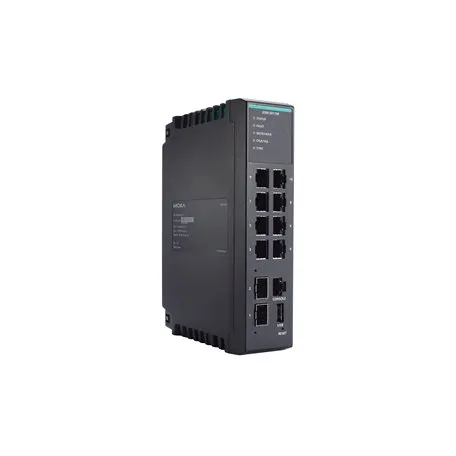

65M-5011M-CT-T: Communication modules for modular programmable IIN controllers

10/100/1000BaseT(X) Ports (RJ45 connector)

8

Auto MDI/MDI-X connection Auto negotiation speed Full/Half duplex mode

100/1000BaseSFP Slots

2

Standards

IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X)

IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3x for flow control

IEEE 802.3ad for Port Trunk with LACP IEEE 802.1Q for VLAN Tagging

IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1p for Class of Service

IEEE 802.1X for authentication

Management

IPv4/IPv6 Flow control

Back Pressure Flow Control DHCP Server/Client

ARP RARP LLDP

Port Mirroring Linkup Delay SMTP

SNMP Trap SNMP Inform SNMPv1/v2c/v3 RMON

TFTP SFTP HTTP HTTPS

Telnet Syslog Private MIB Fiber check

Filter

GMRP GVRP GARP

802.1Q VLAN

IGMP Snooping v1/v2/v3 IGMP Querier

Redundancy Protocols

STP RSTP

Turbo Ring v2 Turbo Chain Ring Coupling Dual Homing Link Aggregation

Security

Broadcast storm protection Rate Limit

Trust access control Static Port Lock Sticky MAC HTTPS/SSL

SSH RADIUS TACACS+

Login and Password Policy

Time Management

SNTP

NTP Server/Client NTP Authentication

Protocols

IPv4/IPv6 TCP/IP UDP ICMP ARP RARP TFTP DNS

NTP Client DHCP Server DHCP Client 802.1X

QoS HTTPS HTTP

Telnet SMTP

SNMPv1/v2c/v3 RMON

Syslog

MIB

P-BRIDGE MIB Q-BRIDGE MIB

IEEE8021-SPANNING-TREE-MIB IEEE8021-PAE-MIB

IEEE8023-LAG-MIB LLDP-EXT-DOT1-MIB LLDP-EXT-DOT3-MIB SNMPv2-MIB

RMON MIB Groups 1, 2, 3, 9

MAC Table Size

16 K

Jumbo Frame Size

9.216 KB

Max. No. of VLANs

256

VLAN ID Range

VID 1 to 4094

IGMP Groups

512

Priority Queues

4

Packet Buffer Size

1 MB

Console Port

RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

Buttons

Reset button

USB Ports

USB 2.0 Type A

(only supports Moxa's ABC-02-USB backup and storage device)

Input Current

0.9 A @ 12 VDC

Housing

Plastic

Dimensions

42 x 177 x 131.5 mm (1.65 x 6.97 x 5.18 in)

Weight

660 g (1.46 lb)

Installation

DIN-rail mounting

Rack mounting (with optional kit)

Operating Temperature

-40 to 75°C (-40 to 167°F)

(with SFP module installed)

Note: Proper airflow is required in an environment with temperature > 65°C

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Altitude

2000 m1

EMC

EN 55032/35

EN 61000-6-2/-6-4

EMI

CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV

IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m

IEC 61000-4-4 EFT: Power: (DC) 1 kV; Signal: 1 kV

IEC 61000-4-5 Surge: Power: (DC) 0.5 kV L-N, 1 kV L/N-PE; Signal: 1 kV; IO: 0.5 kV IEC 61000-4-6 CS: Power: (DC) 10 V

IEC 61000-4-8 PFMF: 30 A/m

Safety

UL 61010-2-201

UL 61010-1

Shock

IEC 60068-2-27

Half sine wave; acceleration: 15 g; time: 11 ms

Vibration

IEC 60068-2-6

DIN-rail mounted:

7 mm peak-peak (p-p) (2 to 8.42 Hz), 1 g (8.42 to 150 Hz) Rack mounted (with optional kit):

7 mm peak-peak (p-p) (2 to 8.42 Hz), 0.5 g (8.42 to 150 Hz)

Package Vibration Test

ISTA 1A

Package Drop Test

ISTA 1A

Time

3,104,403 hrs

Standards

Telcordia Standard SR-332
