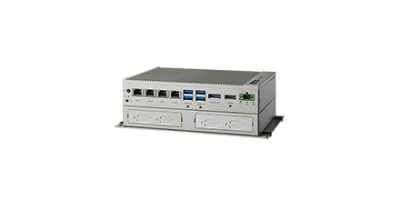

UNO-2484G: Intel® Core™ i7/i5/i3 Regular-Size Modular Box Platform (MBP) with 4 x GbE, 1 x mPCIe, HDMI, DP
UNO-2484G Intel® Core™ i7/i5/i3 Regular-Size Modular Box Platform (MBP) with 4x GbE, 1x mPCIe, HDMI, DP của hãng Advantech hiện đang được BKAII phân phối rộng rãi tại thị trường Việt Nam. UNO-2484G được thiết kế theo tiêu chuẩn công nghiệp, nhỏ gọn, dễ dàng lấy được tín hiệu về PLC, máy tính, vi xử lý, máy tính nhúng. Sản phẩm hiện đang được sử dụng trong các bài toán M2M, IoT của các lĩnh vực: Điện lực, khí tượng thủy văn, giao thông thông minh, hệ thống kiểm soát an ninh,…
- Switch công nghiệp
-
UNO-2484G, UNO-2484G-7C21BE, UNO-2484G-6731BE
UNO-2484G-6531BE, UNO-2484G-6331BE, UNO-2484G-7732BE
UNO-2484G-7532BE, UNO-2484G-7332BE, UNO-2484G-6732BE
UNO-2484G-6532BE, UNO-2484G-6332BE, UNO-2484G-7731BE
UNO-2484G-7531BE, UNO-2484G-7331BE
Mô hình ứng dụng
Tính năng của sản phẩm:
- Intel® Core™ i7/i5/i3 Processor with 8GB DDR4 built-in memory
- 4 x GbE, 4 x USB 3.0, 1 x HDMI, 1 x DP, 4 x RS232/422/485
- Stackable 2nd layer for up to 4 iDoor extension or customize for domain applications
- Compact fanless design
- Ruggedized by zero cable and lockable I/O design
- Dedicated TPM2.0 microcontroller designed for hardware security
- Diverse system I/O and isolated digital I/O by iDoor technology
- Supports Fieldbus protocol by iDoor technology
- 3G/GPS/GPRS/Wi-Fi communication by iDoor technology
- Supports 30+ iDOOR combination with four main categories
Thông số kỹ thuật
|
UNO-2484G |
UNO-2484G-7C21BE |
UNO-2484G-6731BE |
UNO-2484G-6531BE |
UNO-2484G-6331BE |
UNO-2484G-7732BE |
|
|
Environment |
Relative Humidity |
10~95% RH (non-condensing) |
10~95% RH (non-condensing) |
10~95% RH (non-condensing) |
10~95% RH (non-condensing) |
10~95% RH (non-condensing) |
|
Shock Protection |
50 G, half sine |
50 G, half sine |
50 G, half sine |
50 G, half sine |
50 G, half sine |
|
|
Ingress Protection |
IP40 |
IP40 |
IP40 |
IP40 |
IP40 |
|
|
Storage Temperature |
-40~85 °C (-40~185 °F) |
-40~85 °C (-40~185 °F) |
-20~60 °C (-4~140 °F) |
-20~60 °C (-4~140 °F) |
-20~60 °C (-4~140 °F) |
|
|
Vibration Protection |
3 Grms, random |
3 Grms, random |
3 Grms, random |
3 Grms, random |
3 Grms, random |
|
|
Operating Temperature |
-20~60 °C (-4~140 °F) |
-20~60 °C (-4~140 °F) |
-20~60 °C (-4~140 °F) |
-20~60 °C (-4~140 °F) |
-20~60 °C (-4~140 °F) |
|
|
Hardware |
Certification |
CE, FCC, UL, CCC, BSMI |
CE, FCC, UL, CCC, BSMI |
CE, FCC, UL, CCC, BSMI |
CE, FCC, UL, CCC, BSMI |
CE, FCC, UL, CCC, BSMI |
|
CPU |
6th Gen. Intel® Core™ i7-6600U 2.6 GHz Dual-Core |
6th Gen. Intel® Core™ i5-6300U 2.4GHz Dual-Core |
6th Gen. Intel® Core™ i7-6600U 2.6 GHz Dual-Core |
6th Gen. Intel® Core™ i5-6300U 2.4GHz Dual-Core |
||
|
Memory |
- |
1 x SO-DIMM Memory with 8 GB DDR4 2133 MHz |
1 x SO-DIMM Memory with 8 GB DDR4 2133 MHz |
1 x SO-DIMM Memory with 8 GB DDR4 2133 MHz |
1 x SO-DIMM with 8 GB DDR4 2133 MHz |
|
|
OS Support |
Microsoft® Windows 10 LTSC, Linux |
Microsoft® Windows 10 LTSC, Linux |
Microsoft® Windows 10 LTSC, Linux |
Microsoft® Windows 10 LTSC, Linux |
Microsoft® Windows 10 LTSC, Linux |
|
|
Power Input |
10~36 VDC |
10~36 VDC |
10~36 VDC |
10~36 VDC |
10~36 VDC |
|
|
Storage |
2 x 2.5" SSD/HDD Bay, 1 x mSATA (shared with mPCIe) |
2 x 2.5" SSD/HDD Bay, 1 x mSATA (shared with mPCIe) |
2 x 2.5" SSD/HDD Bay, 1 x mSATA (shared with mPCIe) |
2 x 2.5" SSD/HDD Bay, 1 x mSATA (shared with mPCIe) |
2 x 2.5" SSD/HDD Bay, 1 x mSATA (shared with mPCIe) |
|
|
I/O Interface |
Displays |
1 x DP, 1 x HDMI |
1 x DP, 1 x HDMI |
1 x DP, 1 x HDMI |
1 x DP, 1 x HDMI |
1 x DP, 1 x HDMI |
|
LAN Ports |
4 x 10/100/1000 Mbps |
4 x 10/100/1000 Mbps |
4 x 10/100/1000 Mbps |
4 x 10/100/1000 Mbps |
4 x 10/100/1000 Mbps |
|
|
Audio |
Line-Out |
Line-Out |
Line-Out |
Line-Out |
Line-Out |
|
|
Power Connector |
1 x 2-Pin Terminal Block |
1 x 2-Pin Terminal Block |
1 x 2-Pin Terminal Block |
1 x 2-Pin Terminal Block |
1 x 2-Pin Terminal Block |
|
|
USB Ports |
4 x USB 3.0 |
4 x USB 3.0 |
4 x USB 3.0 |
4 x USB 3.0 |
4 x USB 3.0 |
|
|
Serial Ports |
4 x RS-232/422/485 |
4 x RS-232/422/485 |
4 x RS-232/422/485 |
4 x RS-232/422/485 |
4 x RS-232/422/485 |
|
|
Mechanical |
Enclosure |
Aluminum housing |
Aluminum housing |
Aluminum housing |
Aluminum housing |
Aluminum housing |
|
Weight (Net) |
1.4 kg ( 3.09 lb) |
1.4 kg ( 3.09 lb) |
1.4 kg ( 3.09 lb) |
1.4 kg ( 3.09 lb) |
1.4 kg ( 3.09 lb) |
|
|
Dimension (W x H x D) |
200 x 140 x 70 mm |
200 x 140 x 70 mm |
200 x 140 x 50 mm |
200 x 140 x 50 mm |
200 x 140 x 50 mm |
|
|
UNO-2484G |
UNO-2484G-7532BE |
UNO-2484G-7332BE |
UNO-2484G-6732BE |
UNO-2484G-6532BE |
|
|
Environment |
Relative Humidity |
10~95% RH (non-condensing) |
10~95% RH (non-condensing) |
10~95% RH (non-condensing) |
10~95% RH (non-condensing) |
|
Shock Protection |
50 G, half sine |
50 G, half sine |
50 G, half sine |
50 G, half sine |
|
|
Ingress Protection |
IP40 |
IP40 |
IP40 |
IP40 |
|
|
Storage Temperature |
-20~60 °C (-4~140 °F) |
-20~60 °C (-4~140 °F) |
-20~60 °C (-4~140 °F) |
-20~60 °C (-4~140 °F) |
|
|
Vibration Protection |
3 Grms, random |
3 Grms, random |
3 Grms, random |
3 Grms, random |
|
|
Operating Temperature |
-20~60 °C (-4~140 °F) |
-20~60 °C (-4~140 °F) |
-20~60 °C (-4~140 °F) |
-20~60 °C (-4~140 °F) |
|
|
Hardware |
Certification |
CE, FCC, UL, CCC, BSMI |
CE, FCC, UL, CCC, BSMI |
CE, FCC, UL, CCC, BSMI |
CE, FCC, UL, CCC, BSMI |
|
CPU |
7th Gen. Intel® Core™ i5-7300U 2.6GHz Dual-Core |
7th Gen. Intel® Core™ i3-7100U 2.4 GHz Dual-Core |
6th Gen. Intel® Core™ i7-6600U 2.6 GHz Dual-Core |
6th Gen. Intel® Core™ i5-6300U 2.4GHz Dual-Core |
|
|
Memory |
1 x SO-DIMM Memory with 8 GB DDR4 3200 MHz |
1 x SO-DIMM Memory with 8 GB DDR4 3200 MHz |
1 x SO-DIMM Memory with 8 GB DDR4 3200 MHz |
1 x SO-DIMM Memory with 8 GB DDR4 2133 MHz |
|
|
OS Support |
Microsoft® Windows 10 LTSC, Linux |
Microsoft® Windows 10 LTSC, Linux |
Microsoft® Windows 10 LTSC, Linux |
Microsoft® Windows 10 LTSC, Linux |
|
|
Power Input |
10~36 VDC |
10~36 VDC |
10~36 VDC |
10~36 VDC |
|
|
Storage |
2 x 2.5" SSD/HDD Bay, 1 x mSATA (shared with mPCIe) |
2 x 2.5" SSD/HDD Bay, 1 x mSATA (shared with mPCIe) |
2 x 2.5" SSD/HDD Bay, 1 x mSATA (shared with mPCIe) |
2 x 2.5" SSD/HDD Bay, 1 x mSATA (shared with mPCIe) |
|
|
I/O Interface |
Displays |
1 x DP, 1 x HDMI |
1 x DP, 1 x HDMI |
1 x DP, 1 x HDMI |
1 x DP, 1 x HDMI |
|
LAN Ports |
4 x 10/100/1000 Mbps |
4 x 10/100/1000 Mbps |
4 x 10/100/1000 Mbps |
4 x 10/100/1000 Mbps |
|
|
Audio |
Line-Out |
Line-Out |
Line-Out |
Line-Out |
|
|
Power Connector |
1 x 2-Pin Terminal Block |
1 x 2-Pin Terminal Block |
1 x 2-Pin Terminal Block |
1 x 2-Pin Terminal Block |
|
|
USB Ports |
4 x USB 3.0, 4 x USB 2.0 |
4 x USB 3.0 |
4 x USB 3.0 |
4 x USB 3.0 |
|
|
Serial Ports |
4 x RS-232/422/485 |
4 x RS-232/422/485 |
4 x RS-232/422/485 |
4 x RS-232/422/485 |
|
|
Mechanical |
Enclosure |
Aluminum housing |
Aluminum housing |
Aluminum housing |
Aluminum housing |
|
Weight (Net) |
1.8 kg (3.96 lb) |
1.8 kg (3.96 lb) |
1.8 kg (3.96 lb) |
1.8 kg (3.96 lb) |
|
|
Dimension (W x H x D) |
200 x 140 x 70 mm |
200 x 140 x 70 mm |
200 x 140 x 70 mm |
200 x 140 x 70 mm |
|
|
UNO-2484G |
UNO-2484G-6332BE |
UNO-2484G-7731BE |
UNO-2484G-7531BE |
UNO-2484G-7331BE |
|
|
Environment |
Relative Humidity |
10~95% RH (non-condensing) |
10~95% RH (non-condensing) |
10~95% RH (non-condensing) |
10~95% RH (non-condensing) |
|
Shock Protection |
50 G, half sine |
50 G, half sine |
50 G, half sine |
50 G, half sine |
|
|
Ingress Protection |
IP40 |
IP40 |
IP40 |
IP40 |
|
|
Storage Temperature |
-20~60 °C (-4~140 °F) |
-40~85 °C (-40~185 °F) |
-40~85 °C (-40~185 °F) |
-40~85 °C (-40~185 °F) |
|
|
Vibration Protection |
3 Grms, random |
3 Grms, random |
3 Grms, random |
3 Grms, random |
|
|
Operating Temperature |
-20~60 °C (-4~140 °F) |
-20~60 °C (-4~140 °F) |
-20~60 °C (-4~140 °F) |
-20~60 °C (-4~140 °F) |
|
|
Hardware |
Certification |
CE, FCC, UL, CCC, BSMI |
CE, FCC, UL, CCC, BSMI |
CE, FCC, UL, CCC, BSMI |
CE, FCC, UL, CCC, BSMI |
|
CPU |
6th Gen. Intel® Core™ i3-6100U 2.30GHz Dual-Core |
7th Gen. Intel® Core™ i7-7600U 2.8 GHz Dual-Core |
7th Gen. Intel® Core™ i5-7300U 2.6 GHz Dual-Core |
7th Gen. Intel® Core™ i3-7100U 2.4 GHz Dual-Core |
|
|
Memory |
1 x SO-DIMM Memory with 8 GB DDR4 2133 MHz |
1 x SO-DIMM Memory with 8 GB DDR4 3200 MHz |
1 x SO-DIMM Memory with 8 GB DDR4 3200 MHz |
1 x SO-DIMM Memory with 8 GB DDR4 3200 MHz |
|
|
OS Support |
Microsoft® Windows 10 LTSC, Linux |
Microsoft® Windows 10 LTSC, Linux |
Microsoft® Windows 10 LTSC, Linux |
Microsoft® Windows 10 LTSC, Linux |
|
|
Power Input |
10~36 VDC |
10~36 VDC |
10~36 VDC |
10~36 VDC |
|
|
Storage |
2 x 2.5" SSD/HDD Bay, 1 x mSATA (shared with mPCIe) |
2 x 2.5" SSD/HDD Bay, 1 x mSATA (shared with mPCIe) |
2 x 2.5" SSD/HDD Bay, 1 x mSATA (shared with mPCIe) |
2 x 2.5" SSD/HDD Bay, 1 x mSATA (shared with mPCIe) |
|
|
I/O Interface |
Displays |
1 x DP, 1 x HDMI |
1 x DP, 1 x HDMI |
1 x DP, 1 x HDMI |
1 x DP, 1 x HDMI |
|
LAN Ports |
4 x 10/100/1000 Mbps |
4 x 10/100/1000 Mbps |
4 x 10/100/1000 Mbps |
4 x 10/100/1000 Mbps |
|
|
Audio |
Line-Out |
Line-Out |
Line-Out |
Line-Out |
|
|
Power Connector |
1 x 2-Pin Terminal Block |
1 x 2-Pin Terminal Block |
1 x 2-Pin Terminal Block |
1 x 2-Pin Terminal Block |
|
|
USB Ports |
4 x USB 3.0 |
4 x USB 3.0 |
4 x USB 3.0 |
4 x USB 3.0 |
|
|
Serial Ports |
4 x RS-232/422/485 |
4 x RS-232/422/485 |
4 x RS-232/422/485 |
4 x RS-232/422/485 |
|
|
Mechanical |
| ||||
