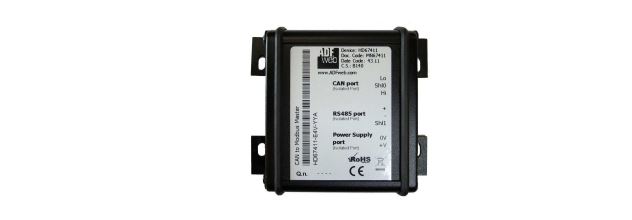

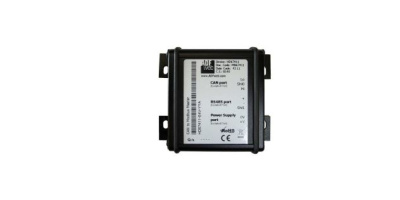

HD67461-E4V: NMEA 2000 / CANopen - Converter

Ports:

2xCAN

Data Rates NMEA 2000

Up to 1 Mbps

Data Rates CANopen

Up to 1 Mbps

NMEA 2000 Connector

3way Mini-Fit®

CANopen Connector

3way Mini-Fit®

Power Supply Connector

2way Mini-Fit®

Power Supply

10..40V DC; 8..26V AC

Operating temperature

-40°C/+105°C (-40°F/+221°F)

Dimensions without fixing lugs

76x86x40 (LxWxH)

Dimensions with fixing lugs A

105x86x40 (LxWxH)

Dimensions with fixing lugs B

83x112.5x40 (LxWxH)

Dimensions with fixing lugs C

105x112.5x40 (LxWxH)

Weight

200g approx

Software

SW67461
