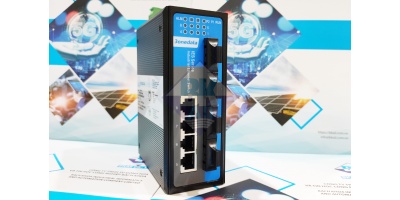

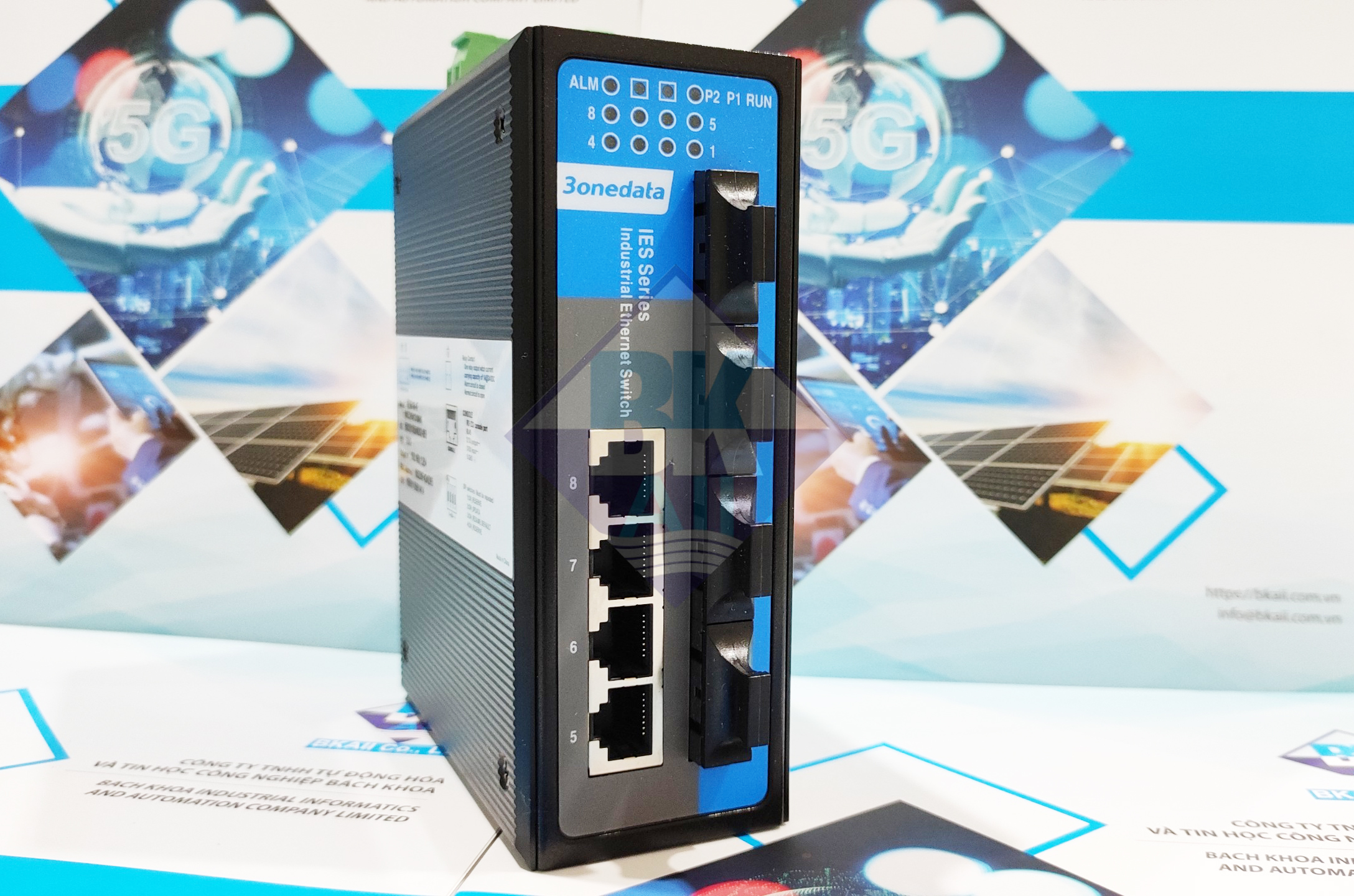

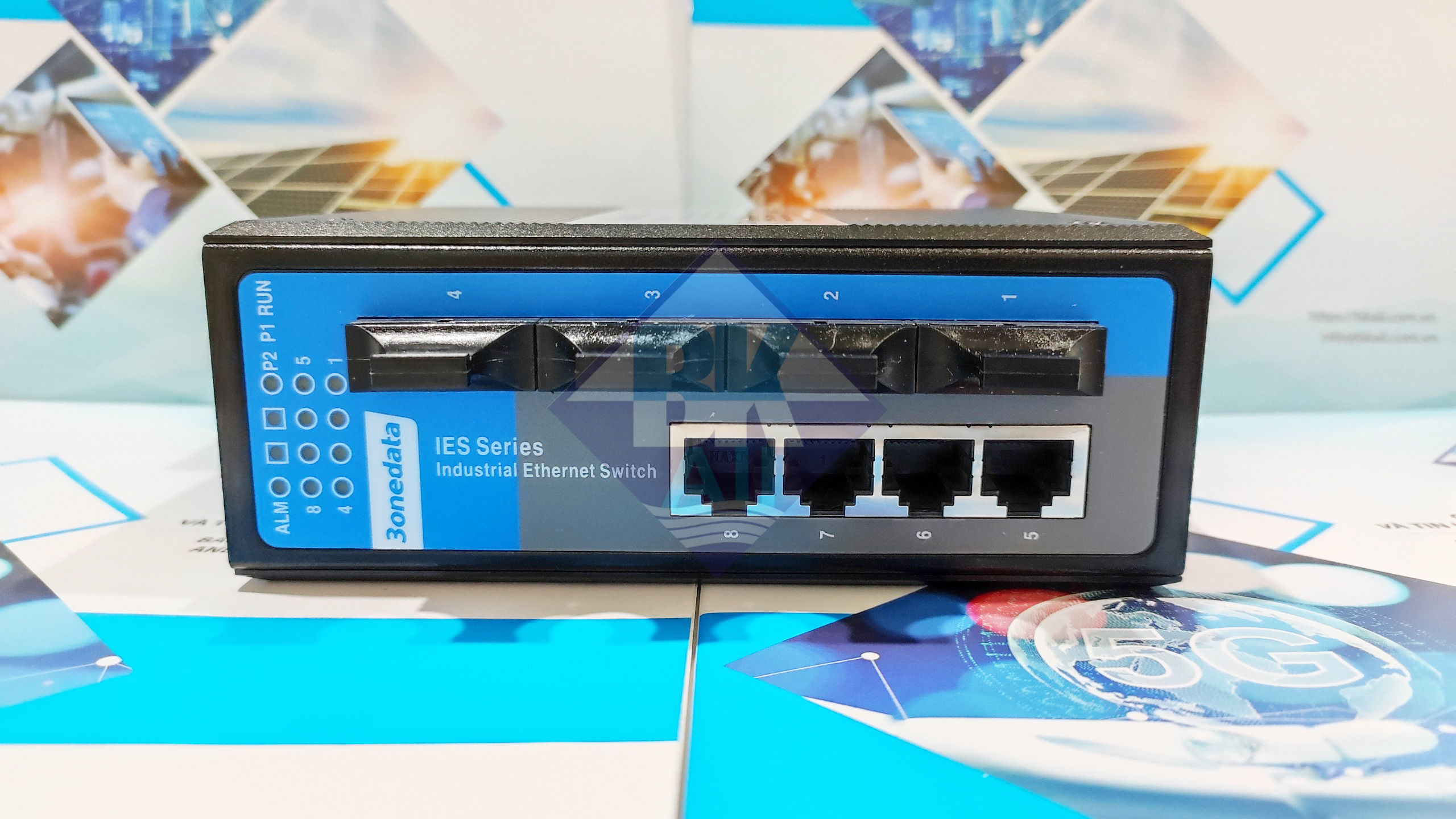

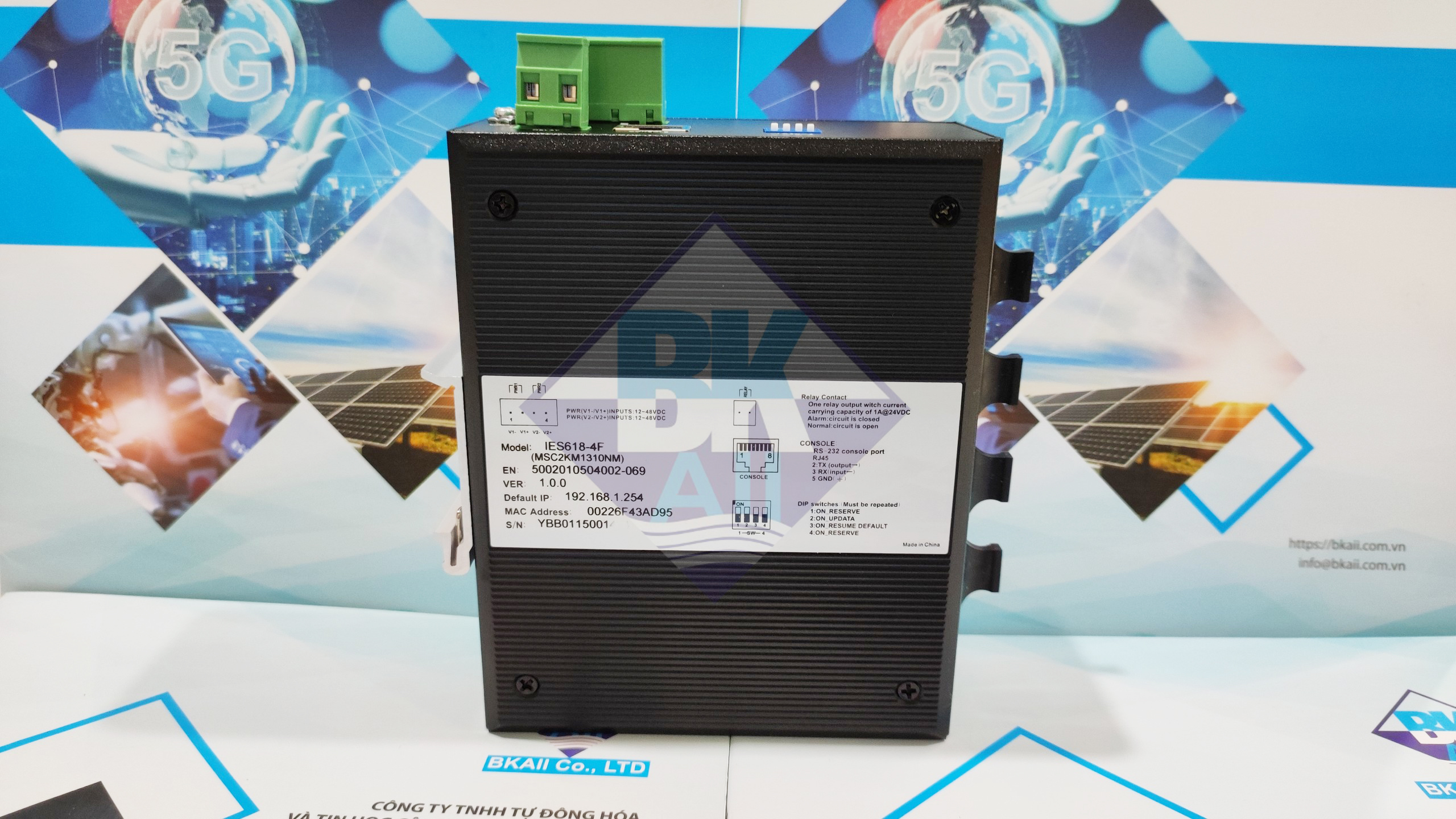

IES618-4F: 8-port Layer 2 Managed Industrial Ethernet Switch with 4 100M copper ports, 4 fiber or copper

Standard

&

Protocol

IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX and 100Base-FX

IEEE 802.3x for Flow Control

IEEE 802.1D-2004 for Spanning Tree Protocol

IEEE 802.1w for Rapid Spanning Tree Protocol

IEEE 802.1Q for VLAN

IEEE 802.1p for CoS

Console/Telnet/WEB Management, SNMP v1/v2c Centralized Management of Equipment, Port Mirroring, QoS, File Management, Port Statistics

Classification of User Permissions, Relay Alarm (Port Alarm and Power Supply Alarm)

802.1Q Vlan, Static Port Aggregation, Bandwidth Management, Flow Control

Unicast / Multicast

Redundancy

Protocol

SW-Ring, STP/RSTP

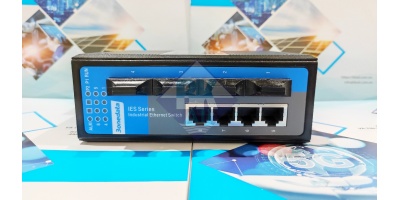

Copper port: 10/100Base-T(X) RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning

Fiber port: 100Base-FX

Console port: CLI command line management port (RS-232), RJ45

Alarm port: 2-pin 7.62mm pitch terminal blocks, support 1 relay alarm output, current carrying capacity 1A@24VDC or 0.5A@120VAC>

Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator

Switch

Property

Transmission mode: store and forward

MAC address: 2K

Packet buffer size: 1Mbit

Backplane bandwidth: 2G

Switch time delay: < 15μs

Power

Requirement

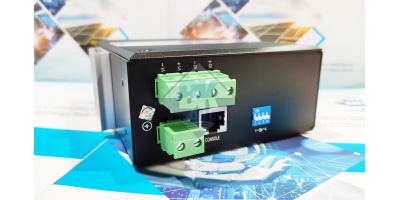

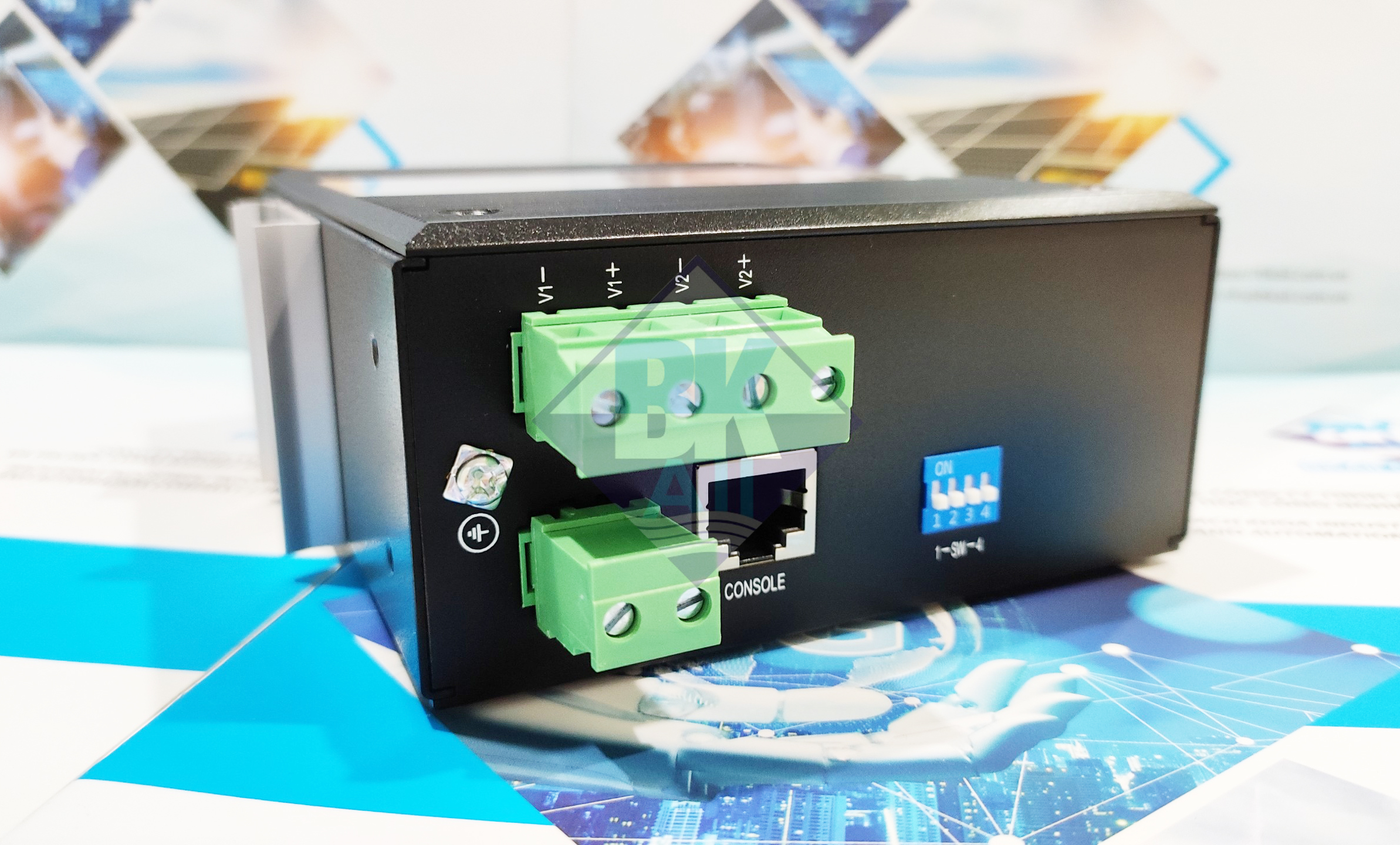

12~48VDC, 4-pin 7.62mm pitch terminal blocks

dual power supply redundancy, nonpolarity, reverse polarity protection

Environmental

Limit

Operating temperature range: -40~75℃

Storage temperature range: -40~85℃

Relative humidity: 5%～95%（no condensation）

Housing: IP40 protection, metal

Installation: DIN-Rail mounting

Dimension (W x H x D): 53mm×138mm×110mm

Industrial

Standard

IEC61000-4-2 (ESD), Level 4

lAir discharge: ±15kV

lContact discharge: ±8kV

IEC61000-4-5 (Surge), Level 4

lPower supply: common mode ±4kV, differential mode ±2kV

lEthernet port: ±4kV

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IES 60068-2-6
