IES318-8T-2P48: Switch công nghiệp 8 cổng Lan 100M

Standard & Protocol

IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX and 100Base-X

Interface

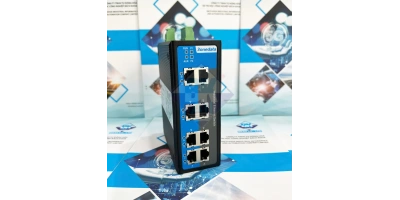

Copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode Self-Adaption, MDI/ MDI-X Autotunning

Fiber port: 100Base-X, optional SC/ST/FC

Alarm port: 2-pin 7.62mm pitch terminal blocks, supports 1 relay alarm output, and the current load capacity is 1A@24VDC or 0.5A@120VAC>

Indicator

Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator

Switching Property

Transmission mode: store and forward

MAC address: 2K

Buffer: 1Mbit

Backplane bandwidth: 1.6G

Switch time delay: <10μs

Power Supply

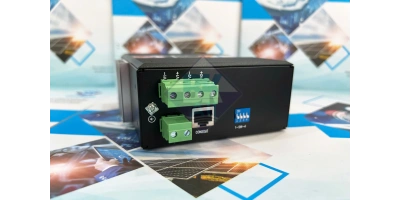

l DC power: 12/24/48VDC (9~60VDC), with dual power supplies, built-in overcurrent protection, supports nonpolarity

l AC power: 220 VAC/DC (85~264VAC/DC), with built-in overcurrent protection

Power Consumption

Working Environment

Operating temperature: -40~75℃

Storage temperature:-40~85℃

Relative humidity: 5%～95% (no condensation)

Physical Characteristic

Housing: IP40 protection, high-strength corrugated metal

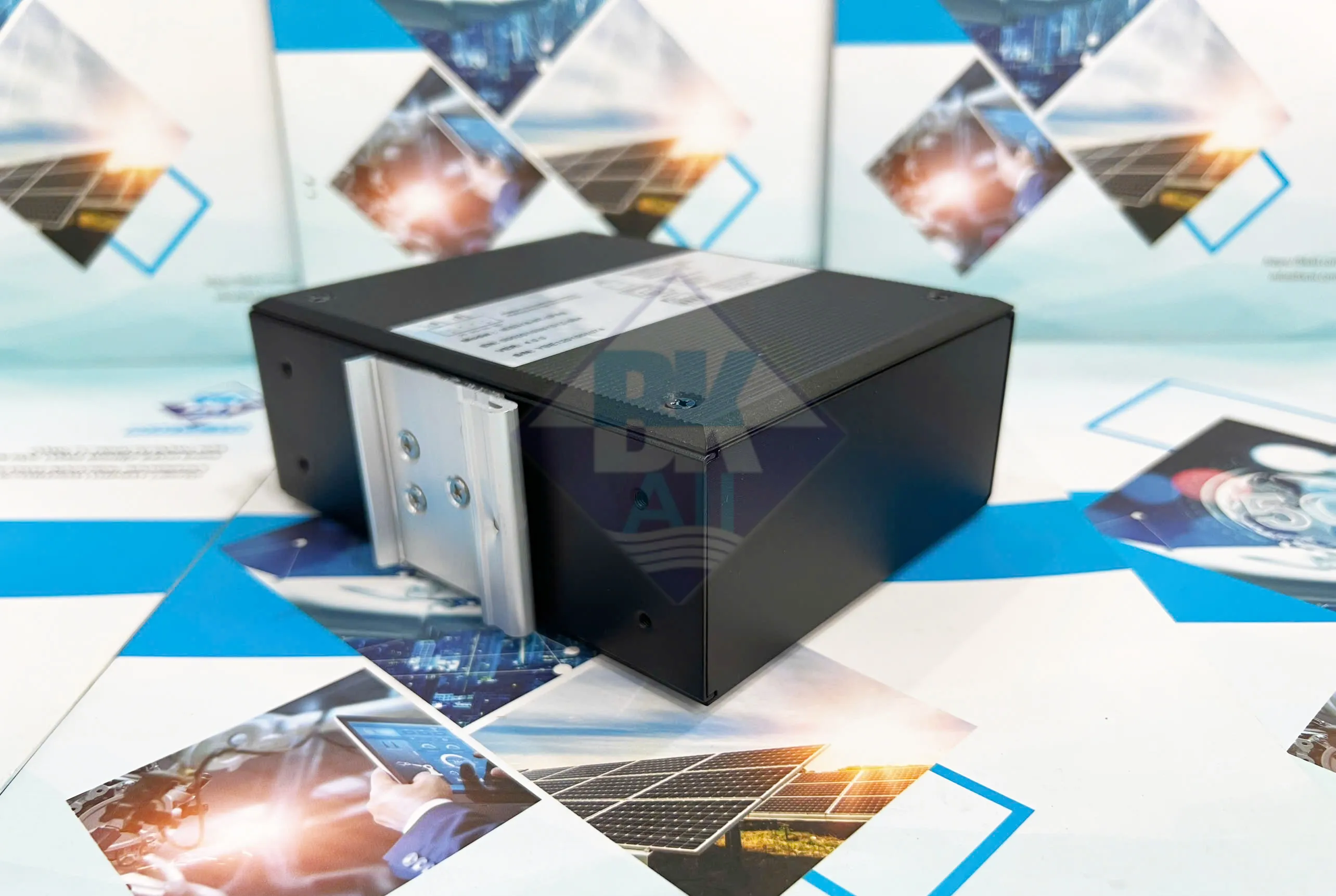

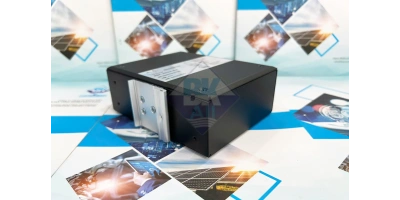

Installation: DIN-Rail or wall mounting

Dimension (W x H x D): 53mm×138mm×110mm

Weight: 670g

AC Product

Industrial Standard

IEC 61000-4-2 (ESD), Level 3

l Air discharge: ±8kV

l Contact discharge: ±6kV

IEC 61000-4-4 (EFT),Level3

l Power supply: ±2kV

l Ethernet port: ±1kV

l Relay: ±2kV

IEC 61000-4-5 (Surge), Level 3

l Power supply: common mode ±2kV, differential mode ±1kV

l Ethernet port: common mode ±2kV, differential mode ±1kV

l Relay: common mode ±2kV, differential mode ±1kV

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

DC Product

Industrial Standard

IEC 61000-4-2 (ESD), Level 4

l Air discharge: ± 15kV

l Contact discharge: ±8kV

IEC 61000-4-4 (EFT),Level4

l Power supply: ±4kV

l Ethernet port: ±2kV

l Relay: ±4kV

IEC 61000-4-5 (Surge),Level 4

l Power supply: common mode±4kV, differential mode±2kV

l Ethernet port: common mode±4kV, differential mode±2kV

l Relay: common mode ±4kV, differential mode±2kV

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Authentication

CE, FCC, RoHS
