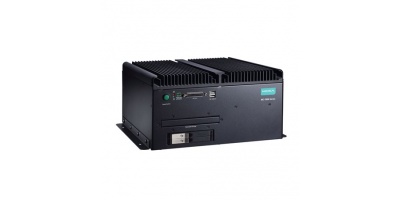

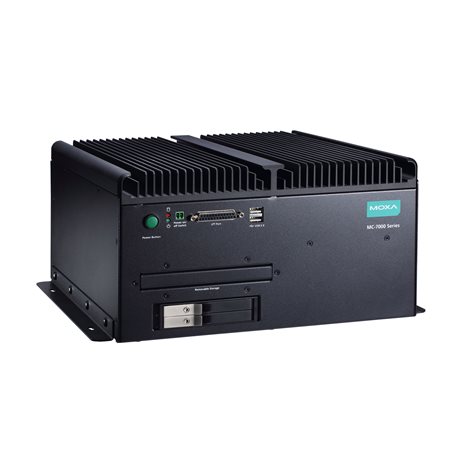

MC-7200-MP-T: x86 Fanless, Wide Temperature Industrial Computer

System Memory Pre-installed

Graphics Controller

4 GB DDR3/DDR3L

Intel® HD Graphics 4000 (integrated)

SODIMM DDR3/DDR3L slot x 2

Windows Embedded Standard 7 (WS7P) 64-bit
Windows 10 Embedded IOT Ent 2016 LTSB High End EPKEA
Windows 10 Embedded IOT Ent 2016 LTSB Value EPKEA

Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4

RS-232 ports x 2 (DB9 male)
RS-232/422/485 ports x 2, software selectable (DB9 male)

USB 2.0

Audio Input/Output

PS/2

USB 2.0 hosts x 6, type-A connectors

Line in x 1, Line out x 1, 3.5 mm phone jack

Keyboard PS/2 x 1, Mouse PS/2 x 1

Connector

Contact Current Rating

Initial Insulation Resistance

Screw-fastened Euroblock terminal

Resistive load: 2 A @ 30 VDC

1,000 mega-ohms (min.) @ 500 VDC

Baudrate

Flow Control

Data Bits

NMEA Interface

50 bps to 921.6 kbps

ADDC® (automatic data direction control) for RS-485

RTS/CTS, XON/XOFF

5, 6, 7, 8

Serial Standards:
NMEA 0183: RS-422
Baudrate: 4800 bps
Data Bits: 8
Handshake: None
Optical Isolation Protection: 3 kV
Parity: None
Serial Standards: NMEA 0183v2
Stop Bits: 1, 1.5, 2

RS-232

RS-422

RS-485-2w

RS-485-4w

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Tx+, Tx-, Rx+, Rx-, GND

Data+, Data-, GND

Tx+, Tx-, Rx+, Rx-, GND

Input Voltage

Power Connector

Power Consumption (Max.)

100 to 240 VAC, 24 VDC

Terminal block (for DC models)

120 W

• 9,215 g (20.32 lb)

-50 to 80°C (-58 to 176°F)

5 to 95% (non-condensing)

-40 to 70°C (-40 to 158°F)
