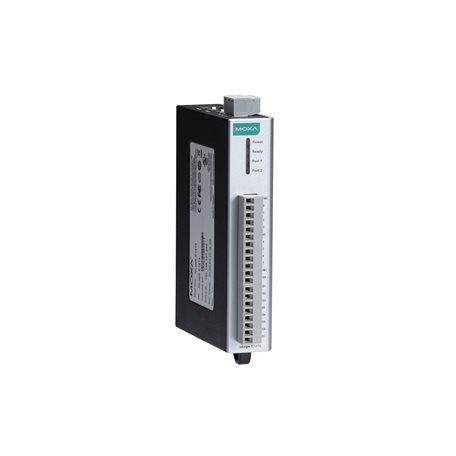

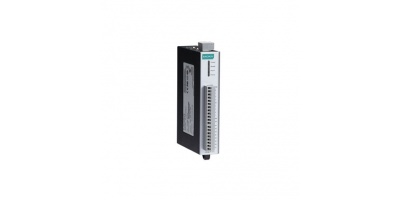

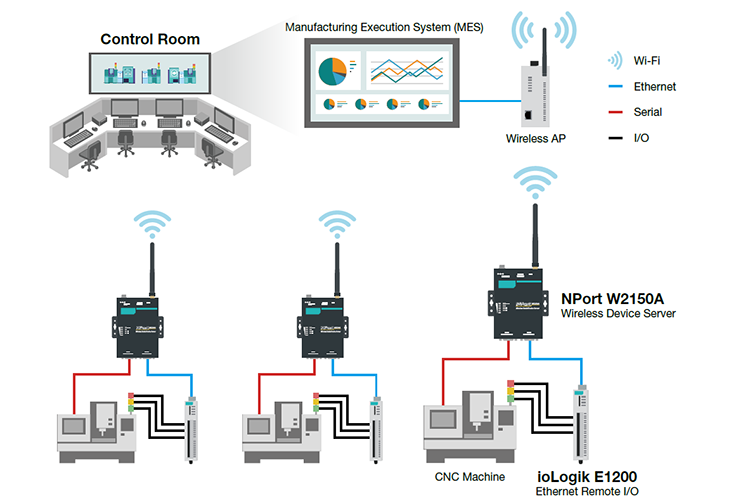

ioLogik E1200 Series: Ethernet remote I/O with 2-port Ethernet switch

Digital Inputs

I/O Mode

Wet Contact (DI to COM)

Points per COM

Connector

Sensor Type

DI or event counter

On: 10 to 30 VDC
Off: 0 to 3 VDC

ioLogik E1210/E1212 models: 8 channels
ioLogik E1213 models: 12 channels
ioLogik E1214 models: 6 channels
ioLogik E1242 models: 4 channels

Screw-fastened Euroblock terminal

Dry contact
Wet Contact (NPN or PNP)

Input/Output Interface

Analog Input Channels

Configurable DIO Channels (by software)

Isolation

RTD Channels

Digital Output Channels

ioLogik E1240 models: 8
ioLogik E1242 models: 4

ioLogik E1212 models: 8
ioLogik E1213/E1242 models: 4

3k VDC or 2k Vrms

ioLogik E1260 models: 6

ioLogik E1211 models: 16
ioLogik E1213 models: 4

Digital Outputs

Connector

Current Rating

I/O Type

I/O Mode

Over-Current Protection

Over-Temperature Shutdown

Over-Voltage Protection

Screw-fastened Euroblock terminal

ioLogik E1211/E1212/E1242 models: 200 mA per channel
ioLogik E1213 models: 500 mA per channel

ioLogik E1211/E1212/E1242 models: Sink
ioLogik E1213 models: Source

DO or pulse output

ioLogik E1211/E1212/E1242 models: 2.6 A per channel @ 25°C
ioLogik E1213 models: 1.5 A per channel @ 25°C

175°C (typical), 150°C (min.)

35 VDC

RTDs

Connector

Input Connection

Accuracy

Sampling Rate

Sensor Type

Screw-fastened Euroblock terminal

2- or 3-wire

ioLogik E1260:
±0.1% FSR @ 25°C
±0.3% FSR @ -10 to 60°C
ioLogik E1260-T:
±0.1% FSR @ 25°C
±0.3% FSR @ -40 to 75°C

All channels: 12 samples/sec
Per channel: 2 samples/sec

PT1000 (-200 to 350°C)
PT50, PT100, PT200, PT500 (-200 to 850°C)

Analog Inputs

Input Impedance

Input Range

Sampling Rate

Accuracy

10 mega-ohms (min.)

0 to 10 VDC
0 to 20 mA
4 to 20 mA
4 to 20 mA (with burn-out detection)

ioLogik E1240/E1242:
±0.1% FSR @ 25°C
±0.3% FSR @ -10 to 60°C

ioLogik E1240-T/E1242-T:
±0.1% FSR @ 25°C
±0.3% FSR @ -10 to 60°C
±0.5% FSR @ -40 to 75°C

10/100BaseT(X) Ports (RJ45 connector)

Magnetic Isolation Protection

2, 1 MAC address (Ethernet bypass)

1.5 kV (built-in)

Dimensions

Weight

27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in)

200 g (0.44 lb)

Storage Temperature (package included)

Ambient Relative Humidity

-40 to 85°C (-40 to 185°F)

5 to 95% (non-condensing)
