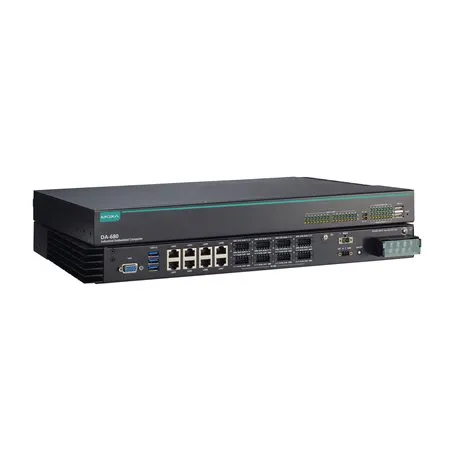

DA-680-I-16-WL3-H: IEC 61850-3 1U rackmount computer with 8th Gen Intel® Core™ i3-8145UE processor, 8 GbE ports, 16 RS-485 serial ports, 2 DOs, 1 VGA port, 3 USB 3.0 ports, 2 USB 2.0 ports, 1 mSATA slot, 1 SATA slot, 100 to 240 VAC/VDC single power input,

CPU

Intel® Core™ i3-8145UE Whiskey Lake processor

System Memory Slot

DDR4 (non-ECC) slots x 1

DRAM

16 GB max

Graphics Controller

Intel® UHD Graphics 620

Storage Slot

2.5-inch HDD/SSD slots x 1 mSATA slots x 1

Supported OS

Windows 10 IoT Ent 2021 LTSC, version 21H2 Linux Debian 11

Ubuntu 20.04

CentOS 7.9

USB 2.0

USB 2.0 hosts x 3, type-A connectors

2 ports on the front panel, 1 port inside the computer

USB 3.0

USB 3.0 hosts x 3, type-A connectors 3 ports on the rear panel

Video Output

VGA x 1, DB-15 connector

Ethernet Ports

Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 8

Time Synchronization

IRIG-B (terminal block)

TPM

TPM v2.0

Serial Ports

DA-680-I-8-WL3-H/HH: 2-wire RS-485/4-wire RS-485 x 8 (terminal block) DA-680-I-16-WL3-H/HH: 2-wire RS-485/4-wire RS-485 x 16 (terminal block)

Connector

Screw-fastened Euroblock terminal

Current Rating

200 mA per channel

I/O Type

Sink

Voltage

24 VDC nominal, open collector to 30 VDC

Isolation

3k VDC

System

Programmable x 6

Storage x 1

Power x 1 Power Fail x 2 (Power Fail 1/2)

LAN

2 per port (10/100/1000 Mbps)

Serial

2 per port (Tx, Rx)

Baudrate

50 bps to 115.2 kbps

Connector

Terminal block

Serial Standards

RS-485 2-wire / 4-wire

RS-485-2w

Data+, Data-, GND

RS-485-4w

Tx+, Tx-, Rx+, Rx-, GND

Input Signal

Differential

Time-code Input

Based On:

IRIG standard 200-04

IEEE 1344

Accuracy (Time Synchronization)

±1 µs

Accuracy (Free Running)

±500 ms @ 24 hr

Input Current

100 to 240 VAC, 50/60 Hz, 1.05 A (max)

100 to 240 VDC, 0.7 A (max)

Power Button

ON/OFF (rear panel)

Reset Button

Reset button (front panel)

Housing

Metal

Dimensions (without ears)

440 x 335.5 x 44 mm (17.32 x 13.21 x 1.73 in)

Weight

4659.5 g (10.27 lb)

Installation

19-inch rack mounting

Operating Temperature

-25 to 55°C (-13 to 131°F)

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

EMC

EN 55032/35

EN 61000-6-2/-6-4

EMI

CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV

IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m

IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV

IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV

IEC 61000-4-6 CS: 10 V

IEC 61000-4-8 PFMF: 100 A/m at 50 Hz

IEC 61000-4-11

Power Substation

IEC 61850-3

IEEE 1613

Protection Relay

IEC 60255

Shock

IEC 61850-3 Edition 2.0, IEC 60068-2-27, IEC 60255-21-2

Safety

UL 62368-1

IEC 62368-1

Green Product

RoHS, CRoHS, WEEE

Time

238,154 hrs

Standards

Telcordia SR332
