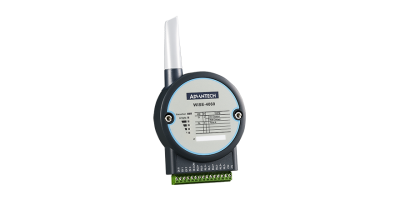

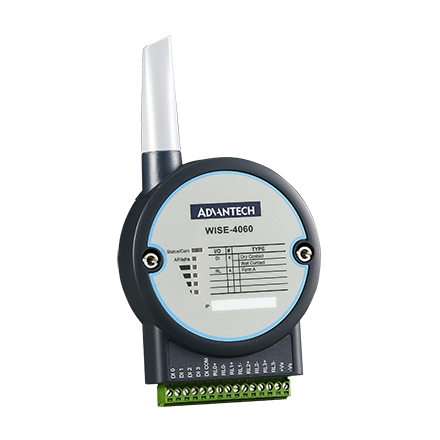

WISE-4060: 4-channel Digital Input and 4-ch Relay Output IoT Wireless I/O Module

• Insulation Resistance: 1 GΩ min. @ 500 VDC
• Output Rating (Resistive Load): 250 VAC @ 5 A, 30 VDC @ 3A
• Pulse Output: 60 operations/minute
• Relay Off Time (Typ.): 10 ms
• Relay On Time (Typ.): 5 ms
• Channels: 4-ch Power Relay
• Isolation: 3,000 Vrms

• Channels: 4-ch Dry Contact or Wet Contact
• Counter Input: 3kHz (32 bit + 1 bit overflow)
• Frequency Input: 0.1 ~ 3kHz
• Inverted DI Status: Support
• Isolation: 3,000 Vrms
• Keep/Discard Counter Value when power off: Support
• Logic Level: Dry Contact 0: Open, 1: Close to DI COM; Wet Contact 0: 0 ~ 3 VDC, 1: 10 ~ 30 VDC (3 mA min.)

• Power Consumption: 2.5 W @ 24 VDC (not including I/O modules)
• Input Range: 10 ~ 30 VDC
• Protection: Power Reversal Protection

• Antenna Connector: Reverse SMA
• Frequency Band: 2.4GHz
• IEEE Standard: IEEE 802.11b/g/n
• Network Mode: Infrastructure, Limited AP
• Outdoor Range: 110m (L.O.S.)
• Security: WPA2 Personal & Enterprise

• Operating Humidity: 20 ~ 95% RH (non-condensing)
• Operating Temperature: -25 ~ 70°C (-13~158°F)
• Storage Humidity: 0 ~ 95% RH (non-condensing)
• Storage Temperature: -40 ~ 85°C (-40 ~ 185°F)

• Certifications: CE, FCC, R&TTE, NCC, SRRC, RoHS
• Connectors: Plug-in screw terminal block (I/O and power)
• Data Logger:Up to 10,000 samples with RTC time stamp
• Dimensions (W x H x D): 80 x 148 x 25 mm
• Enclosure: PC
• LED Indicators: Status, Communication, Network Mode, Quality
• Mounting: DIN 35 rail, wall, and stack
• Protocol: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP
• Real-time Clock: Yes, with battery backup
• Watchdog Timer: System (1.6 second) & Communication (programmable)
• Web Server: RESTful Web API in JSON format, HTML5 Configuration Interface with JavaScript & CSS3
