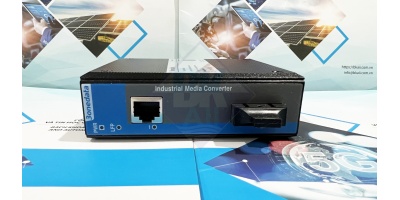

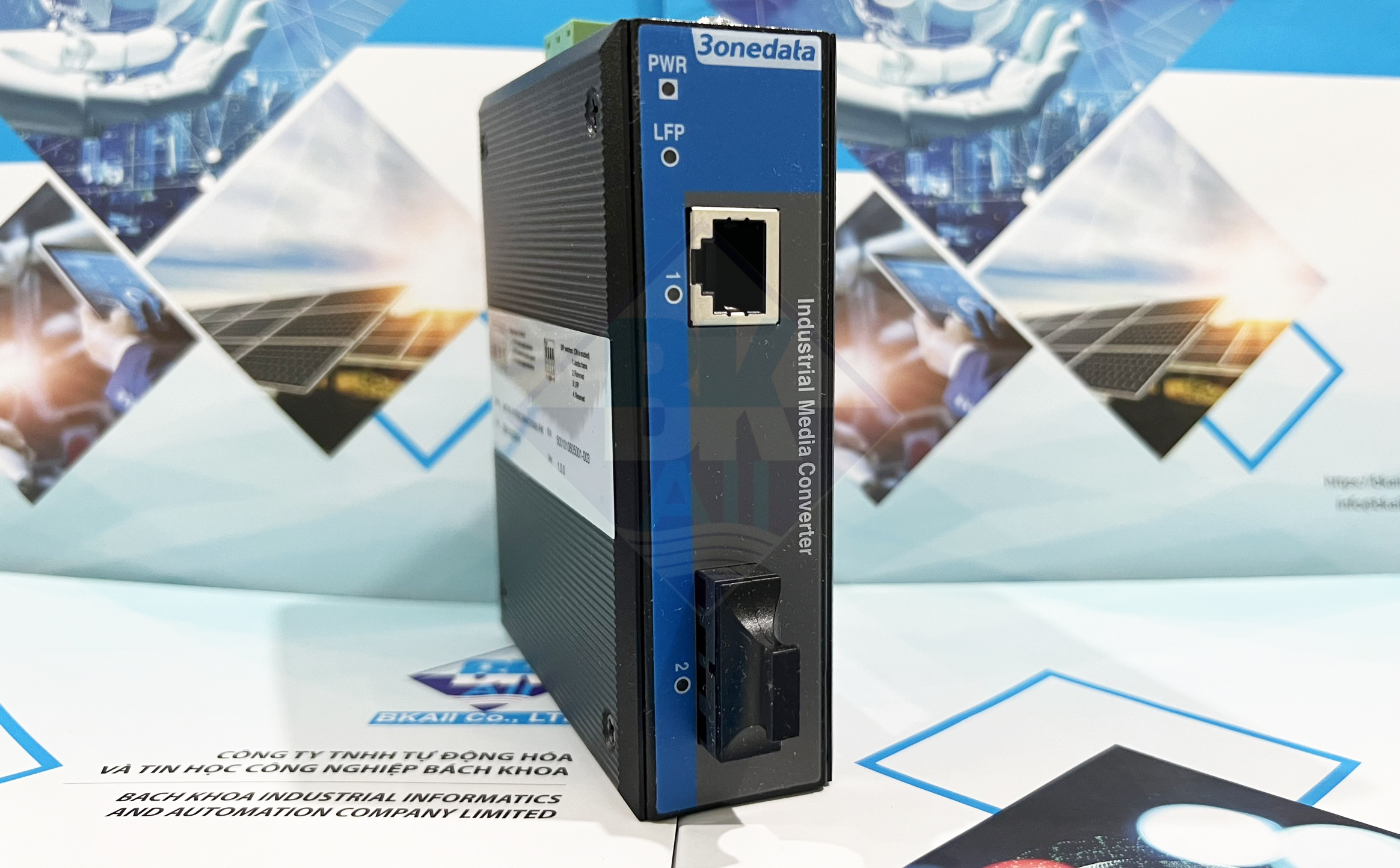

IMC100-1T1F-P48: Bộ chuyển đổi Quang điện công nghiệp 1 cổng Ethernet + 1 cổng Quang

IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100BaseFX
IEEE 802.3z for 1000Base-X

IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow Control
IEEE 802.1Q for VLAN

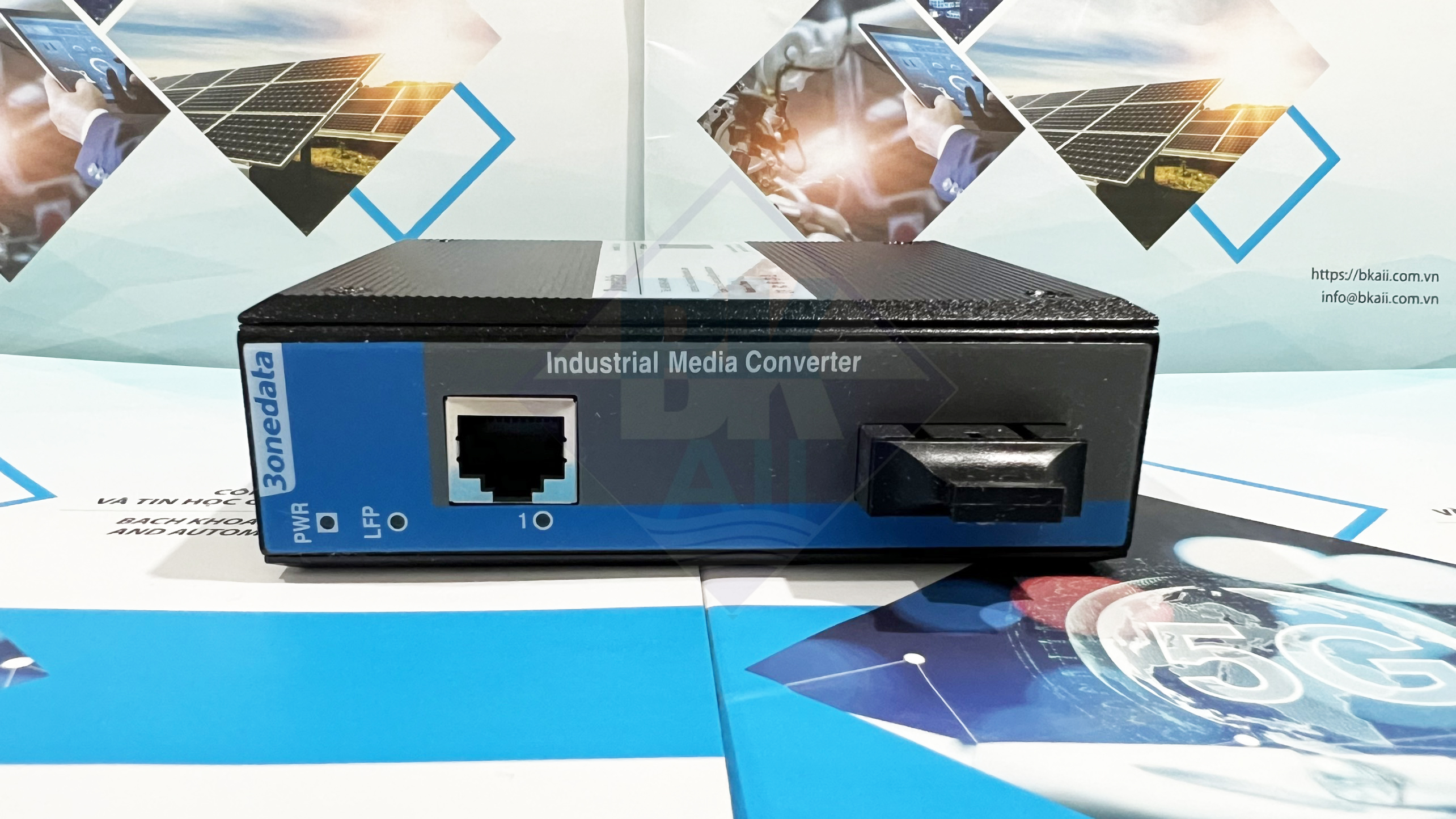

100M copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/ MDI-X Autotunning
100M fiber port: 100Base-FX, optional SC/ST/FC

Gigabit copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning

Gigabit fiber port: 1000Base-FX, optional SC/ST/FC
Gigabit SFP: 1000Base-FX SFP slot

• MAC address: 2K
• Backplane bandwidth: 1G
• Transmission mode: store and forward

Single power supply: DC/AC power supply (optional), 12~48VDC

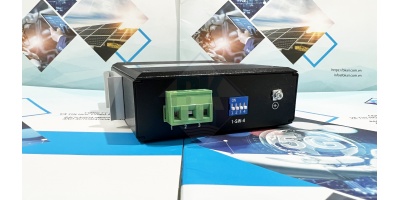

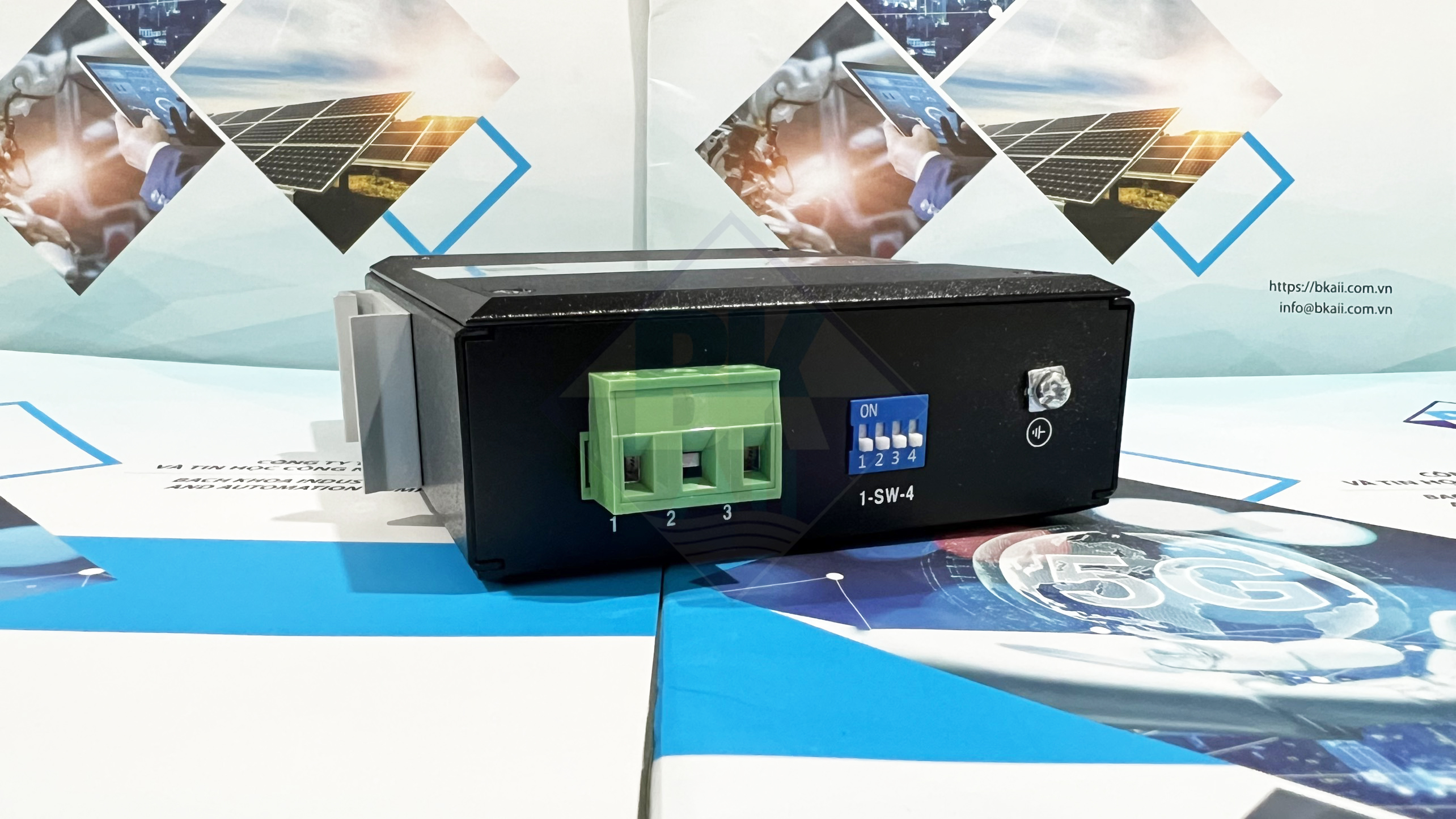

Dual power supply: 12~48VDC, 4-pin 5.08mm pitch terminal blocks

Operating temperature: -40~75℃

Storage temperature: -40~85℃

Relative humidity: 5%～95% (no condensation)

Housing: IP40 protection, metal

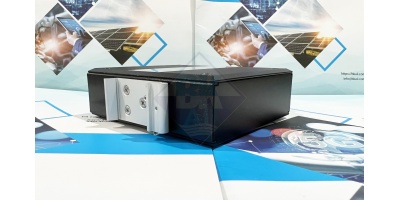

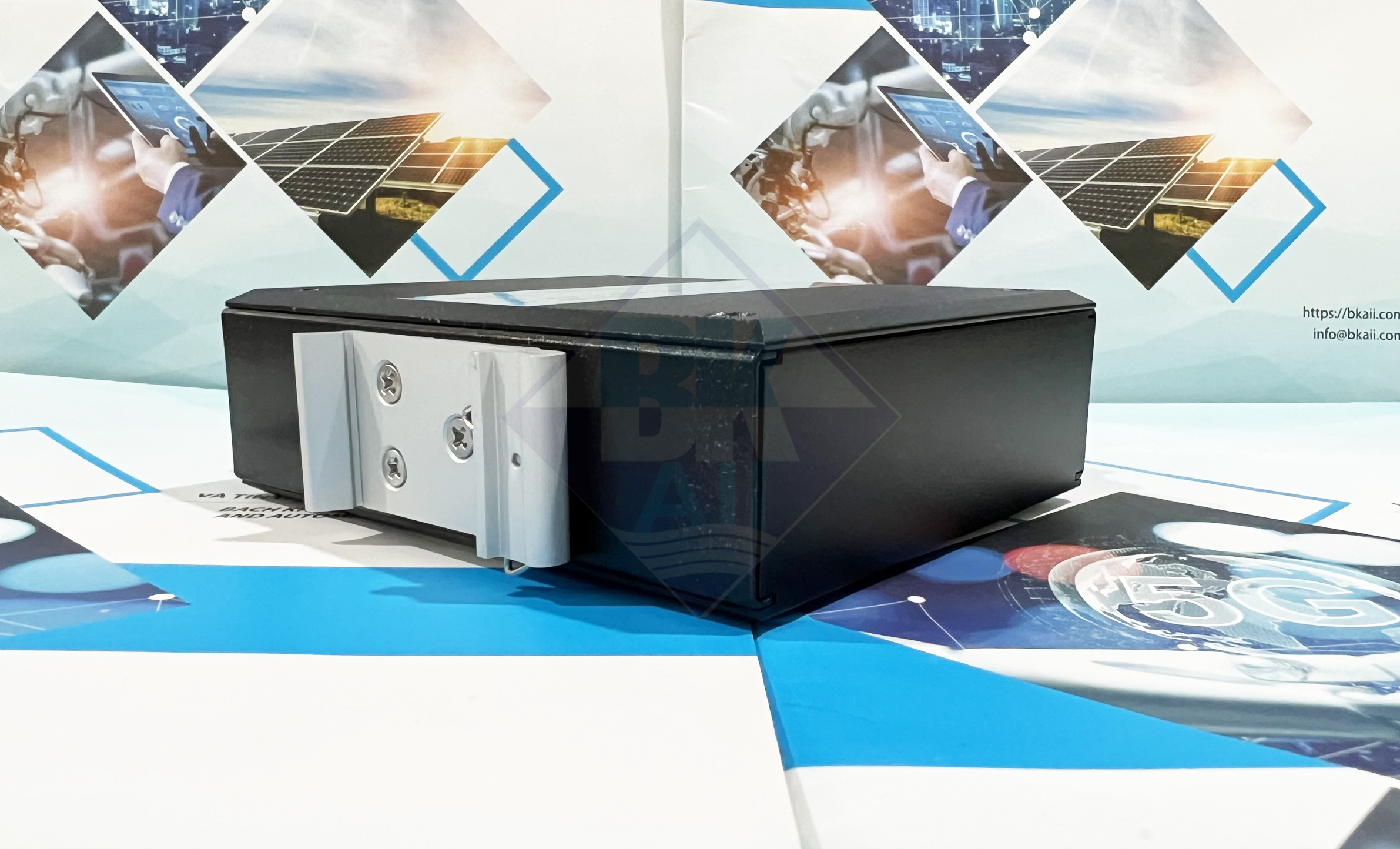

Installation: DIN-Rail mounting

Dimension (W x H x D): 35mm×110mm×95mm

Weight: 337g

IEC 61000-4-2 (ESD, electrostatic discharge), Level 4

• Air discharge:± 15kV
• Contact discharge: ±8kV

IEC 61000-4-4 (EFT, electrical fast transient), Level 4

• Power supply: ±4kV
• Signal: ±2kV

IEC61000-4-5 (Surge), Level 4

• Power supply: differential mode±2kV, common mode±4kV
• Signal: differential mode±2kV, common mode±4kV

Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
