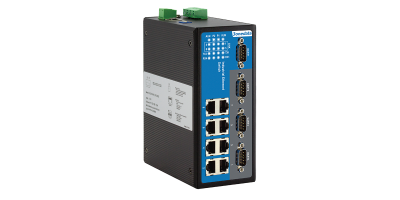

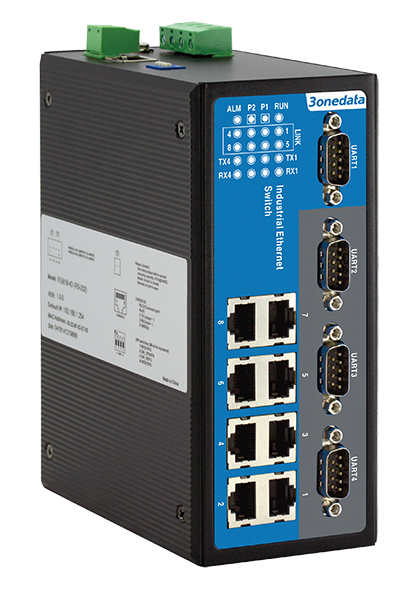

IES618-4D(RS-232): Layer 2 Managed Industrial Ethernet Switch with 4 Serial Ports

IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX and 100Base-FX

IEEE 802.3x for Flow Control

IEEE 802.1D-2004 for Spanning Tree Protocol

IEEE 802.1w for Rapid Spanning Tree Protocol

IEEE 802.1Q for VLAN

IEEE 802.1p for CoS

Copper port: 10/100Base-T(X)RJ45, Automatic Flow Control, Full/half Duplex Mode self-adaption, MDI/MDI-X Autotunning

Fiber port: 100Base-FX

Console port: CLI command line management port (RS-232), RJ45

RS-232 signal: TXD, RXD, RTS, CTS, DTR, DSR, GND

RS-422 signal: T+, T-, R+, R-, GND

RS-485 signal: D+, D-, GND

Check bit: None, Even, Odd, Space, Mark

Data bit: 5bit, 6bit, 7bit, 8bit

Baud rate: 300-115200bps

Interface type: DB9 male of RS-232

5-pin terminal blocks of RS-485/422

Load capacity: RS-485/422 supports 32 nodes polling environment (customizable 128 points)

Directional control: RS-485 adopts automatic data flow control technology

RS-232 interface protection: electrostatic protection 15kV

RS-485/422 interface protection: isolation voltage 2kV, electrostatic protection 15kV

Transmission mode: store and forward

MAC address: 2K

Packet buffer size: 1Mbit

Backplane bandwidth: 2G

Switch time delay: < 10μs

12~48VDC, 4-pin 7.62mm pitch terminal blocks, dual power supply redundancy, nonpolarity, reverse polarity protection

support built-in 4.0A overcurrent protection

Operating temperature range: -40~75℃

Storage temperature range: -40~85℃

Relative humidity: 5%～95%（no condensation）

Housing: IP40 protection, high-intensity corrugated metal

Installation: DIN-Rail or wall mounting

Dimension (W x H x D): 70mm×160mm×130mm

EMI: FCC Part 15, CISPR (EN55022) class A

EMS: IEC61000-4-2 (ESD), Level 4

IEC61000-4-3(RS), Level 3

IEC61000-4-4 (EFT), Level 4

IEC61000-4-5 (Surge), Level 4

IEC61000-4-6(CS), Level 3

IEC61000-4-8(PFM), Level 5

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IES 60068-2-6
