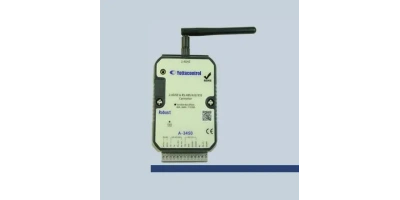

A-3450: Wireless Data Converter của hãng Yottacontrol - Taiwan hiện đang được BKAII phân phối rộng rãi tại thị trường Việt Nam. A-3450 được thiết kế theo tiêu chuẩn công nghiệp, nhỏ gọn, dễ dàng lấy được tín hiệu về PLC, máy tính, vi xử lý, máy tính nhúng,... Sản phẩm hiện đang được sử dụng trong các bài toán M2M, IoT của các lĩnh vực: Điện lực, khí tượng thủy văn, giao thông thông minh, hệ thống kiểm soát an ninh, …
Tính năng
- Sight distance credible transmission distance is up to 100m
- Offer byte-oriented transparent data adaptable to various user protocols
- Can be applied to manifold communication combination methods like point to point, point to multi-point and multi-point to point.
- Automatically filtrate fake data generated in air, can transmit longer data frames.
- High efficiency forward error correction channel coding technology, anti-jamming data.
- 4GHz ISM frequency range, need not apply for frequency pint.
- Equipped with 50 ohm SMA antenna pedestal, offer manifold antenna options.
- Meanwhile offer RS-232/RS-485/RS-422 level interface
- Effective speed 300~115200bps.
- Working temperature is -20°C~+75°C
Thông tin kỹ thuật của sản phẩm:
Operation Voltage: 10~30VDC/24VAC
Supports Max device: Maximum of 256 devices (Without repeater)
Frequency range: 2400 – 2483.5 MHz
Operation temperature: -20°C to +75 °C
Storage temperature: -25 °C to +80 °C
Installation: 35 mm DIN rail or Flush mounting
Connection: Removable 13-pin Terminal Block ( For RS-422 / 485 / 232 )
RF Module's Groups: 0~65535
RF Module's ID:0~65535
RF Module's TX Power:0~6
RF Module's Channel: 0~200
RF Module's Data Rate: 250K
Dimension (W x H x D mm): 76.4*118.2*40.7 mm
