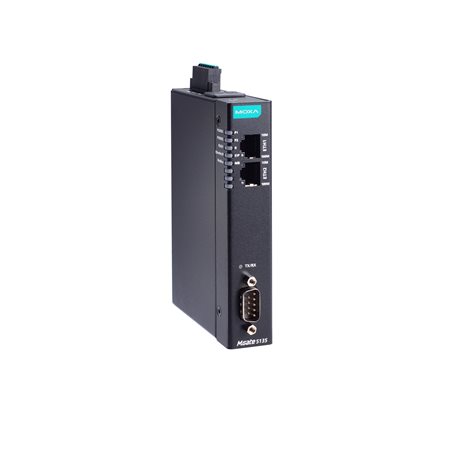

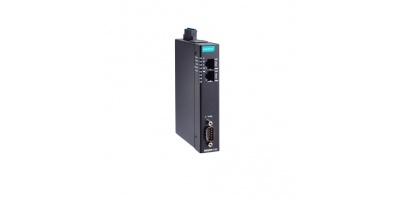

MGate 5135: 1-port Modbus RTU/ASCII/TCP-to-EtherNet/IP gateways, -10 to 60°C operating temperature

Giá: Liên hệ

MGate 5135: 1-port Modbus RTU/ASCII/TCP-to-EtherNet/IP gateways, -10 to 60°C operating temperature hãng MOXA-Taiwan hiện đang được BKAII phân phối rộng rãi tại thị trường Việt Nam. MGate 5135 được thiết kế theo tiêu chuẩn công nghiệp, nhỏ gọn, dễ dàng lấy được tín hiệu về PLC, máy tính, vi xử lý, máy tính nhúng,... Sản phẩm hiện đang được sử dụng trong các bài toán M2M, IoT của các lĩnh vực: Điện lực, khí tượng thủy văn, giao thông thông minh,…

Hướng dẫn cài đặt nhanh Moxa Technologies MGate 5135/5435 Series

Tính năng của sản phẩm:

Protocol conversion between Modbus and EtherNet/IP
Supports EtherNet/IP adapter
Supports Modbus RTU/ASCII/TCP client
Flexible deployment with Ethernet cascading and dual subnet
Embedded traffic monitoring/diagnostic information for easy troubleshooting
Easy device configuration via a web-based console
microSD card for configuration backup/duplication
Supports dual redundant DC power inputs and 1 relay output
-40 to 75°C wide operating temperature models available
Serial port with 2 kV isolation protection
Developed according to IEC 62443-4-2 with Secure Boot

Thông số kỹ thuật của sản phẩm:

Ethernet Interface	10/100BaseT(X) Ports (RJ45 connector)	2 Auto MDI/MDI-X connection
Ethernet Interface	Magnetic Isolation Protection	1.5 kV (built-in)
Ethernet Software Features	Industrial Protocols	Modbus TCP Client, EtherNet/IP Adapter
	Configuration Options	Web Console (HTTPS), Device Search Utility (DSU)
	Management	ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, UDP
	MIB	RFC1213, RFC1317
	Time Management	NTP Client
Security Functions	Authentication	Local database
	Encryption	HTTPS, AES-128, AES-256, SHA-256
	Security Protocols	SNMPv3 SNMPv2c Trap HTTPS (TLS 1.3)
Serial Interface	No. of Ports	1
	Connector	DB9 male
	Serial Standards	RS-232/422/485
	Baudrate	300 bps to 921.6 kbps
	Data Bits	7, 8
	Parity	None, Even, Odd, Space, Mark
	Stop Bits	1, 2
	Flow Control	RTS Toggle (RS-232 only), RTS/CTS
	RS-485 Data Direction Control	ADDC (automatic data direction control)
	Pull High/Low Resistor for RS-485	1 kilo-ohm, 150 kilo-ohms software configurable
	Terminator for RS-485	120 ohms software configurable
	Isolation	2 kV (built-in)
Serial Signals	RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
	RS-422	Tx+, Tx-, Rx+, Rx-, GND
	RS-485-2w	Data+, Data-, GND
	RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND
Serial Software Features	Industrial Protocols	Modbus RTU/ASCII Client
Modbus RTU/ASCII	Mode	Client
	Functions Supported	1, 2, 3, 4, 5, 6, 15, 16, 23
	Max. No. of Server Connections	31
	Max. No. of Commands	128 per serial port
Modbus TCP	Mode	Client
	Functions Supported	1, 2, 3, 4, 5, 6, 15, 16, 23
	Max. No. of Server Connections	32
	Max. No. of Commands	128
	Total Output Data Size	2048 bytes
	Total Input Data Size	2048 bytes
EtherNet/IP	Mode	Adapter
	CIP Objects Supported	Identity, Message Router, Assembly, Connection Manager, TCP/IP interface, Ethernet link, Port
	Max. No. of Scanner Connections	4 (read/write)
	Input Data Size Output Data Size	496 bytes/connection (total: 1984 bytes) bytes 496 bytes/connection (total: 1984 bytes) bytes
Memory	microSD Slot	Up to 32 GB (SD 2.0 compatible)
Power Parameters	Input Voltage	12 to 48 VDC
	Input Current	455 mA (max)
	Power Connector	Spring-type Euroblock terminal
Relays	Contact Current Rating	Resistive load: 2 A @ 30 VDC
Physical Characteristics	Housing	Metal
	IP Rating	IP30
	Dimensions	25 x 90 x 130 mm (0.98 x 3.54 x 5.1 in)
	Weight	294 g (0.65 lb)
Environmental Limits	Operating Temperature	-10 to 60°C (14 to 140°F)
	Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
	Ambient Relative Humidity	5 to 95% (non-condensing)
Standards and Certifications	Safety	EN 61010-2-201, UL 61010-2-201
	EMC	EN 61000-6-2/-6-4
	EMI	FCC Part 15B Class A
	EMS	IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 PFMF
	Freefall	IEC 60068-2-31
	Shock	IEC 60068-2-27
	Vibration	IEC 60068-2-6, IEC 60068-2-64

"BKAII - Thiết bị truyền thông TỐT nhất với giá CẠNH TRANH nhất!"

Downloads moxa-mgate-5135-5435-series-datasheet-v1-0.pdf
