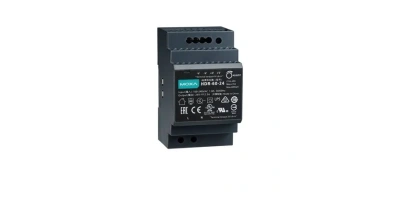

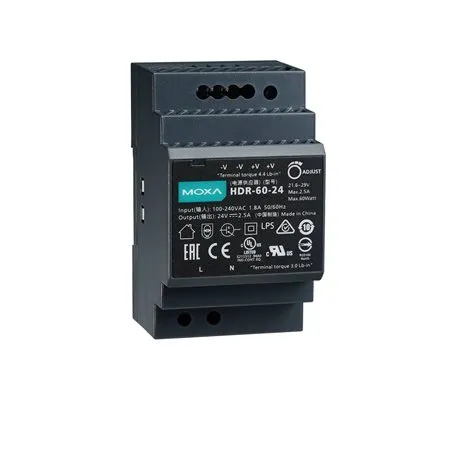

HDR-60-24: 60 W/2.5 A DIN-rail 24 VDC power supply, universal 85 to 264 VAC or 120 to 370 VDC input voltage, -30 to 70°C operating temperature

Wattage

60 W

Voltage

24 VDC

Current Rating

0 to 2.5 A

Ripple and Noise

150 mVp-p

Voltage Adjustment Range

21.6 to 29 VDC

Setup/Rise Time at Full Load

500 ms, 50 ms at 230 VAC

500 ms, 50 ms at 115 VAC

Typical Hold Up Time at Full Load

30 ms at 230 VAC

12 ms at 115 VAC

Voltage Range

100 to 240 VAC (50 to 60 Hz)

120 to 370 VDC

Typical Efficiency

90%

Typical Current

0.8 A @ 230 VAC, 1.2 A @ 115 VAC

Inrush Current (cold start)

60 A @ 230 VAC, 30 A @ 115 VAC

Rated Output Power

105 to 160%

Protection Type

Constant current limiting, recovers automatically after fault condition is removed

Overvoltage Range

30 to 36 V

Protection Type

Shut down operating voltage, repower on to recover

Housing

Plastic

Dimensions

52.5 x 90 x 54.5 mm (2.07 x 3.54 x 2.15 in)

Weight

230 g (0.5 lb)

Operating Temperature

-30 to 70°C (-22 to 158°F)

Max. Operating Temperature at Full Load

45°C (113°F)

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

20 to 90% (non-condensing)

Safety

UL 508

EN 62368-1

UL 62368-1

IEC 62368-1

EMC

EN 55032/35

EN 61000-3-2 Class A EN 61000-3-3

EN IEC 61204-3

EN IEC 61000-6-2

EMS

IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV

IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m

IEC 61000-4-4 EFT: Power: 2 kV

IEC 61000-4-5 Surge: Power: 4 kV

IEC 61000-4-6 CS: 0.15 kHz to 80 MHz: 10 Vrms

IEC 61000-4-8 PFMF: 30 A/m

IEC 61000-4-11

Time

927,560 hrs

Standards

MIL-HDBK-217F
