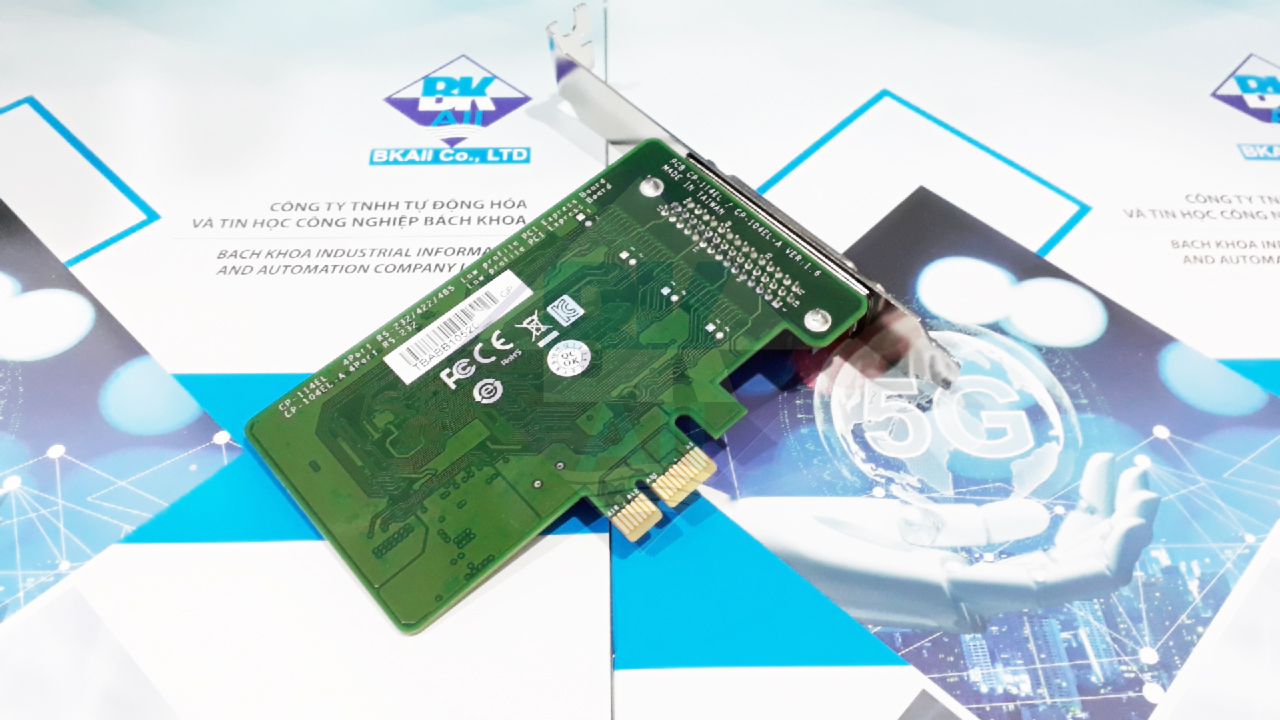

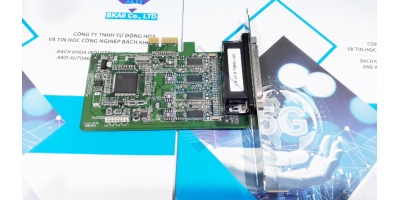

CP-104EL-A: 4-port RS-232 PCI Express serial board

16C550C compatible

Bus

Data Bits

Stop Bits

Max. No. of Boards per PC

PCI Express 1.0

5, 6, 7, 8

1, 1.5, 2

8

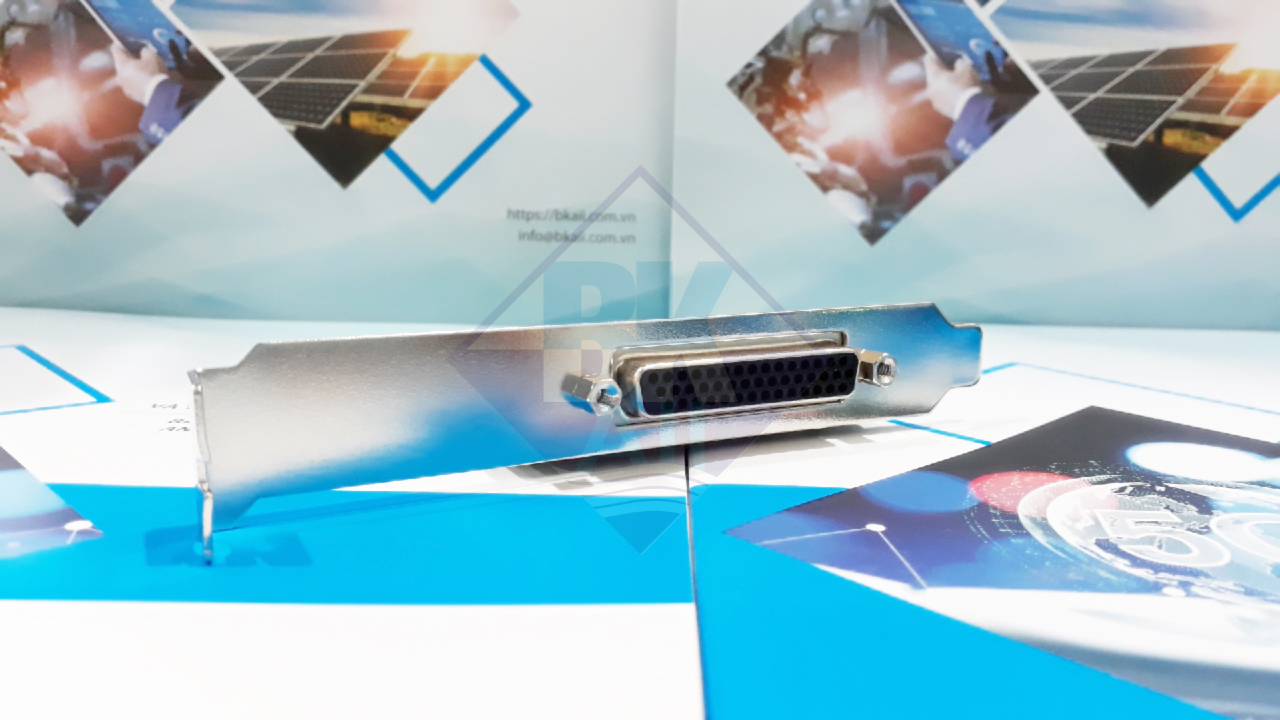

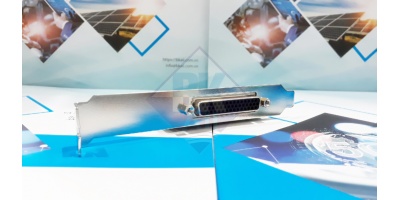

DB44 female

Baudrate

Serial Standards

Flow Control

50 bps to 921.6 kbps (supports non-standard baudrates)

RS-232

None, RTS/CTS, XON/XOFF

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

QNX 6, Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6

805 mA @ 3.3 VDC

-20 to 85°C (-4 to 185°F)

EN 55032/24

CISPR 32, FCC Part 15B Class B

IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
