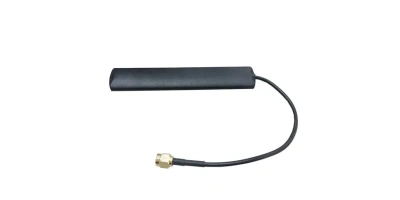

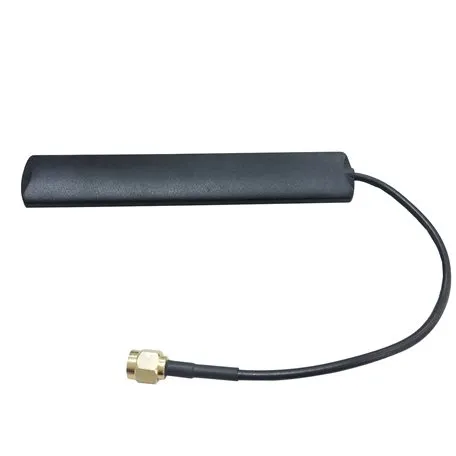

ANT-5G-OSM-03-1m: 3 dBi LTE/5G NR omnidirectional adhesive antenna, 1 m cable

Frequency

617 to 960 MHz

1452 to 2690 MHz

3300 to 5850 MHz

5850 to 7150 MHz

Antenna Type

Omni-directional

Typical Antenna Gain

1.5 dBi @ 617 to 960 MHz

4 dBi @ 1452 to 2690 MHz

4 dBi @ 3300 to 5850 MHz

4 dBi @ 5850 to 7150 MHz

Connector

SMA (male)

Impedance

50 ohms

Polarization

Vertical Linear

V.S.W.R.

≤ 2.5 @ 617 to 960 MHz

≤ 2.0 @ 1452 to 2690 MHz

≤ 2.0 @ 3300 to 5850 MHz

≤ 2.5 @ 5850 to 7150 MHz

Weight

24 g (0.05 lb)

Dimensions

110 x 20 x 5.4 mm (4.33 x 0.79 x 0.21 in)

Radome Color

Black

Radome Material

Plastic

Cable

RG-174

Cable Length

ANT-5G-OSM-03-1m: 1 m

ANT-5G-OSM-03-1.5m: 1.5 m

ANT-5G-OSM-03-2m: 2 m

Installation

Adhesive mount

Operating Temperature

-30 to 70°C (-22 to 158°F)

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (30°C, non-condensing)
