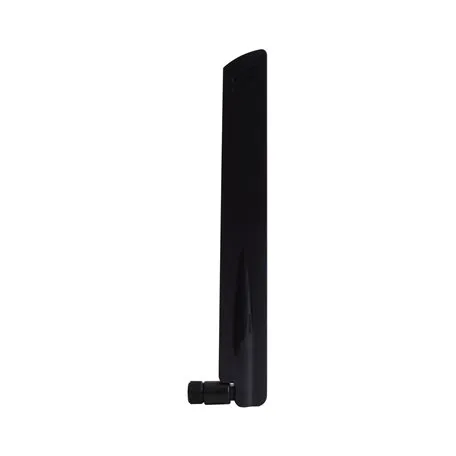

ANT-5G-ASM-07: 7 dBi, omnidirectional rubber-duck antenna for GSM, UMTS, LTE, and 5G NR applications

Frequency

617 to 960, 1710 to 2170, 2300 to 2690, 3300 to 3800, 4200 to 4700, 5000 to 5925 MHz

Antenna Type

Omni-directional

Typical Antenna Gain

1.29 dBi @ 617 to 698 MHz

2.00 dBi @ 698 to 824 MHz

1.29 dBi @ 824 to 960 MHz

3.77 dBi @ 1710 to 1880 MHz

4.55 dBi @ 1850 to 1990 MHz

5.49 dBi @ 1920 to 2170 MHz

5.21 dBi @ 2300 to 2690 MHz

5.14 dBi @ 3300 to 3800 MHz

6.57 dBi @ 4200 to 4700 MHz

7.72 dBi @ 5000 to 5925 MHz

Connector

SMA (male)

Impedance

50 ohms

Polarization

Linear, Vertical

HPBW/Horizontal

360°

V.S.W.R.

< 7.5 @ 617 to 698 MHz

< 4.5 @ 698 to 824 MHz

< 4.4 @ 824 to 960 MHz

< 1.9 @ 1710 to 1880 MHz

< 2.7 @ 1850 to 1990 MHz

< 4.1 @ 1920 to 2170 MHz

< 2.1 @ 2300 to 2690 MHz

< 2.5 @ 3300 to 3800 MHz

< 1.9 @ 4200 to 4700 MHz

< 2.0 @ 5000 to 5925 MHz

Weight

35.8 g (0.08 lb)

Length

220 mm (8.66 in)

Radome Color

Black

Radome Material

Plastic

Installation

Straight mount

Operating Temperature

-40 to 85°C (-40 to 185°F)

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (30°C, non-condensing)
