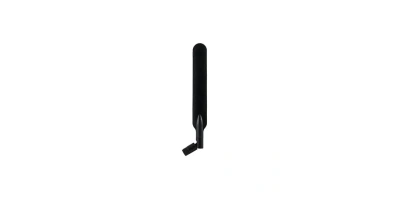

ANT-5G-ASM-02: 2 dBi LTE/5G NR dipole antennas with SMA (male) connector

Frequency

617 to 960 MHz

1452 to 1575.412 MHz

1710 to 2690 MHz

3300 to 4200 MHz

4400 to 5000 MHz

5150 to 7150 MHz

Antenna Type

Omni-directional

Typical Antenna Gain

1 dBi @ 617 to 960 MHz

2.5 dBi @ 1452 to 1575.412 MHz

2.5 dBi @ 1710 to 2690 MHz

2.5 dBi @ 3300 to 4200 MHz

2.5 dBi @ 4400 to 5000 MHz

2.5 dBi @ 5150 to 7150 MHz

Connector

SMA (male)

Impedance

50 ohms

Polarization

Vertical Linear

HPBW/Horizontal

360°

V.S.W.R.

≤ 3 @ 617 to 960 MHz

≤ 3 @ 1452 to 1575.412 MHz

≤ 3 @ 1710 to 2690 MHz

≤ 3 @ 3300 to 4200 MHz

≤ 3 @ 4400 to 5000 MHz

≤ 3.5 @ 5150 to 7150 MHz

Weight

30 g (0.07 lb)

Length

205 mm (8.07 in)

Radome Color

Black

Radome Material

Plastic

Installation

Straight mount

Operating Temperature

-20 to 65°C (-4 to 149°F)

Storage Temperature (package included)

-30 to 70°C (-22 to 158°F)

Ambient Relative Humidity

5 to 95% (30°C, non-condensing)
